16 Special Functions
16.6 GC Configuration
241
GC-2014
16.6.7 Parameter Configuration
Signals are output from four gas chromatograph channels.
To assign detector channels, see “13 Detector”.
This section describes the detector signal configuration as well as the configuration of
various other parameters which can be monitored on the screen.
16.6.7.1 Screen description
Select “6. GC CONFIGURATION” from the [FUNC] key screen, and then select “5.
SIGNAL SETTING”, to display the signal settings screen shown in Fig. 16.6.6.
This screen allows you to adjust the GC signal parameters.
16.6.7.2 PF menu

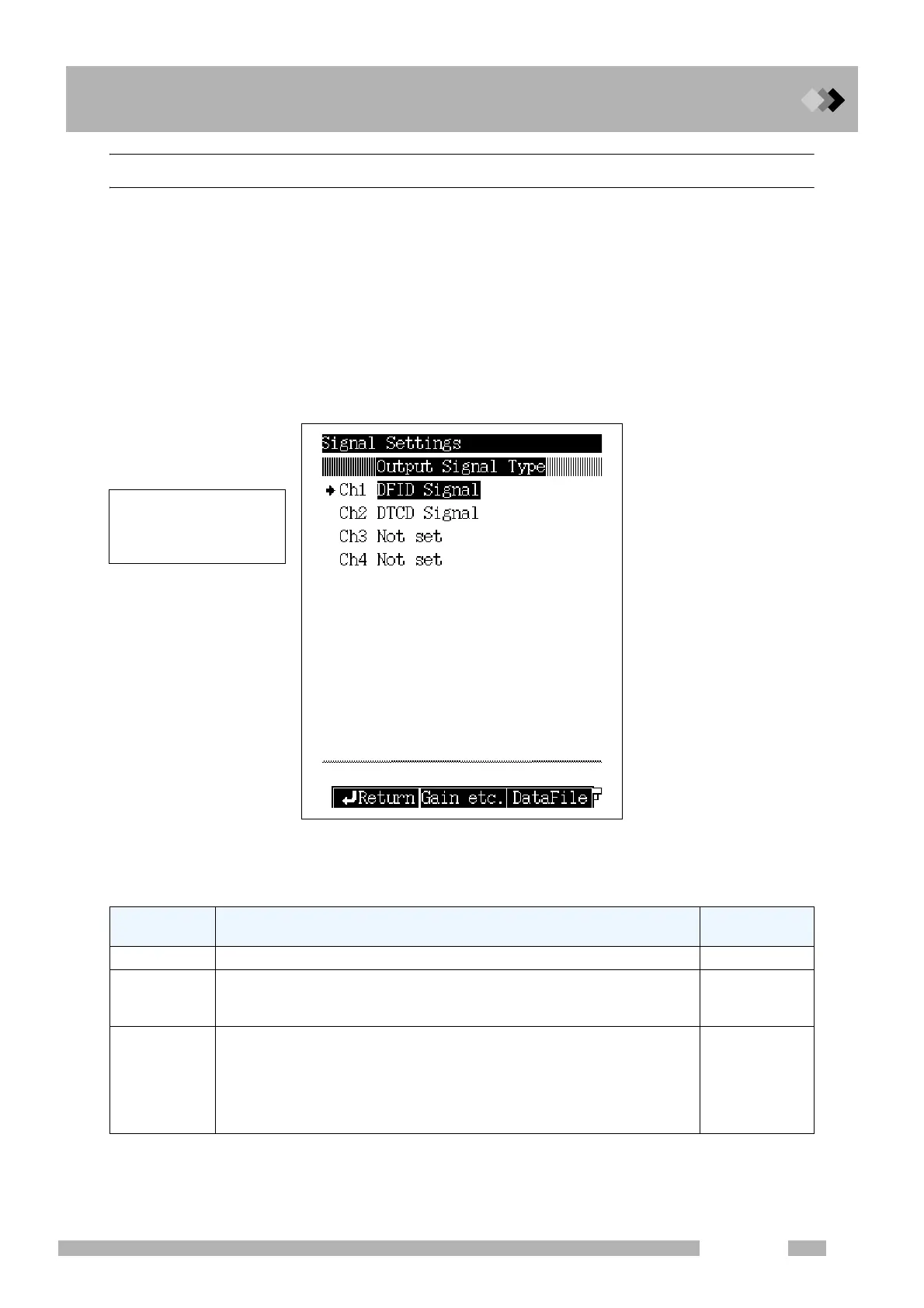

Fig. 16.6.6 Signal setup screen
PF menu Description
Reference
section
Gain etc. Sets the signal gain and offset for each detector. 16.6.7.6
Data File
Sets the format of digital signals.
When GC is linked to a personal computer, this item is automatically set to
“PC”. When link is ended, this item automatically reverts to “Chromatopac”.
――
Det Sig
Sets signal output channels for all detectors.
The signal out put channels can also be specified for installed detectors
which have not been configured in an analytical line.
If two or more detectors are set to one channel, data can be output to
either channel without switching the output signal cable simply by changing
the analytical line configuration.
――
Use the cursor to select the
desired channel.
Press [ENTER] to open that
channel’s setup screen.
To Next Page
