Shimadzu GC-2014 Instruction Manual

16 Special Functions
16.6 GC Configuration
242
GC-2014
16.6.7.3 Selecting the detector signals
Select the signal type from the main screen, and then press “DET SIG” to display the
screen shown in Fig. 16.6.7.
Select the type of signal to output. For a description of the settings, refer to “13
Detector”.
16.6.7.4 Selecting the temperature control signal
Select the signal type from the main screen, and then press “TEMP” to display the
screen shown in Fig. 16.6.8.
Select the temperature control signal to be output.

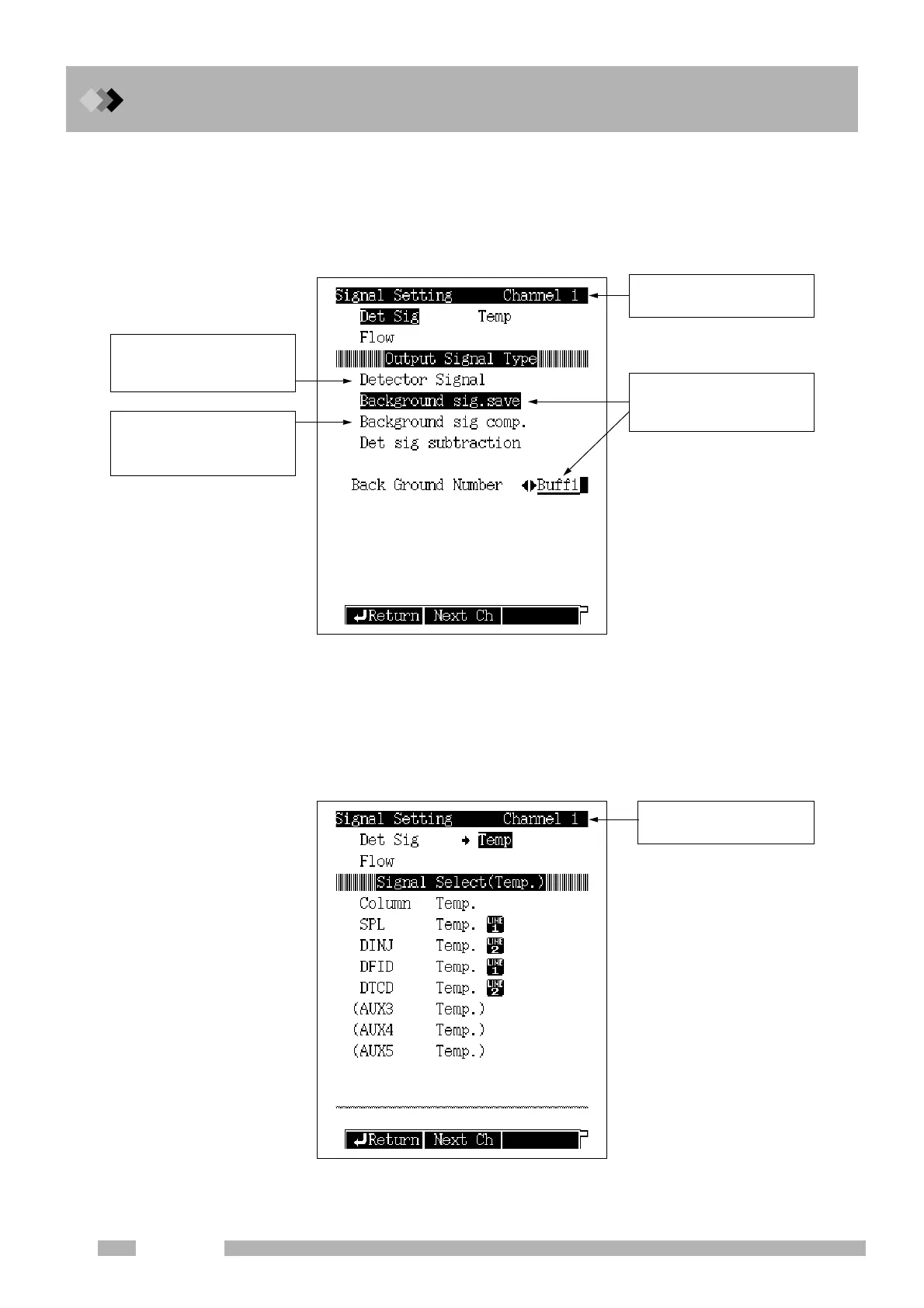

Fig. 16.6.7 Detector signal setup screen
Fig. 16.6.8 Temperature control signal setup screen
For detector signal subtraction,
also specify the channels (1-4)
for the subtraction.
For background signal com-
pensation, also specify the
background signal No.(1 or 2).
The currently set channel
No. is displayed.
The currently set channel No.
is displayed.
When saving the background
signal, specify which signal (1
or 2) should be saved.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
