Shimadzu GC-2014 Instruction Manual

209
15 Optional Devices
15.5
15.
GC-2014
15.5Setting the CRG Parameters
The CRG (option) allows temperatures below room temperature to be set. The CRG can be
connected to the column oven or the INJ2.
15.5.1 Screen description
Press the [OPTION] key from the [OPTION] key main screen, or press [NEXT] (PF menu)
until the CRG screen, shown in Fig.15.3.1, appears.
The screen toggles among AOC parameters → setting AUX temperature → AUX APC →
AUX AMC → CRG screens in this order.
If the CRG is turned off after a negative temperature valve has been set, the temperature cannot be
achieved, and the GC cannnot become ready. When turning off the CRG, ensure that the temperature
valve is set properly.

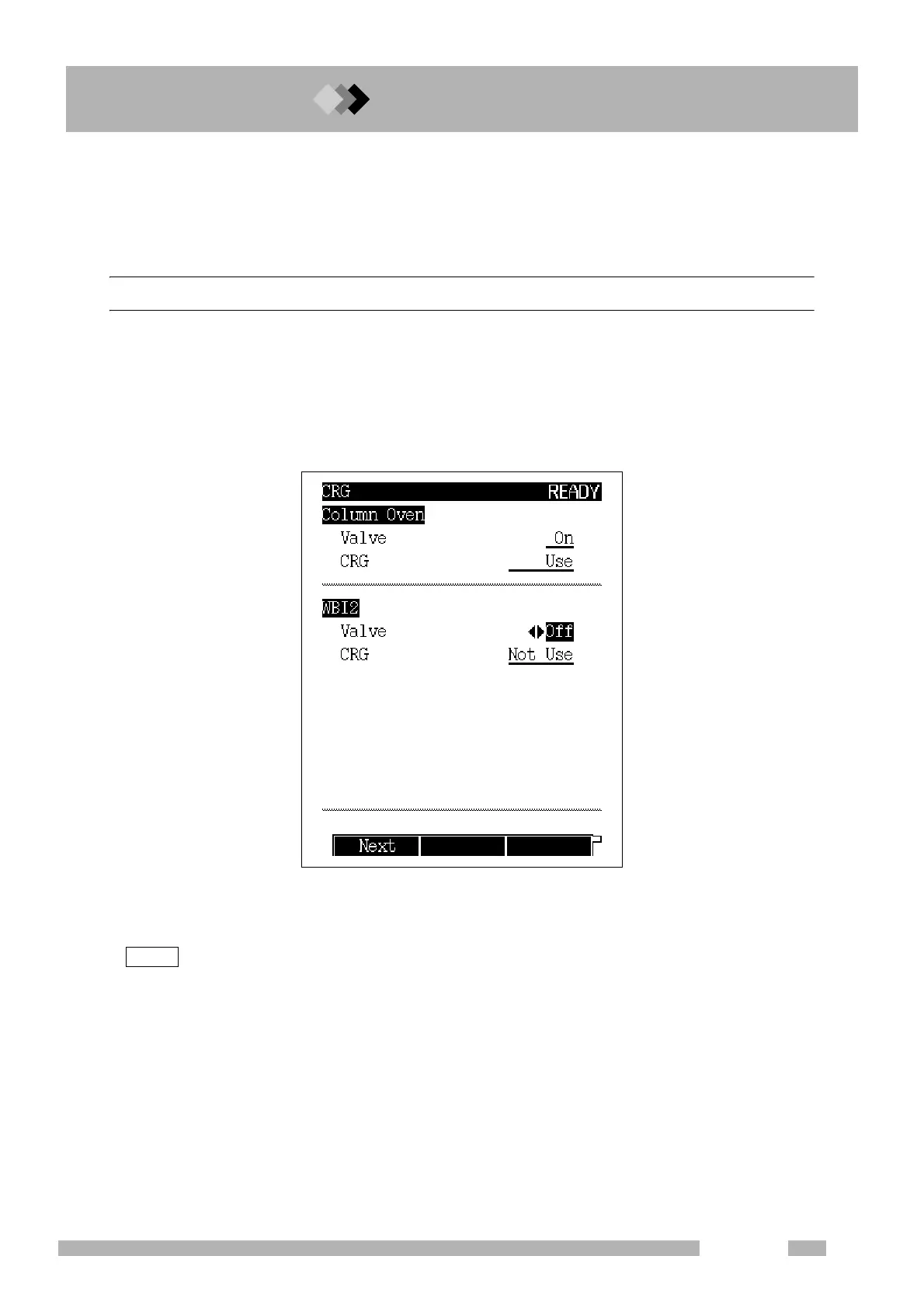

Fig. 15.5.1 CRG main screen
NOTE

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
