Shimadzu GC-2014 Instruction Manual

12 Injection Port
12.2 Split/Splitless Injection System
142
GC-2014
12.2.8.2 Parameter list
FLOW RATE
Range: Refer to Fig. 12.2.15, Default: 3.0 ml/min
Sets the septum purge flow rate.
12.2.8.3 PF menu

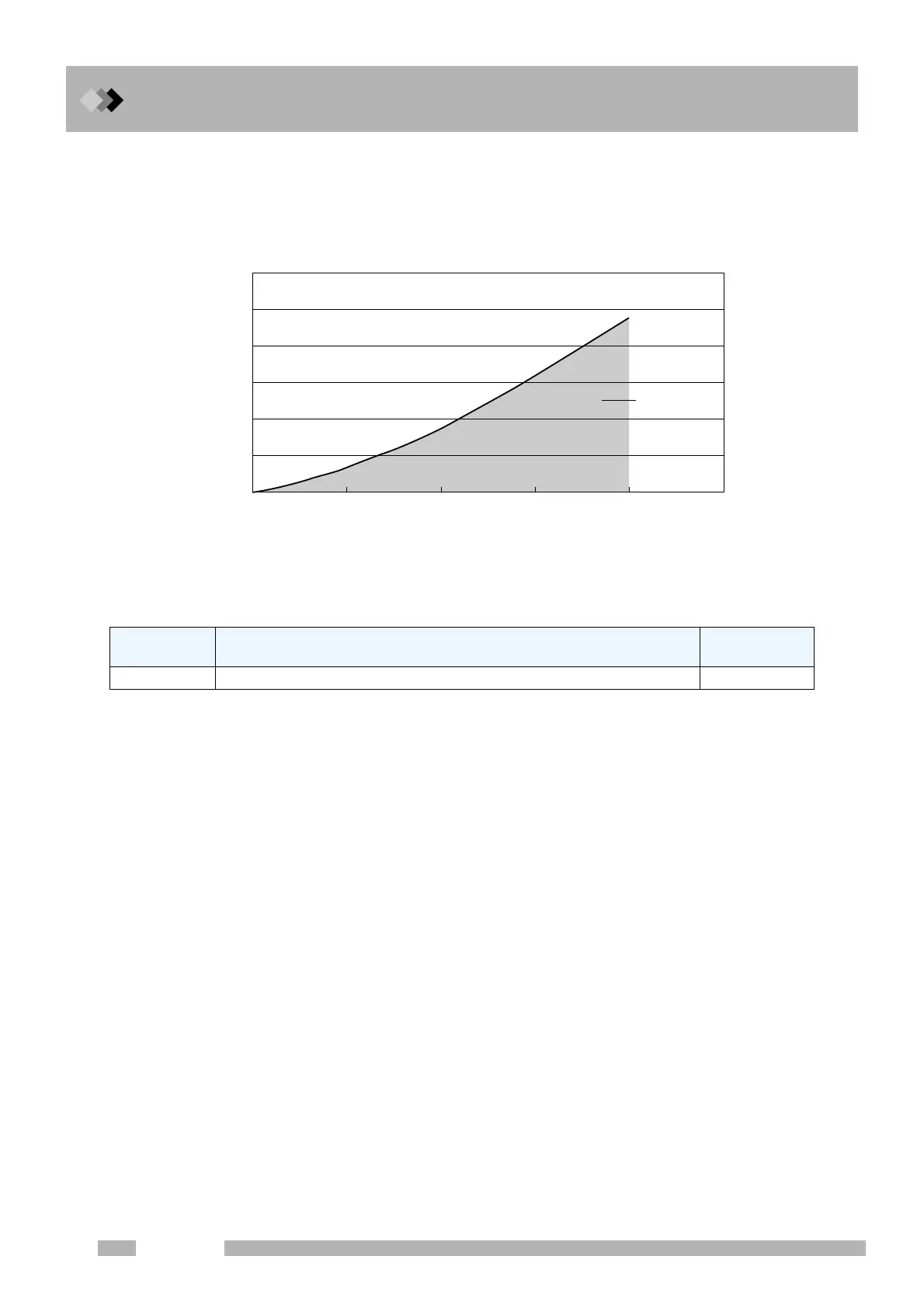

Fig. 12.2.15 Available setting range for the purge flow rate
PF menu Description
Reference
section
On/Off Set to “On” when the septum purge flow rate is applied
――
0
0
50
100
150
200
250
300
100 200 300
400 500
Column inlet pressure (kPa)
Setting range
Purge flow rate (ml/min)

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
