Shimadzu GC-2014 Instruction Manual

8 Setting the Analytical Parameters and File Management
8.3 Specifying the Analytical Flow Line Components ([Line Config])
100
GC-2014
In the following examples, the PFPD (packed column flame photometric detector) is installed
as an additional detector.
(3) To use a SPL and FPD for one line and a DINJ and DFID for another line
Select the SPL and FID for Line 1 and the DINJ and DFID for Line 2.
(4) When using a single column connected to two detectors:

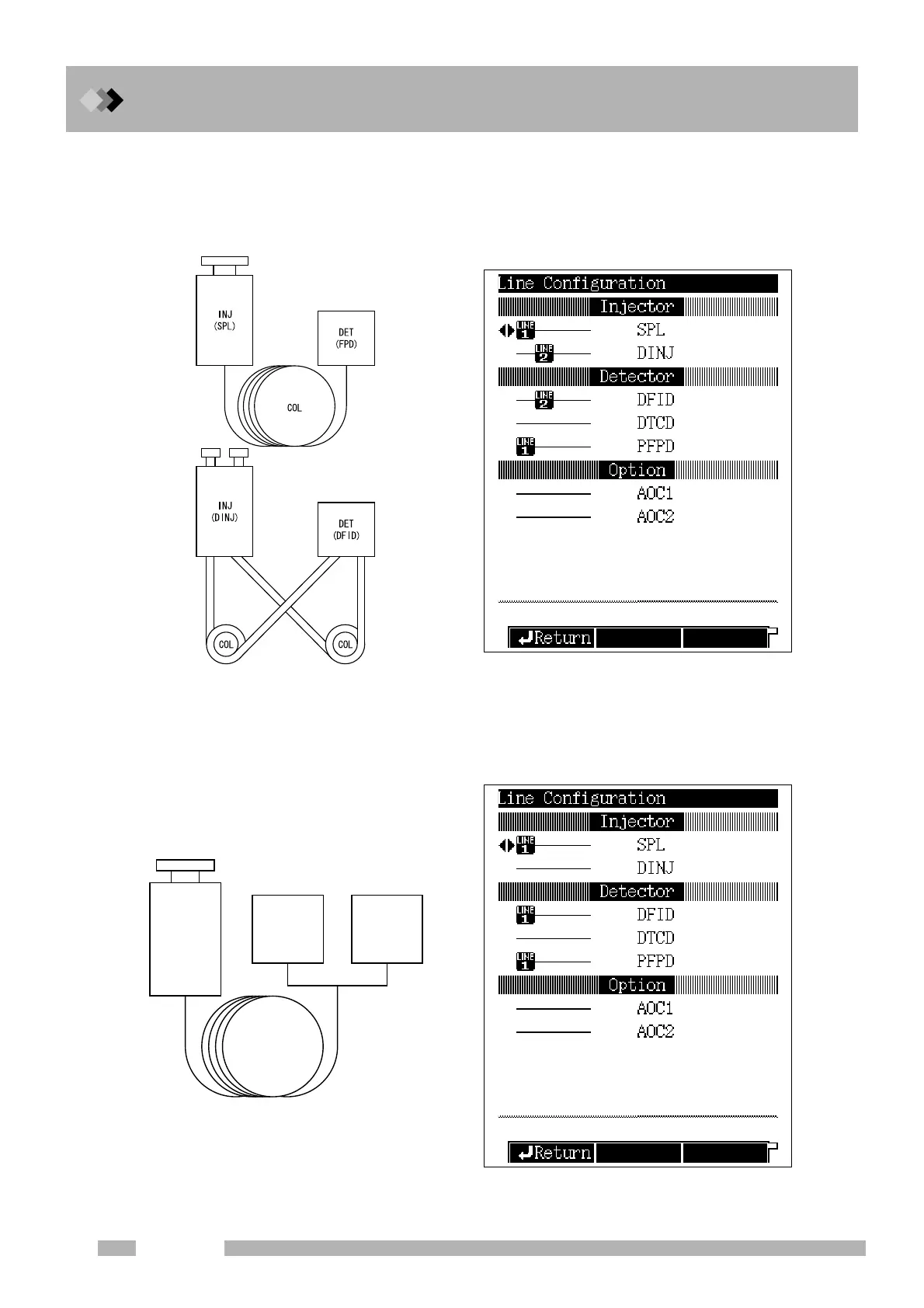

Fig. 8.3.4 Line configuration (Example 3)
Fig. 8.3.5 Line configuration (Example 4)
INJ
DET DET
COL

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
