Shimadzu GC-2014 Instruction Manual

8 Setting the Analytical Parameters and File Management
8.3 Specifying the Analytical Flow Line Components ([Line Config])
99
GC-2014
Q Line configuration examples
SPL (split/splitless injection port) and DINJ (dual packed INJ) are installed as the injection
port. DFID (dual hydrogen flame ionization detector) and DTCD (thermal conductivity
detector) are installed as the detector.
(1) To use only a SPL and FID
Select the SPL and DFID for Line 1. In this case, only the temperature of the SPL and
DFID will be controlled. Carrier gas (including detector gas if APC is used for detector
gas) will be supplied.
(2) To use only a DINJ and DFID
Select the DINJ and DFID for Line 1. Two columns will make one line.

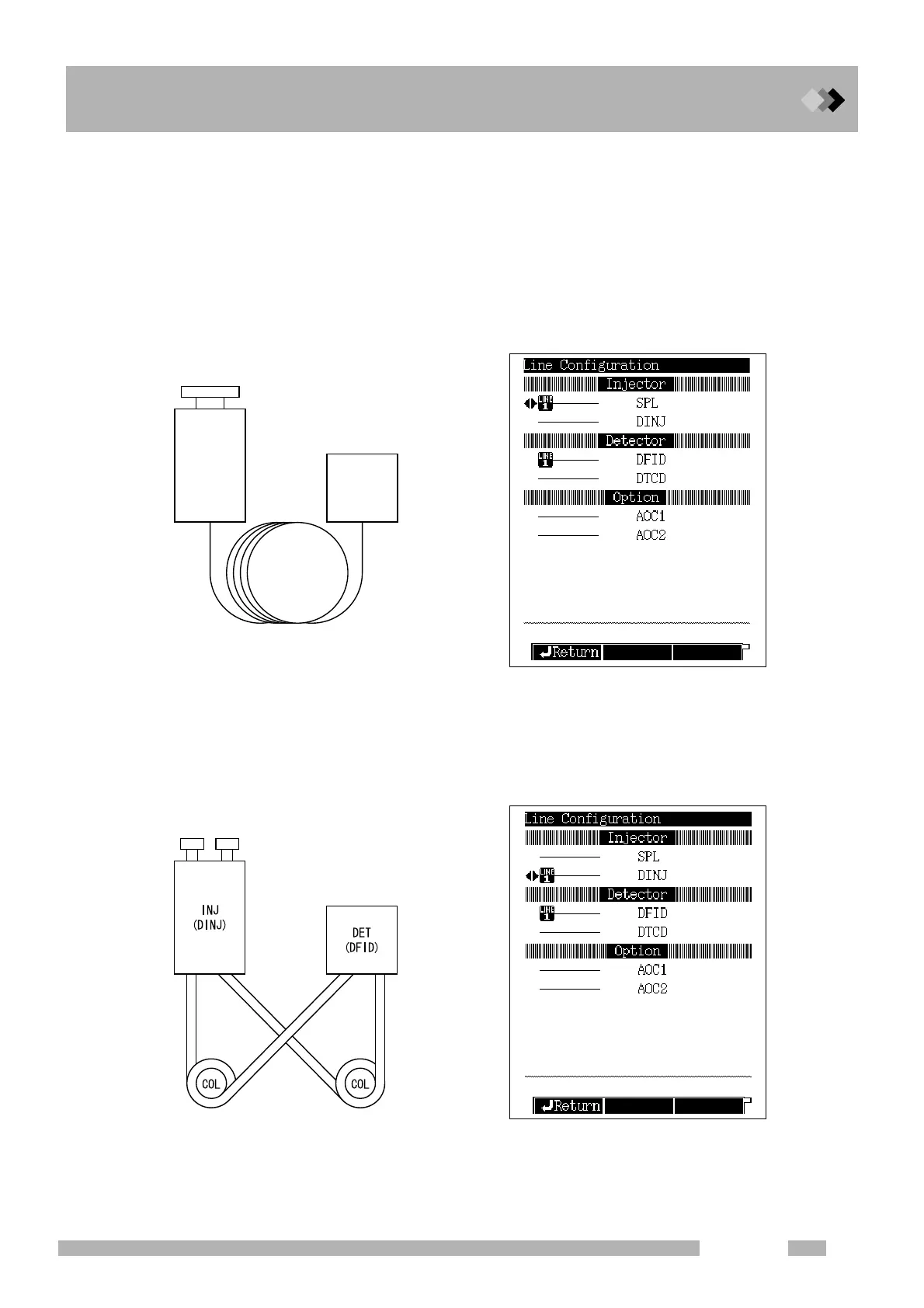

Fig. 8.3.2 Line configuration (Example 1)
Fig. 8.3.3 Line configuration (Example 2)
INJ
DET
COL

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
