■ Setting AOC parameters

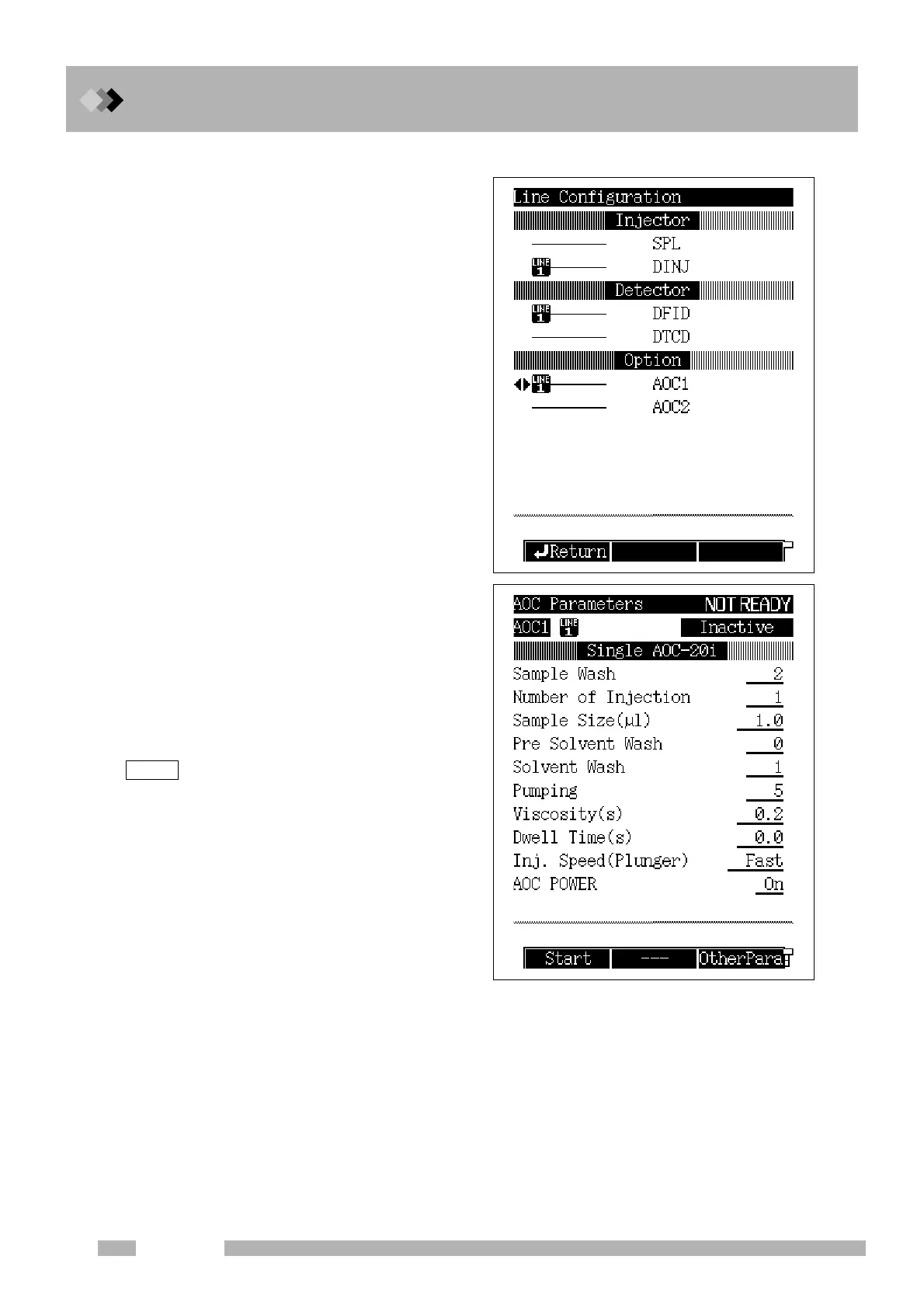

1. Set a line.
(1) Press the [SET] key and then press the
[PF2] key (Line Config).
(2) Specify “AOC1” on the line with the
injection port that the auto injector has
been attached to.
(3) The GC and AOC built-in power source
will be automatically linked.
2. Set AOC parameters.
(1) Press the [OPTION] key. If other option
screens appear, press the [OPTION]
key repeatedly until the AOC
Parameter screen appears.
(2) Set AOC parameters.
Parameters will be transmitted to the
AOC as soon as they are set.
For detailed information about setting AOC
parameters, refer to
“15.1 Auto Injector
Parameters”
or AOC-20 user’s manual.
If the AOC Parameter screen is not
displayed, check the connection of RS-
232C cable and settings for line
configuration.
NOTE

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
