Shimadzu GC-2014 Instruction Manual

11 Creating an Oven Temperature Program
11.2 Temperature Programs
117
GC-2014
Multiple-ramp temperature program (with temp increase /decrease)
Q Allowable temperature settings and ranges for temperature programs

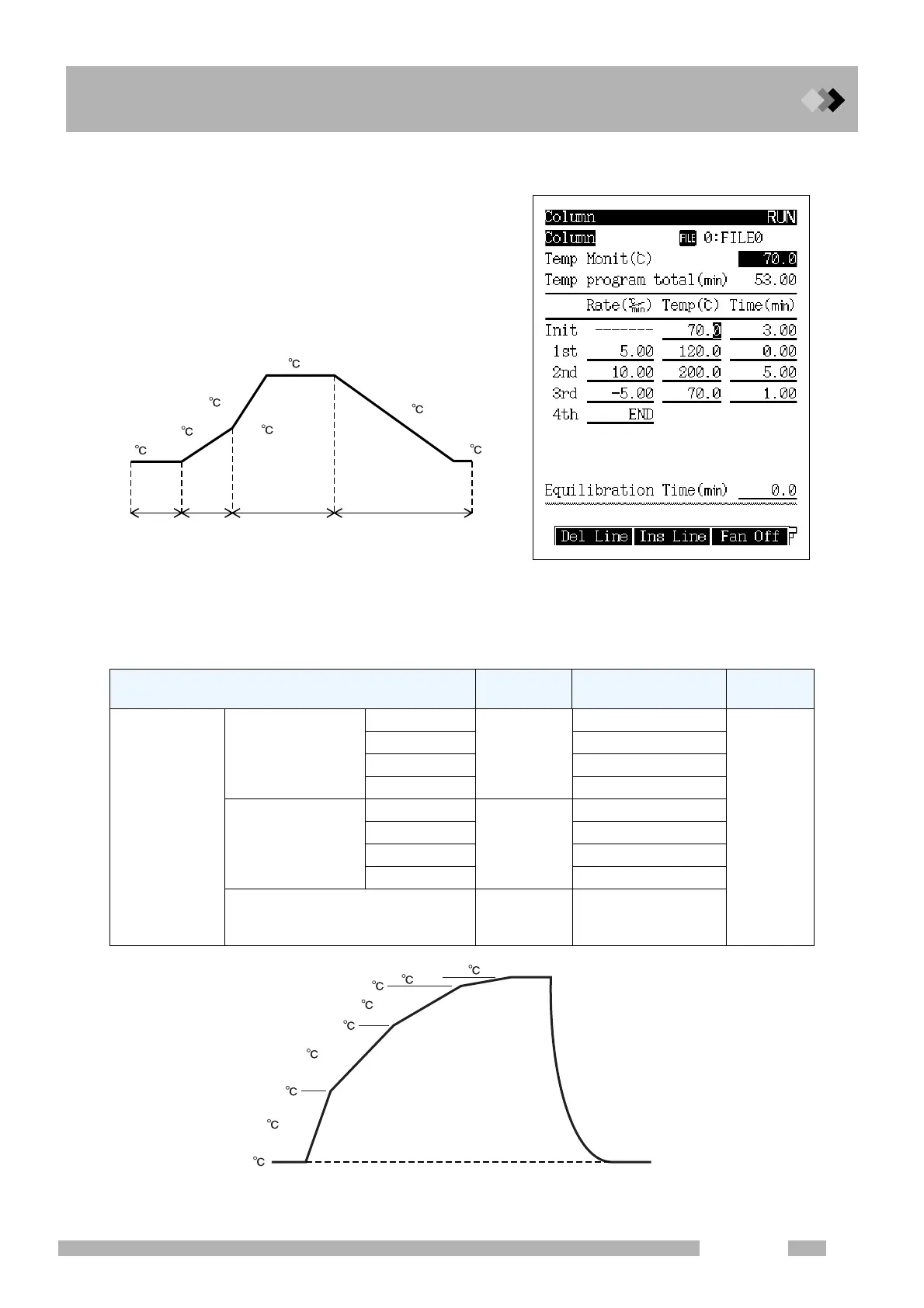

Fig. 11.2.4 Example of column oven temperature increase/decrease curve (115 V model)
Fig. 11.2.3 Temperature program (Example 3)
Item Set Range Control Range
Default
value
Program rate
Heating
115 V model
Up to 150 °C
0−250
°C/min
0−30 °C/min
0 °C/min
Up to 250 °C 0−20 °C/min
Up to 380 °C 0−10 °C/min
Up to 400 °C 0−7 °C/min
Heating
230 V model
Up to150 °C
0−250
°C/min
0−60 °C/min
Up to 250 °C 0−40 °C/min
Up to 380 °C 0−20 °C/min
Up to 400 °C 0−15 °C/min
Cooling
−250−0
°C/min
Differ from the room
temperature or the
oven temperature.
Initial
temperature
1st
stage
2nd
stage
3rd
stage
70
(1 min)
70
(3 min)
200
(5 min)
120
(0 min)
-5
/min
10
/min
5
/min
250
380
400
150
20 /min
7
/min
10
/min
30
/min
50

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
