Shimadzu GC-2014 Instruction Manual

1 Installation
1.1 Verification of Installation Location
2
GC-2014

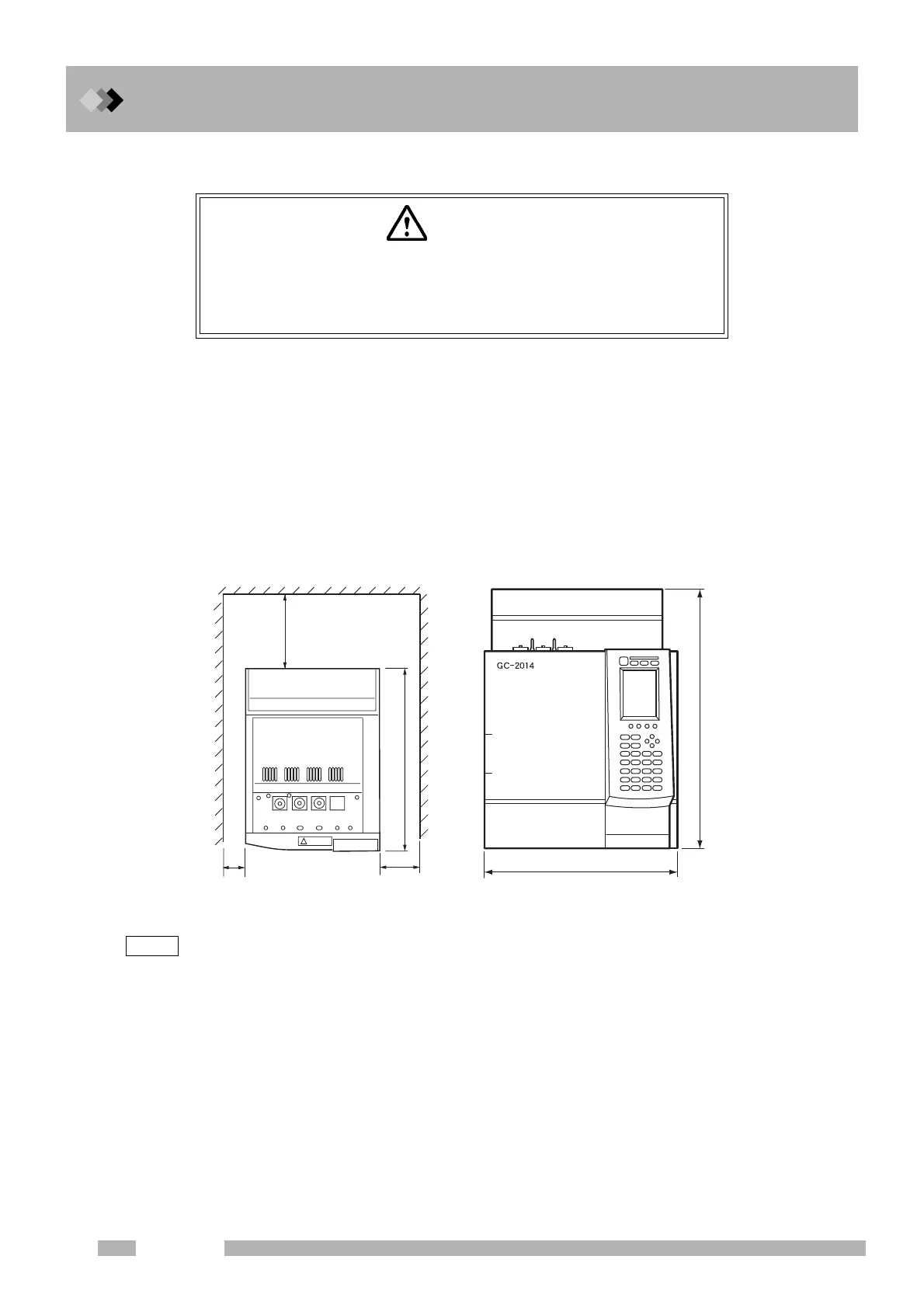

■ Installation clearances
Hot air is vented at the back of the unit when the column oven cools. Consider the following
during installation.
1. Do not place flammable materials behind the unit.
2. Allow a clearance of 400 mm or more between the back cover and the wall.
3. Allow a clearance of 50 mm or more on the left side.
4. Allow a clearance of 100 mm or more on the right side in order to have a space to open/
close the oven door.
5. Reserve extra space for maintenance and inspection behind the unit.
When the optional exhaust air duct (P/N 221-70675-91) is used, rear space of 200 mm or more is
required.
WARNING
Hot air
Hot air is exhausted from the vent. Do not place flammable materials
where they will be exposed to the heat.
Minimum 400 mm
Minimum 100 mmMinimum 50 mm
Depth 607 mm
Height 690 mm
Width 400 mm
NOTE

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
