Shimadzu GC-2014 Instruction Manual

12 Injection Port
12.2 Split/Splitless Injection System
136
GC-2014

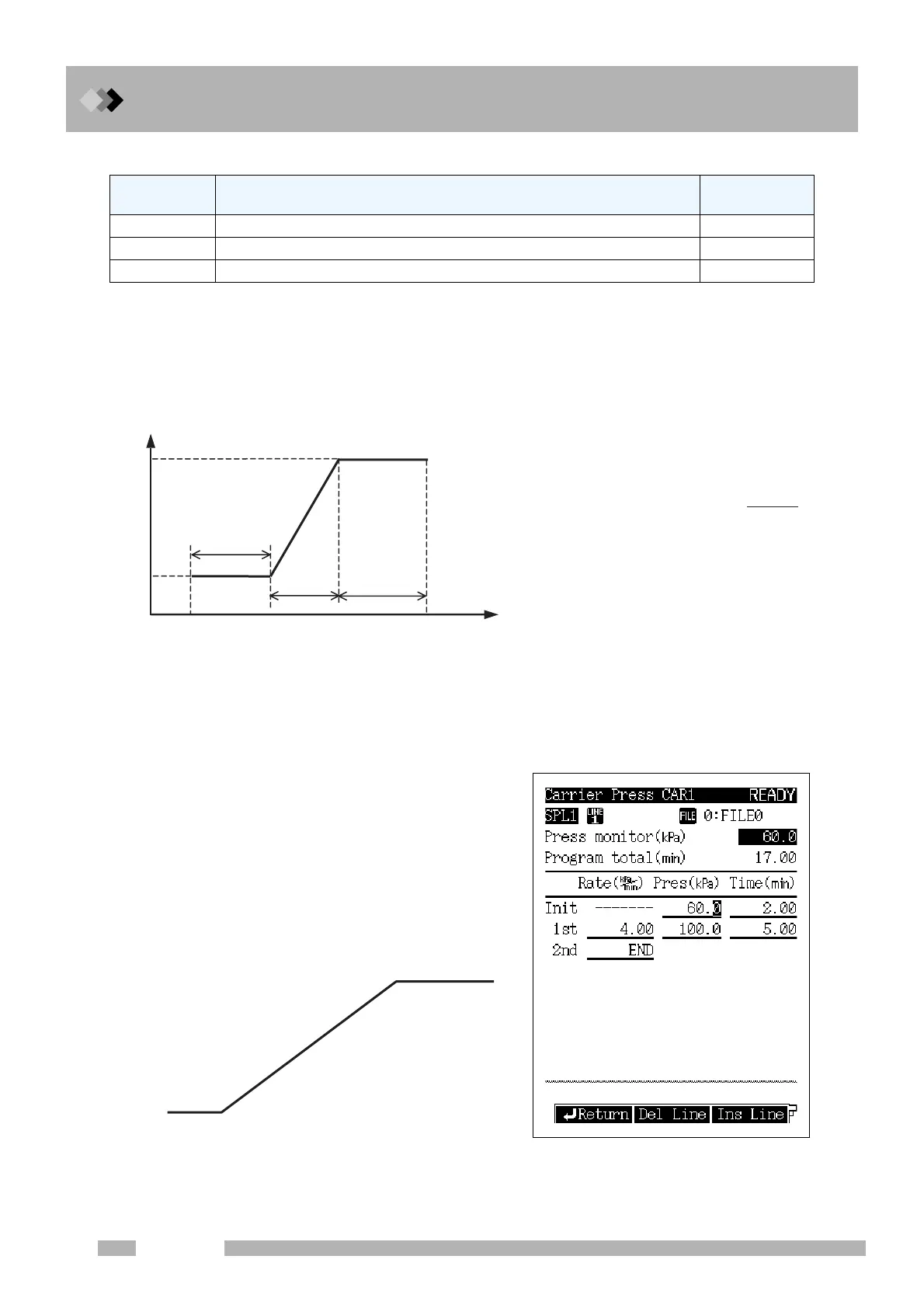

12.2.5.3 PF menu
12.2.5.4 Setting a pressure program
Q Screen terminology
<1-ramp pressure program>
Q Program creation
<1-ramp pressure program>
PF menu Description
Reference
section
Del Line Deletes a line at the current cursor position.
――
Ins Line Inserts a line in line at the current cursor position.
――
PRINT Prints the pressure program to a Chromatopac.
――
Fig. 12.2.9 Pressure program example
Initial pressure (PRSS)..... P1
Initial pressure hold time (TIME)...... a
Program rate (RATE).....
Final pressure (PRS)....... P2
Final pressure hold time (TIM)........
c
Pressure
P2
a
Program
starts.
Program
finishes.
Time
P2-P
1
b
b
c
60 kPa(2 min)
100 kPa(5 min)
4 kPa/min

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
