12 Injection Port
12.2 Split/Splitless Injection System
138
GC-2014
12.2.6.3 PF menu
12.2.6.4 Setting a flow rate program

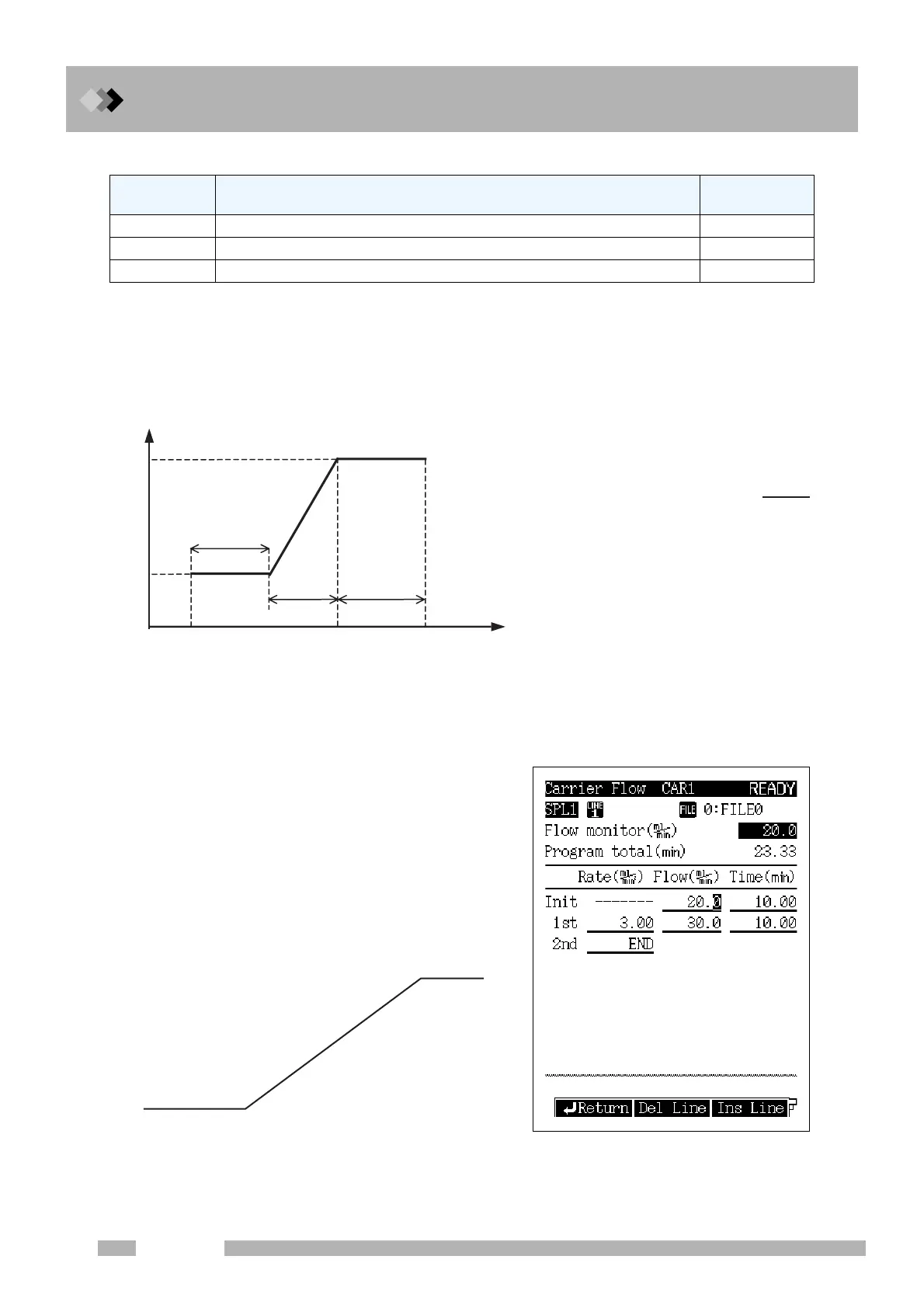

Q Screen terminology
<1-ramp flow rate program>
Q Program creation
<1-ramp flow rate program>
PF menu Description
Reference
section
Del Line Deletes a line at the current cursor position.
――
Ins Line Inserts a line in line at the current cursor position.
――
Print Prints the flow rate program to a hromatopac.
――
Fig. 12.2.11 Flow rate program example
Initial flow rate (FLOW).... F1
Initial flow rate hold time (TIME)...... a
Program rate (RATE)......
Final flow rate (FLW)........ F2
Final flow rate hold time (TIM).........
c
Flow rate
F2
F1
a
c
b
Program
starts.
Program
finishes.
Time
F2-F
1
b
20 ml/min(10 min)
30 ml/min(5 min)
3 ml/min
2

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
