1 Installation
1.3 Gas Supply Plumbing
14
GC-2014
Q Gas chromatograph tubing connections
Connections are provided on the rear panel of the unit for connecting external tubing.
They are labeled as follows.
Carrier gas ..................... CARRIER
(“L” and “R” mean the left and right side of dual INJ.)
Makeup gas ................... MAKE UP
Hydrogen ....................... HYDROGEN
Air .................................. AIR

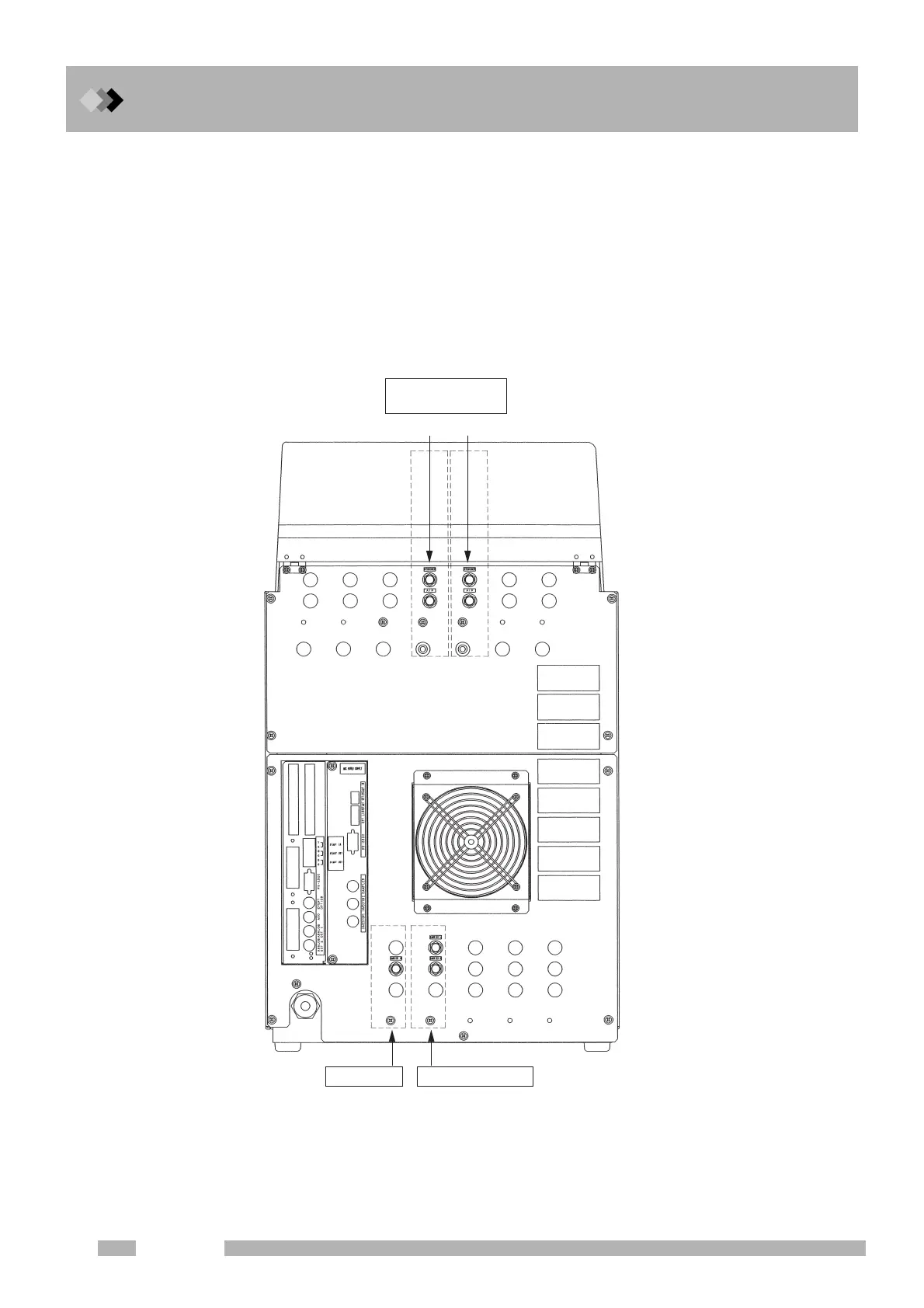

Fig. 1.3.6 Plumbing (Example of the GC-2014ATF+SPL model)
Flow controller
for the dual FID
Right Left
AFC for SPL AFC for the dual INJ
Supply the carrier gas for the left inlet of the dual INJ to CARRIER L
and the carrier gas for the right inlet of the dual INJ to CARRIER R.
