Changes are not in effect until the GC has been turned off and on.
Manual flow controller slot numbers are MSLOT1 to 7 from the left viewed from the back of the unit.
AFC and APC slot numbers are SLOT2 to 6 from the left viewed from the back of the unit. (SLOT1 is
not available.)
Manual flow controller APC

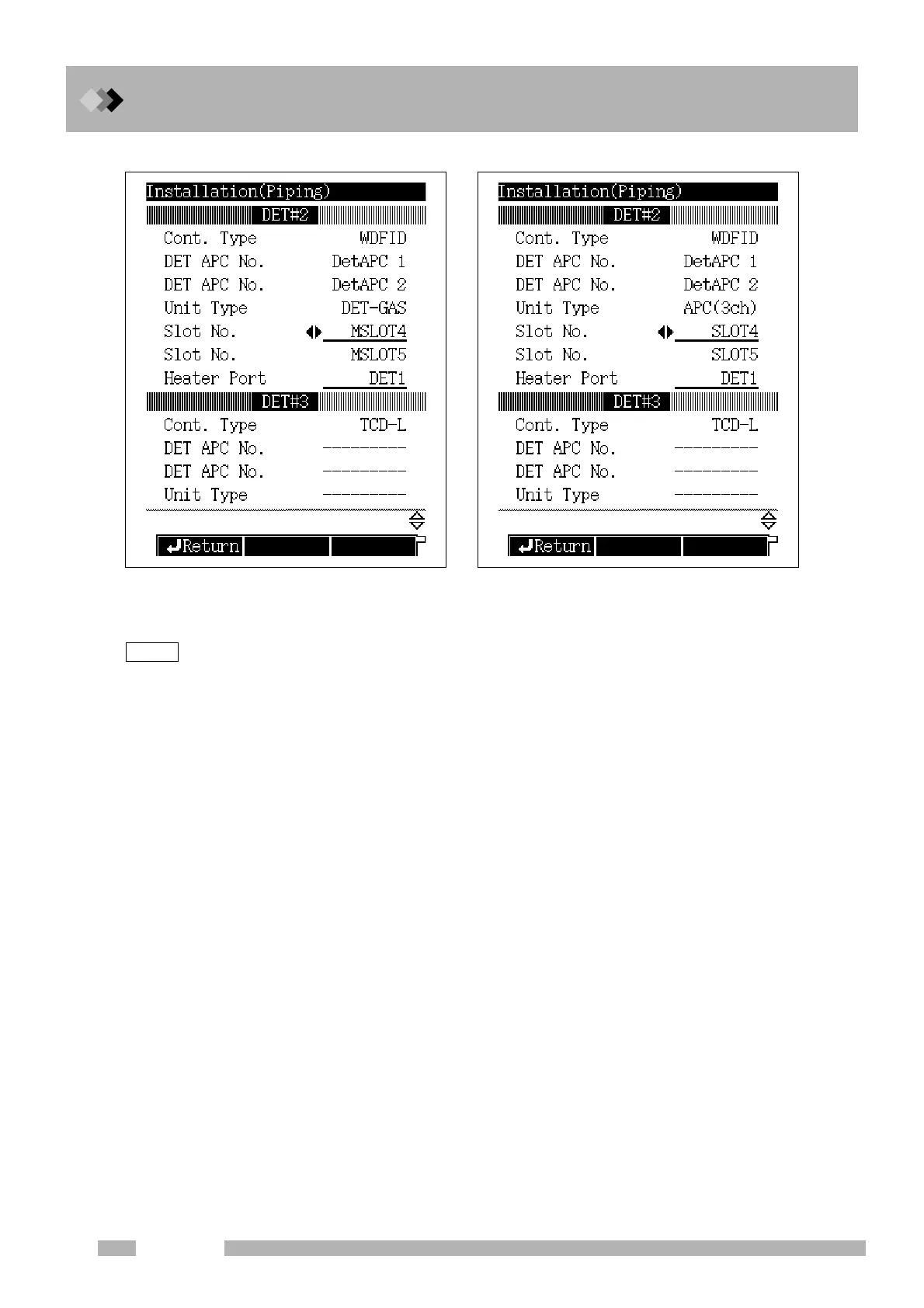

Fig. 16.7.5 Setup for detector gas flow controller
NOTE

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
