ONFIGURING

THE

ECURE

HELL

6-15

Web – Click Security, SSH, Host-Key Settings. Select the host-key type

from the drop-down box, select the option to save the host key from

memory to flash (if required) prior to generating the key, and then click

Generate.

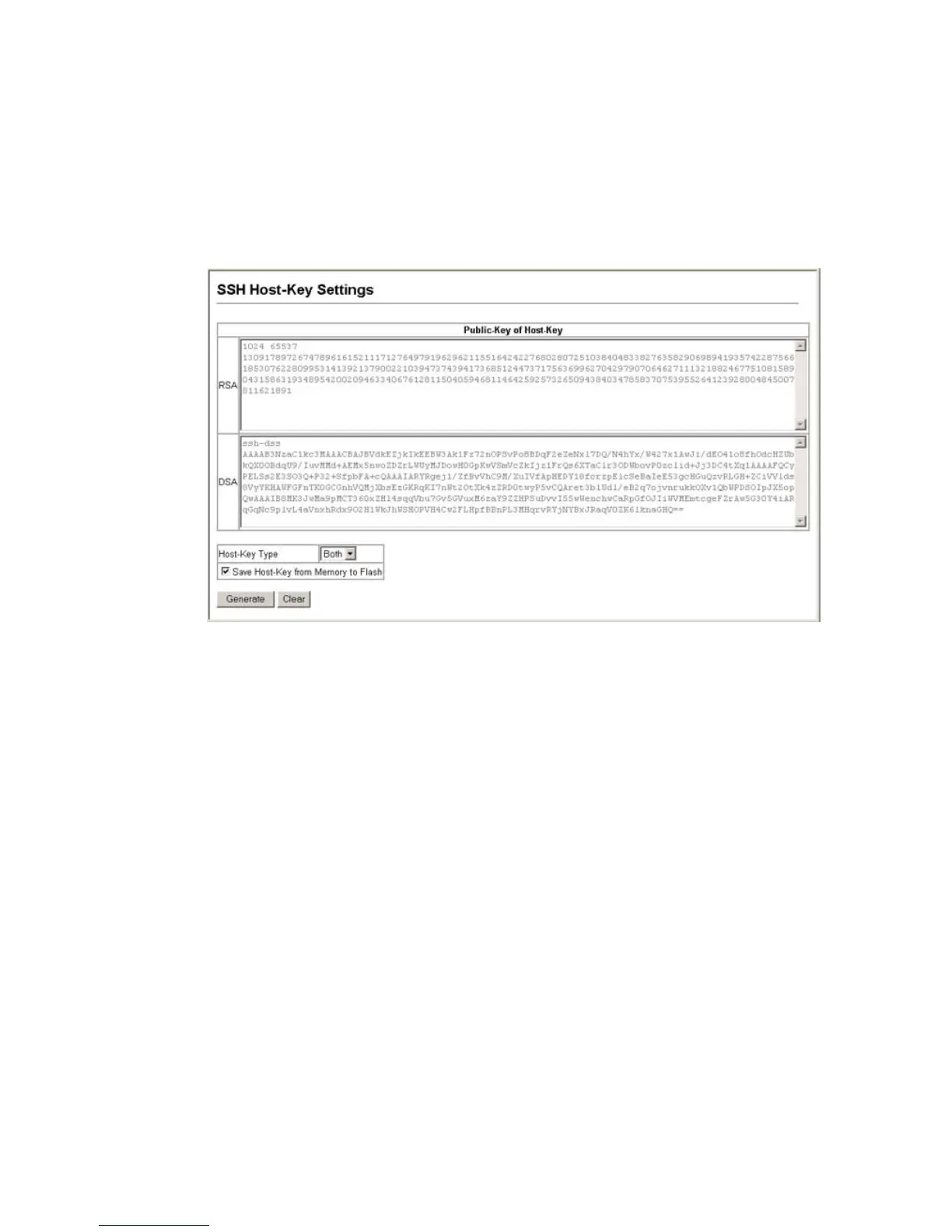

Figure 6-4 SSH Host-Key Settings
