Web – Click Port, Mirror Port Configuration. Specify the source port, the
traffic type to be mirrored, and the monitor port, then click Add.

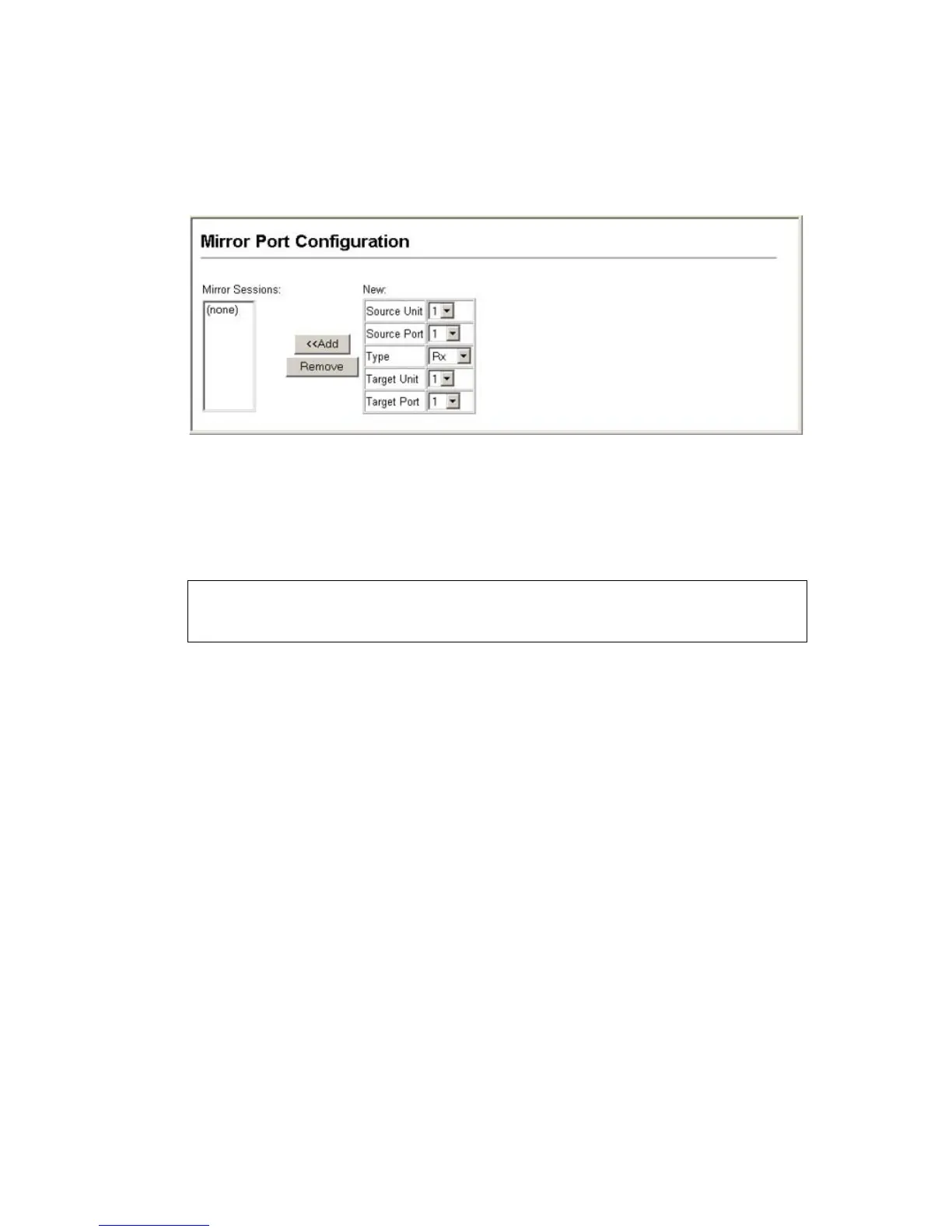

Figure 8-10 Mirror Port Configuration
CLI – Use the interface command to select the monitor port, then use the
port monitor command to specify the source port. Note that default
mirroring under the CLI is for both received and transmitted packets.
Configuring Rate Limits
This function allows the network manager to control the maximum rate
for traffic transmitted or received on an interface. Rate limiting is
configured on interfaces at the edge of a network to limit traffic into or out
of the switch. Traffic that falls within the rate limit is transmitted, while
packets that exceed the acceptable amount of traffic are dropped.
Rate limiting can be applied to individual ports or trunks. When an
interface is configured with this feature, the traffic rate will be monitored
by the hardware to verify conformity. Non-conforming traffic is dropped,
conforming traffic is forwarded without any changes.
Console(config)#interface ethernet 1/10 24-2
Console(config-if)#port monitor ethernet 1/13 26-1
Console(config-if)#
