ONFIGURING

ENERAL

DNS S

ERVICE

ARAMETERS

15-3

Web – Select DNS, General Configuration. Set the default domain name

or list of domain names, specify one or more name servers to use to use

for address resolution, enable domain lookup status, and click Apply.

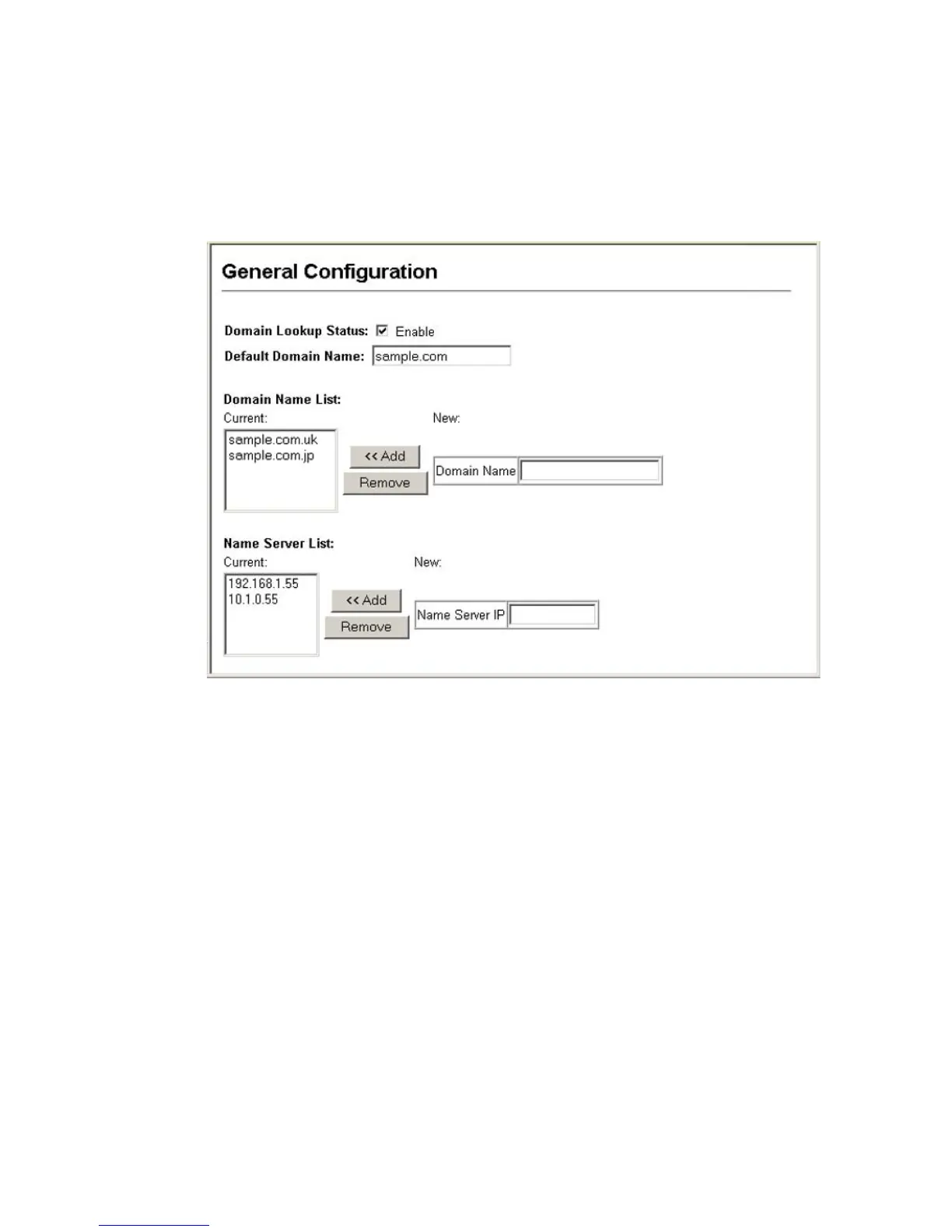

Figure 15-1 DNS General Configuration
