ISPLAYING

RIDGE

XTENSION

APABILITIES

4-7

Web – Click System, Bridge Extension.

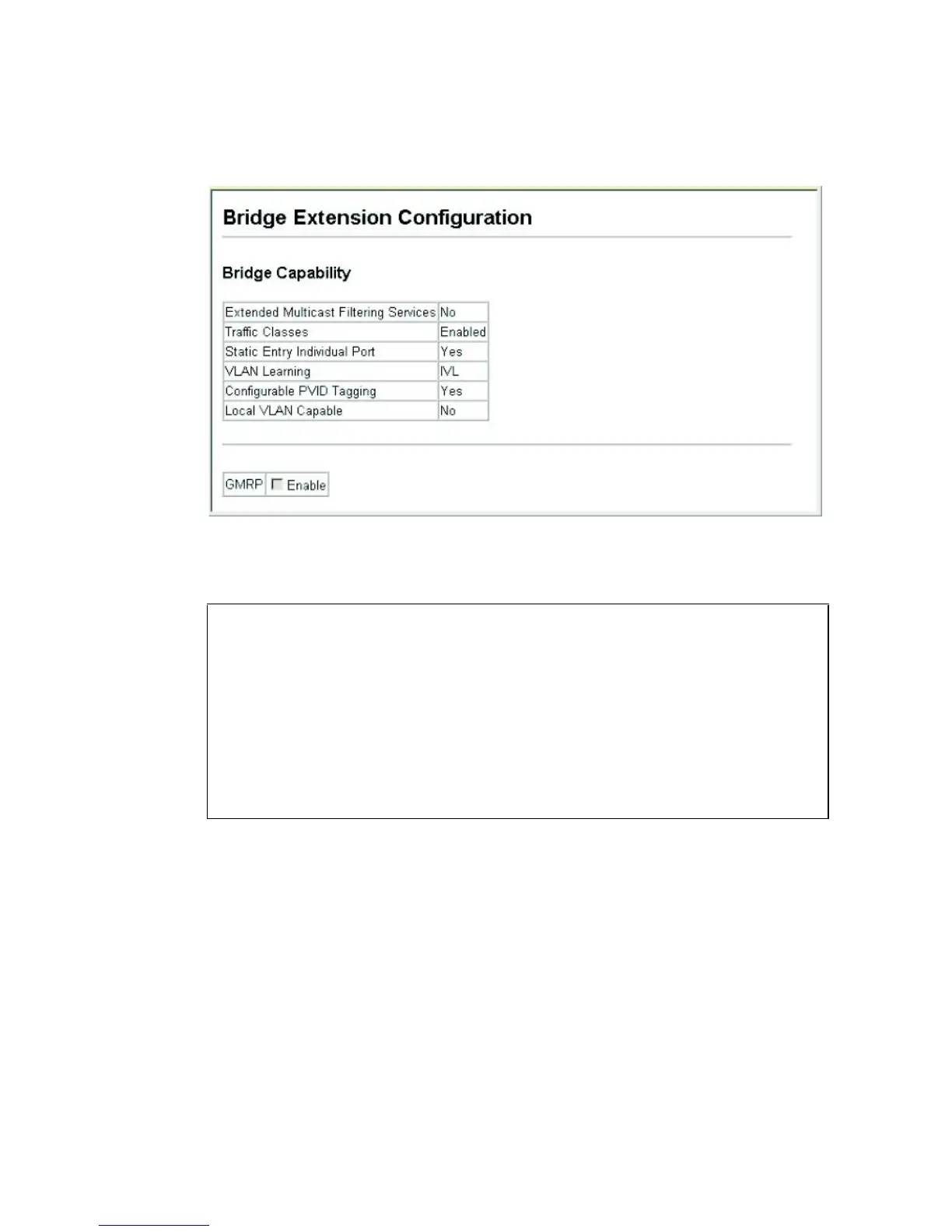

Figure 4-3 Displaying Bridge Extension Configuration

CLI – Enter the following command.

Console#show bridge-ext 30-3

Max support VLAN numbers: 256

Max support VLAN ID: 4093

Extended multicast filtering services: No

Static entry individual port: Yes

VLAN learning: IVL

Configurable PVID tagging: Yes

Local VLAN capable: No

Traffic classes: Enabled

Global GVRP status: Disabled

GMRP: Disabled

Console#
