B
INDING
A
P
ORT
TO
AN
A
CCESS
C
ONTROL
L
IST
7-13
Binding a Port to an Access Control List
After configuring the Access Control Lists (ACL), you should bind them
to the ports that need to filter traffic. You can only bind a port to one ACL
for each basic type – IPv4 ingress, MAC ingress, and IPv6 ingress.
Command Usage
This switch supports ACLs for ingress filtering only.
Command Attributes
• Port – Fixed port, SFP module, or XFP module. (Range: 1-26/50)
• IP – Specifies the IPv4 ACL to bind to a port.
• MAC – Specifies the MAC ACL to bind to a port.
• IPv6 – Specifies the IPv6 ACL to bind to a port.
• IN – ACL for ingress packets.
• OUT – ACL for egress packets. (Egress filtering is not supported.)
• ACL Name – Name of the ACL.
Web – Click Security, ACL, Port Binding. Mark the Enable field for the
port you want to bind to an ACL for ingress traffic, select the required
ACL from the drop-down list, then click Apply.

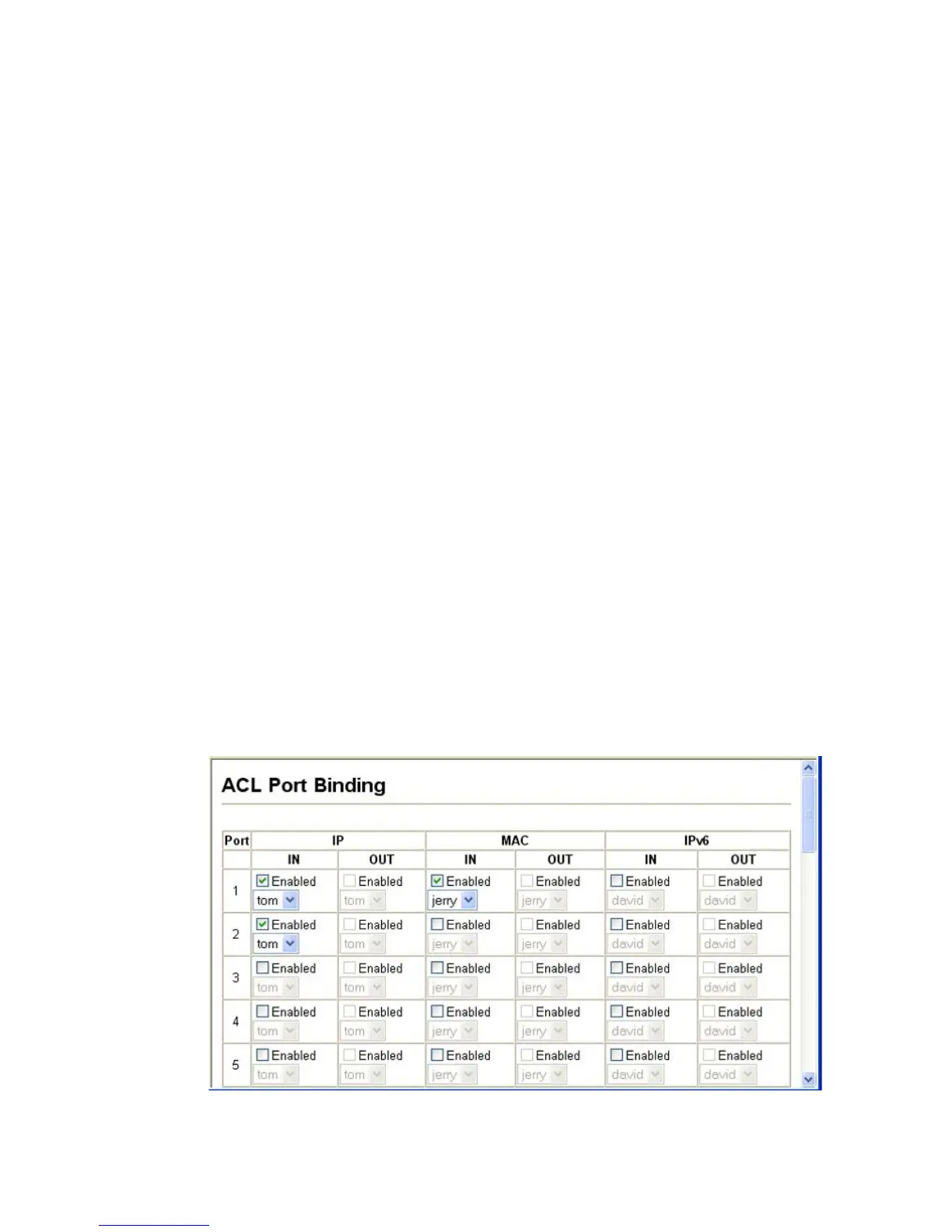

Figure 7-7 ACL Port Binding
