ISPLAYING

THE

OUTING

ABLE

17-29

Web - Click IP, Routing, Routing Table.

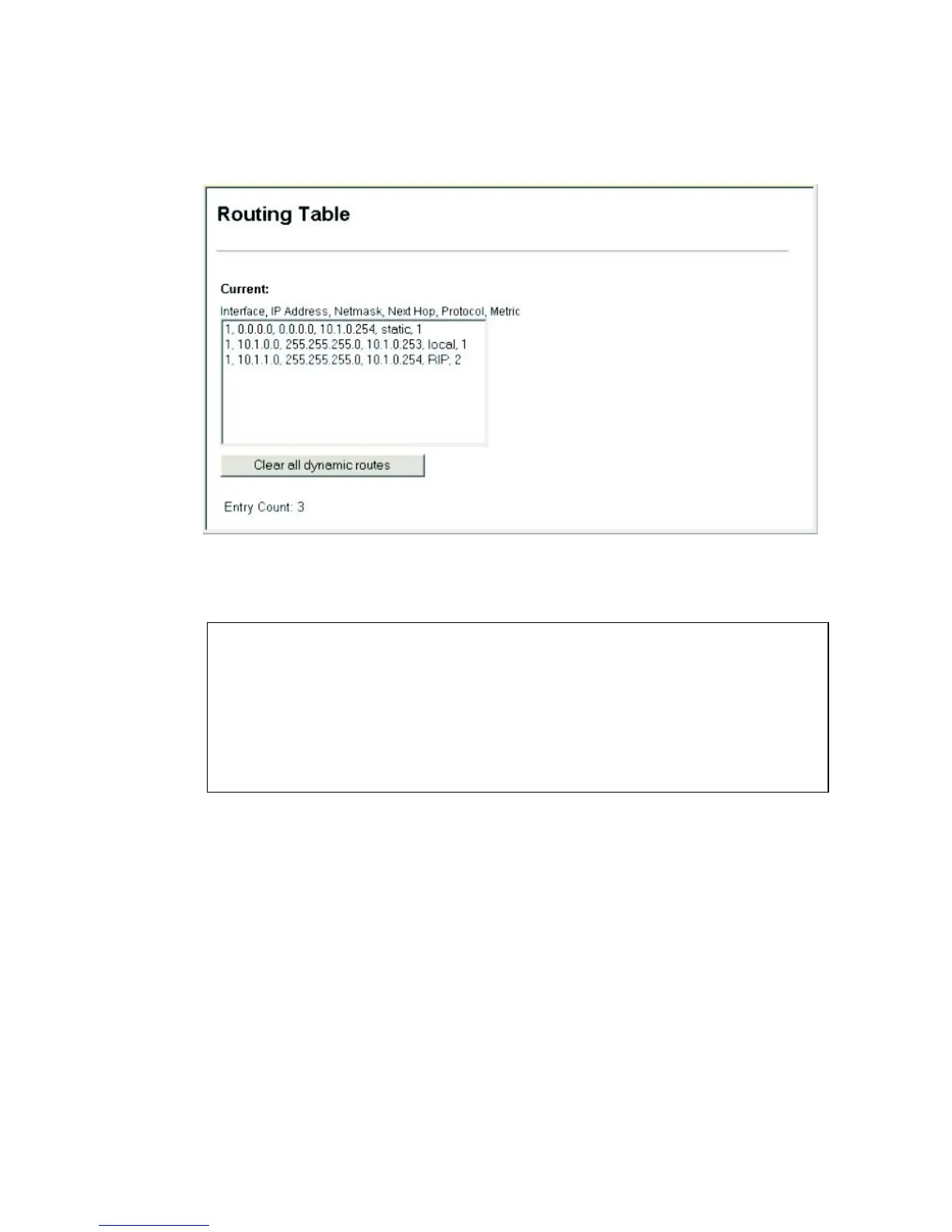

Figure 17-13 IP Routing Table

CLI - This example shows routes obtained from various methods.

Console#show ip route 37-5

Ip Address Netmask Next Hop Protocol Metric Interface

--------------- --------------- --------------- -------- ------ ---------

0.0.0.0 0.0.0.0 10.1.0.254 static 1 1

10.1.0.0 255.255.255.0 10.1.0.253 local 1 1

10.1.1.0 255.255.255.0 10.1.0.254 RIP 2 1

Total entries: 3

Console#
