P
ORT
C
ONFIGURATION
8-10
Command Attributes
• Member List (Current) – Shows configured trunks (Trunk ID, Unit,
Port).
• New – Includes entry fields for creating new trunks.
- Trunk – Trunk identifier. (Range: 1-32)
- Unit – Stack unit. (Range: 1-8)
- Port – Port identifier. (Range: 1-25/49)
Web – Click Port, Trunk Membership. Enter a trunk ID of 1-32 in the
Trunk field, select any of the switch ports from the scroll-down port list,
and click Add. After you have completed adding ports to the member list,
click Apply.

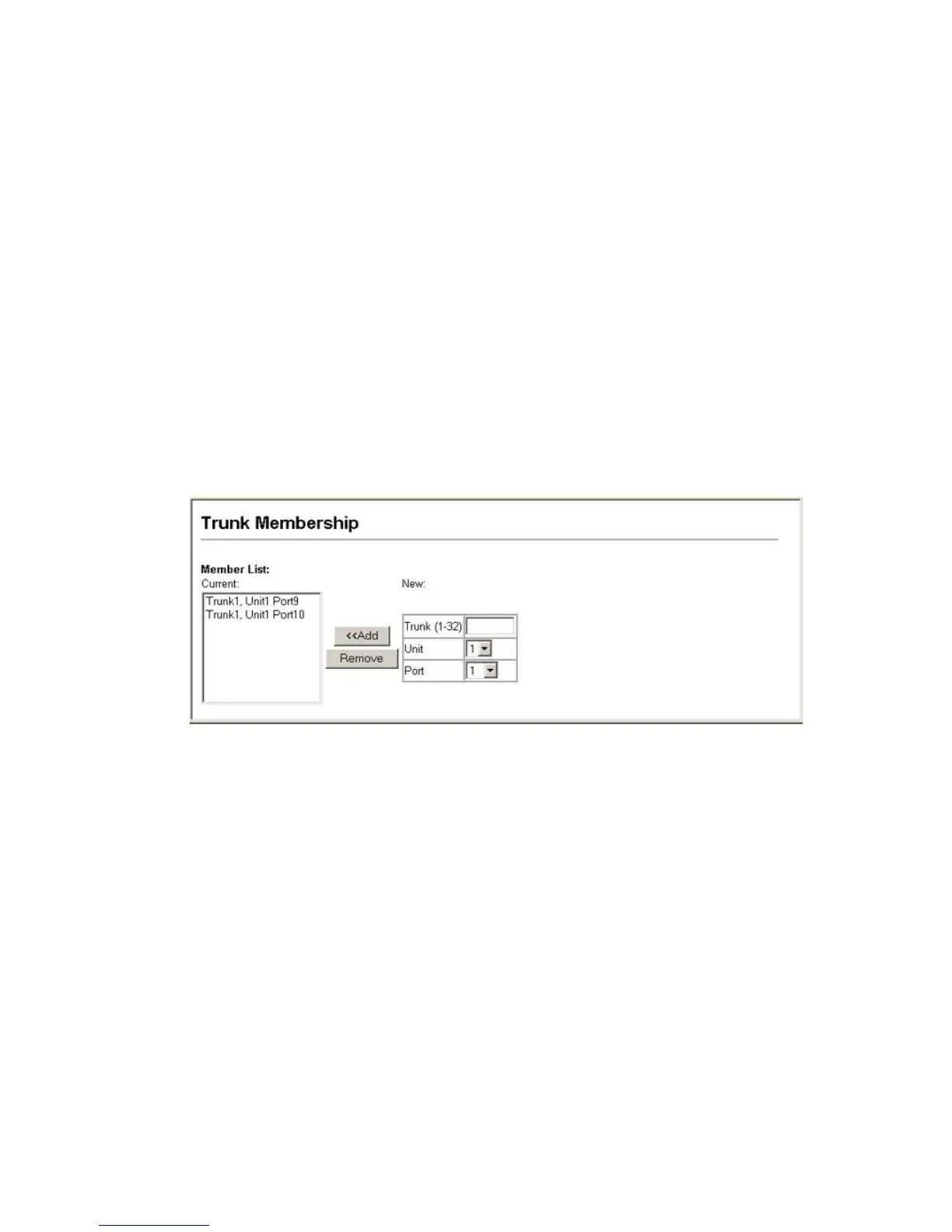

Figure 8-3 Static Trunk Configuration
