P
ORT
C
ONFIGURATION
8-6
-
SFP-Forced
- Always uses the SFP port (even if module is not
installed).
-
SFP-Preferred-Auto
- Uses SFP port if both combination types are
functioning and the SFP port has a valid link.
• Trunk – Indicates if a port is a member of a trunk. To create trunks and
select port members, see “Creating Trunk Groups” on page 8-8.
Note: Auto-negotiation must be disabled before you can configure or
force the interface to use the Speed/Duplex Mode or Flow
Control options.
Web – Click Port, Port Configuration or Trunk Configuration. Modify the
required interface settings, and click Apply.

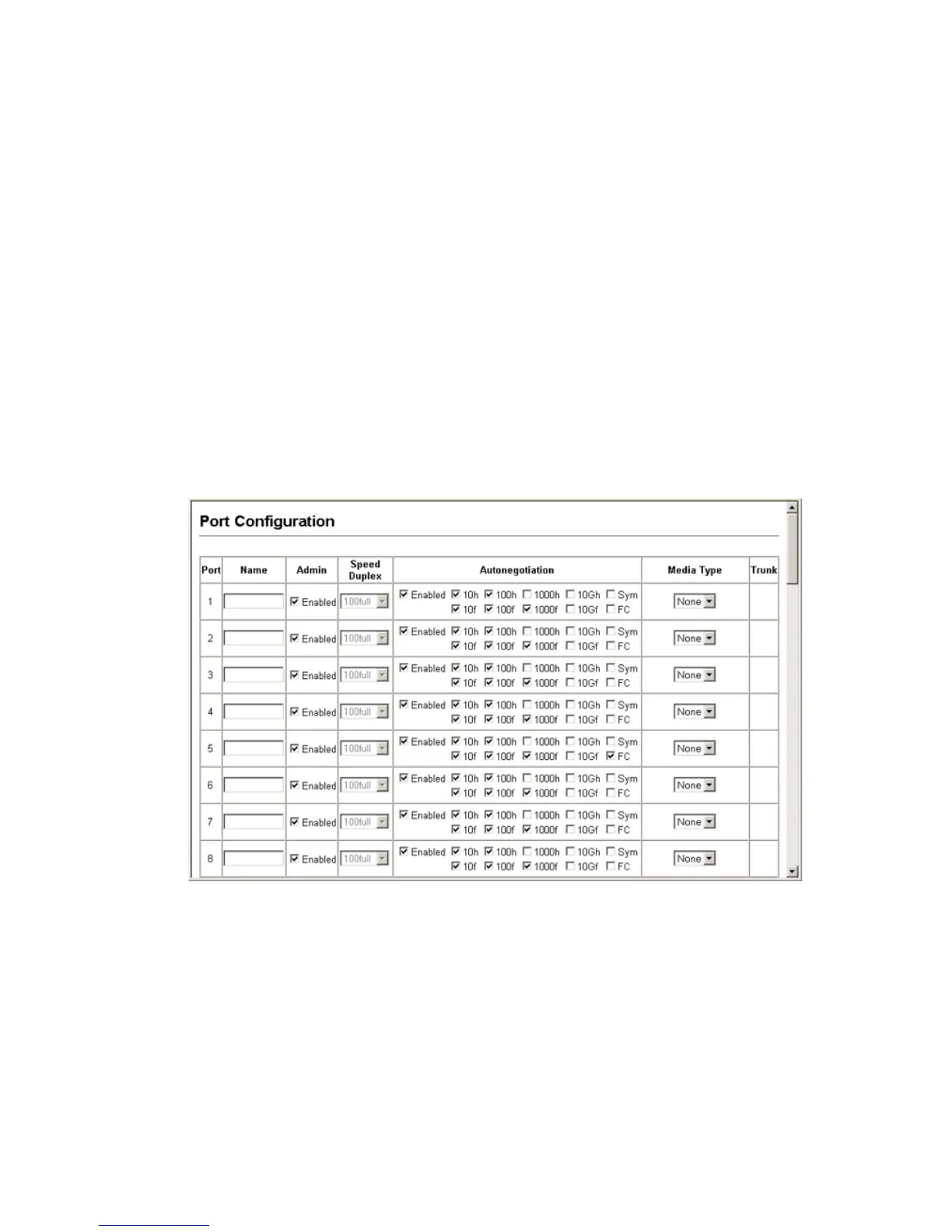

Figure 8-2 Port - Port Configuration
