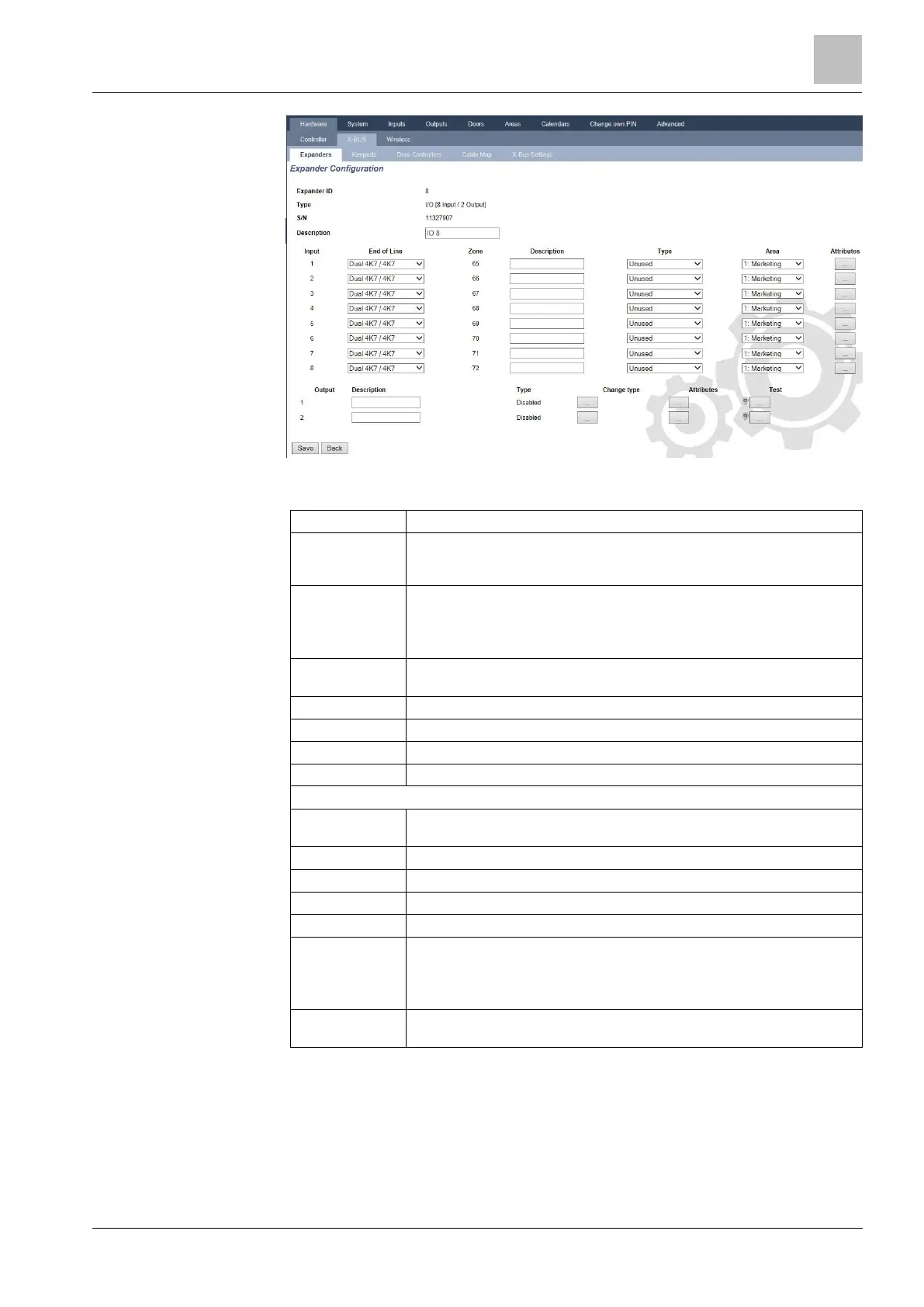

Configure the following fields:
For appearance on device LEDs.
Audio Expander Only: Speaker volume for the Audio Expander and satellites
(WAC 11). They are all wired in parallel. Note that the speaker on WAC 11 has a
potentiometer for fine-tuning the volume. Range is 0 min - 7 max or disabled.
Audio Expander Only: This option should be enabled if satellites (WAC11) are
connected to this expander.
Note: This option, if enabled, powers the satellite microphones. The satellite
speakers are always enabled regardless of this setting.
Select the correct End of Line (default: DEOL 4K7). This setting should match the
actual wiring of the input on the controller or expander. See page [➙ 72].
Provide a description for allocated zone.
Select the zone type. See page [➙ 350].
Assign attributes as desired. See page [➙ 347].
Outputs / PSU outputs (Displayed for the SPCP355.300 Smart PSU ONLY)
The numbered output. The value in parentheses corresponds to the physical
output on the PSU board.
Provide description for output.
Change the type of output as necessary.
Assign attributes to the output.
Select which outputs are to be monitored.
Note: The parallel resistor, diode and required load must be applied before
enabling this option. The SPCP355.300 must perform a calibration before
monitoring starts. See Supervised Outputs [➙ 57] for more information.
Tick this box if there is no secondary battery connected to the PSU
When expanders are added or removed:
Click Reconfigure to implement changes.
See also
Wiring the system [➙ 72]
