10/00
4-12
Phaser 790/DocuColor 2006
REP 1.12
Initial Issue
Repairs and Adjustments
REP 1.12 Communication PWB
Parts List on PL 11.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bypass Tray / Registration Assembly (REP 8.10).
3. Remove the Communication PWB (Figure 1).
Replacement
1. Reinstall the Communication PWB in the reverse order of removal.

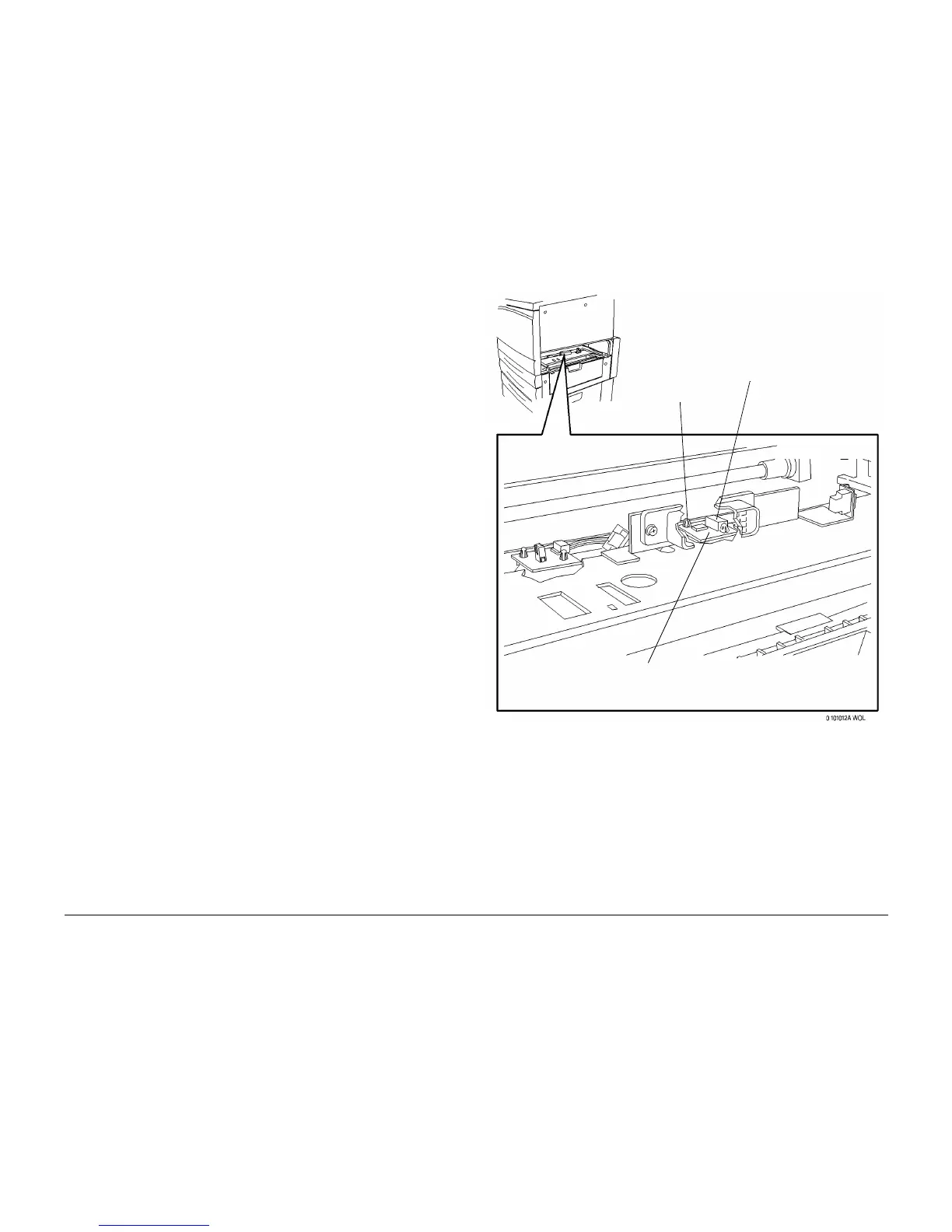

Figure 1 Removing the Communication PWB
1
Disconnect the
connector
2
Compress the
two standoffs
3
Remove the
Communication
PWB
To Next Page
