Xerox Phaser 790 User Manual

10/00
4-146
Phaser 790/DocuColor 2006
REP 14.11
Initial Issue
Repairs and Adjustments
REP 14.11 Right Lower Cover
Parts List on PL 1.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Right Lower Cover (Figure 1).
Replacement
1. Reinstall the Right Lower Cover in the reverse order of removal.

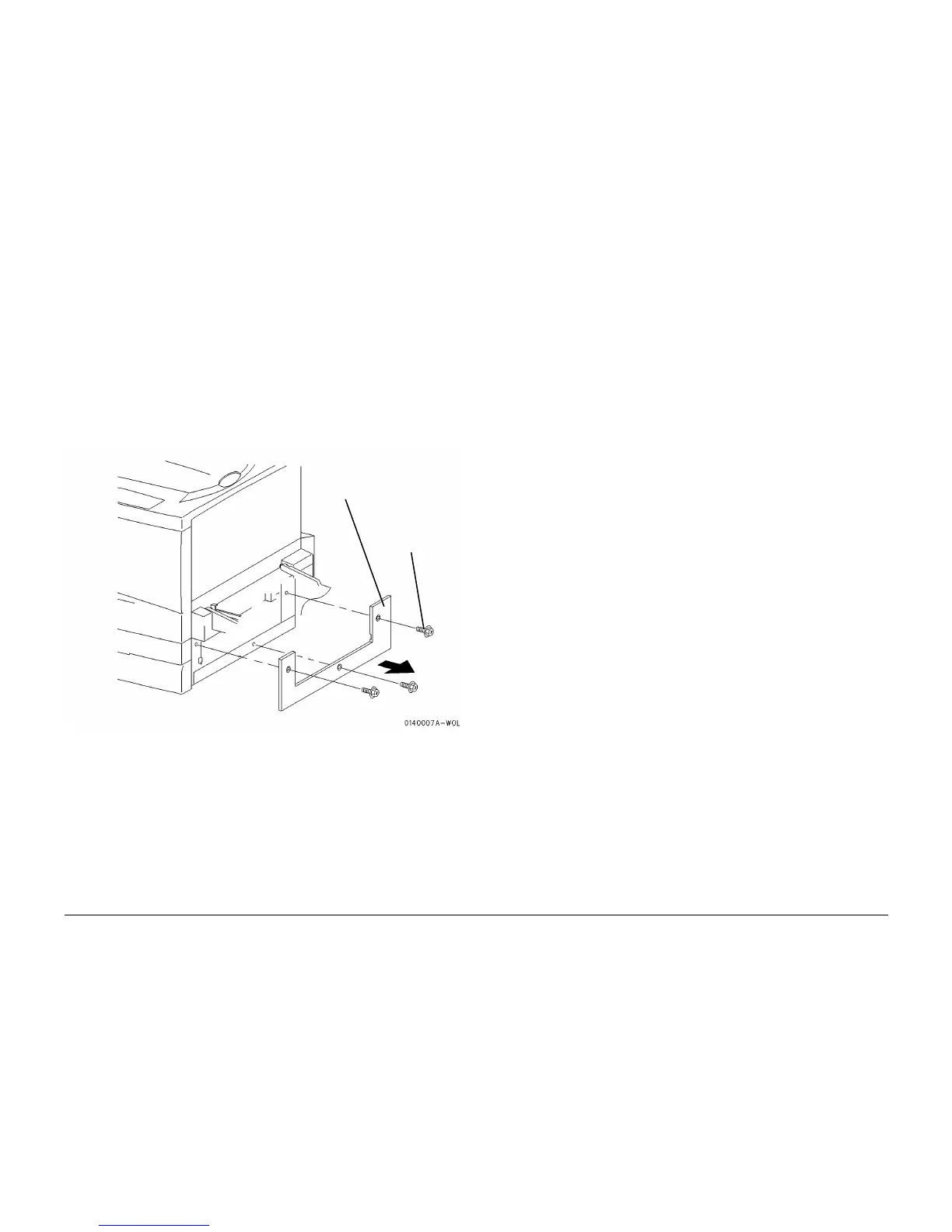

Figure 1 Removing the Right Lower Cover
1
Remove the
three screws
2
Remove the Right
Lower Cover
