Xerox Phaser 790 User Manual

10/00
5-71
Phaser 790/DocuColor 2006
PL 17.3
Parts List
Initial Issue

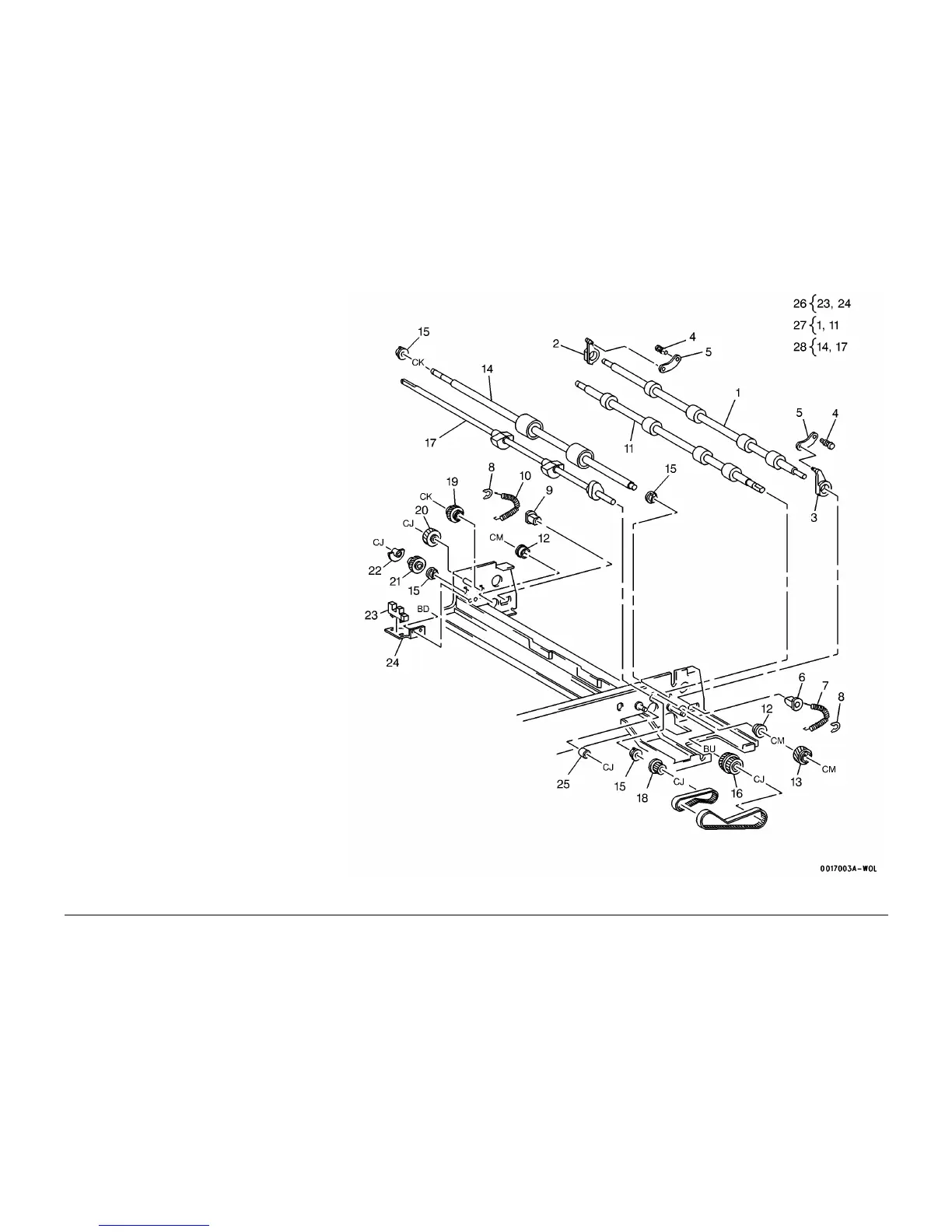

PL 17.3 Registration,Feed,Nudger
Roll, Nudger Home Sensor
Item Part Description
1 – Registration Pinch Roll (P/O PL
17.3 Item 27)
2 008E92010 Front Cam
3 008E92020 Rear Cam
4 019E93510 Push Rivet
5 012E93430 Link
6 013E94561 Bearing
7 009E28580 Spring
8 005E80250 C-Ring
9 013E82290 Bearing
10 009E39080 Spring
11 – ADF Registration Roll (P/O PL 17.3
Item 27) (REP 5.6)
12 013E80970 Bearing
13 007E88100 Gear
14 – Feed Roll (P/O PL 17.3 Item 28)
(REP 5.4)
15 013E81370 Bearing
16 007K91871 Gear
17 – Nudger Roll (P/O PL 17.3 Item 28)
(REP 5.5)
18 020K93310 Pulley
19 007K81110 Gear
20 007K81980 Gear
21 007E83250 Gear
22 015E32720 Actuator
23 107E06650 Nudger Home Sensor
24 – Bracket (P/O PL 17.3 Item 26)
25 059E90580 Tension Bearing
26 130K82790 Nudger Home Sensor Assembly
27 600K99500 Registration Roll Kit (ADJ 5.1 ADJ
5.2)
28 600K99510 Feed Roll Kit
