10/00
4-71
Phaser 790/DocuColor 2006
REP 8.19
Repairs and Adjustments
Initial Issue
REP 8.19 Size Switch PWB
Parts List on PL 13.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Feeder Rear Cover.
NOTE: Note the positioning of the bracket prior to removing it.
3. Remove the Size Switch PWB. (Figure 1)

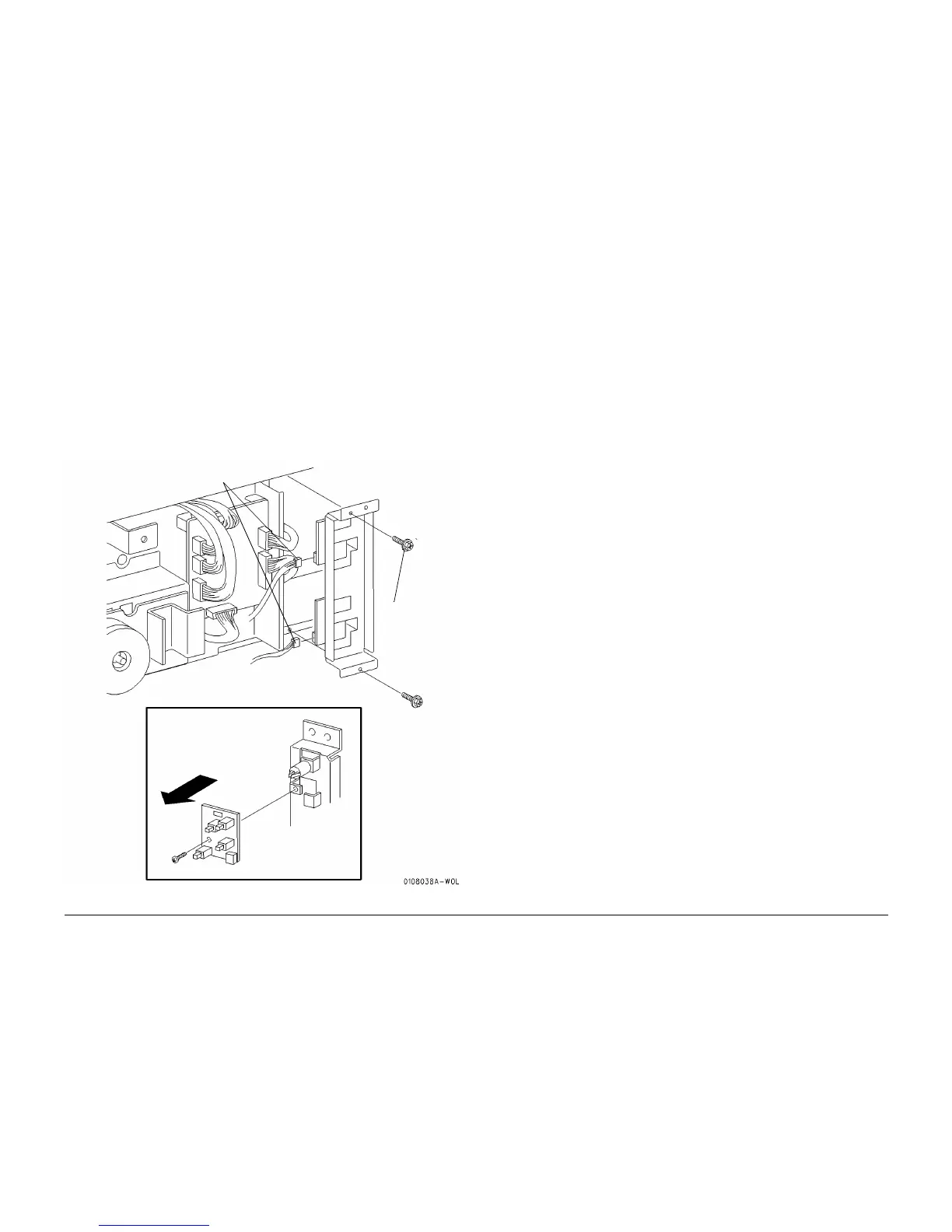

Figure 1 Removing the Size Switch PWB
Replacement
1. Perform the removal procedure in reverse.
2. Return the bracket to the exact position from which it was removed.
1
Remove two
screws and the
Bracket
2
Disconnect the
connector
3
Remove the screw and
the Size Switch PWB
Typical
