Xerox Phaser 790 User Manual

10/00
4-21
Phaser 790/DocuColor 2006
REP 4.9, REP 4.10
Repairs and Adjustments
Initial Issue
REP 4.9 Dispense Clutch
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
3. Remove the Fuser Motor (REP 4.3).
4. Remove the Rotary Motor PWB (REP 4.8).
5. Remove the Dispense Clutch (Figure 1).
Replacement
1. Reinstall the Dispense Clutch in the reverse order of removal.

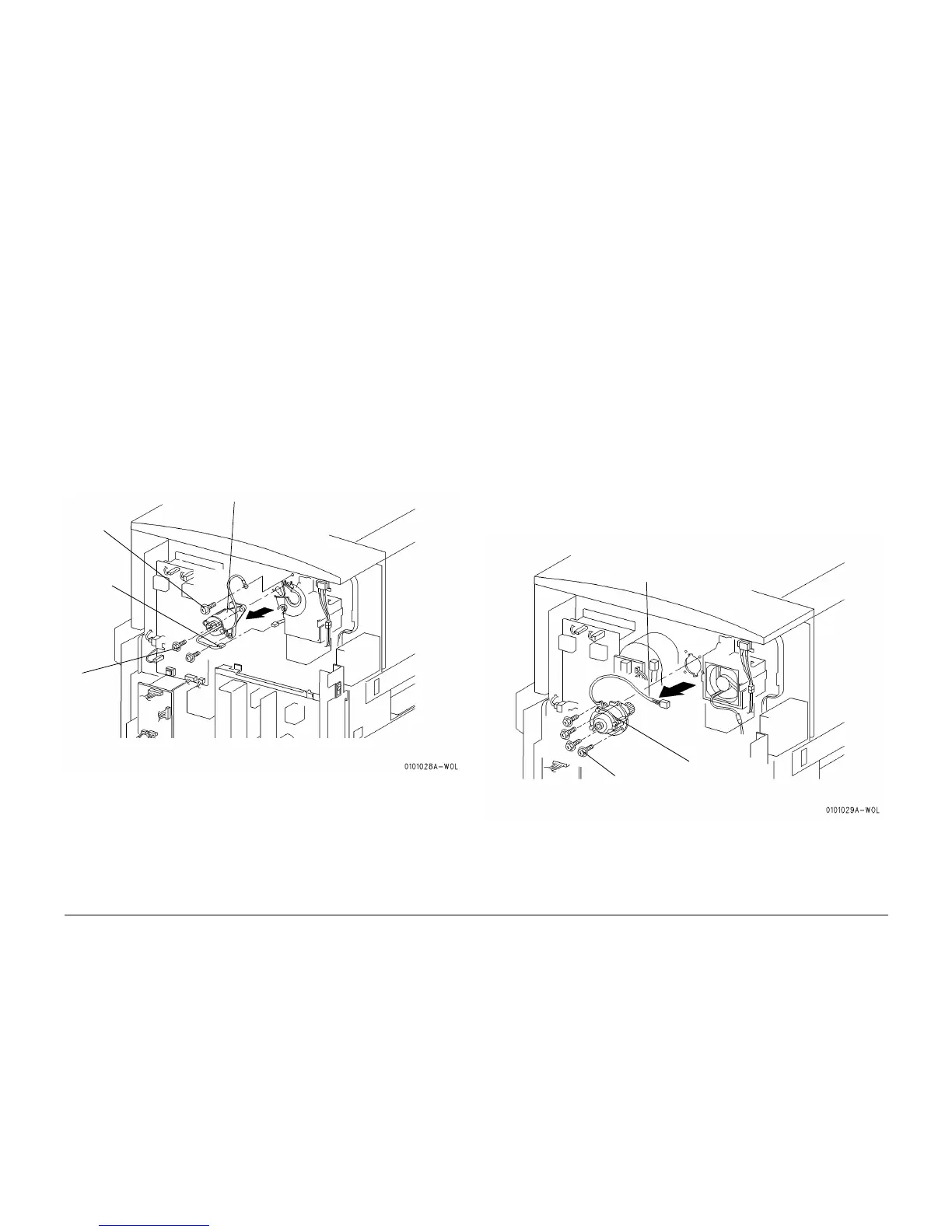

Figure 1 Removing the Dispense Clutch
REP 4.10 Developer Clutch
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
3. Remove the Fuser Assembly (REP 10.1).
4. Remove the Fuser Motor (REP 4.3).
5. Remove the Rotary Motor PWB (REP 4.8).
6. Remove the LVPS (REP 1.1).
7. Remove the Fuser Drive Unit (REP 4.2).
8. Remover the Developer Clutch (Figure 1).
Replacement
1. Reinstall the Developer Clutch in the reverse order of removal.
Figure 1 Removing the Developer Clutch
1
Remove the
ground wire
screw
2
Discon-
nect the
connector
3
Remove the
screws
4
Slide the gear to the notch in the
frame hole and remove the Dis-
pense Clutch
1
Disconnect the connector and free the
harness
2
Remove the
screws
3
Remove the
Developer
Clutch
