Xerox Phaser 790 User Manual

10/00
5-18
Phaser 790/DocuColor 2006
PL 4.4
Initial Issue
Parts List

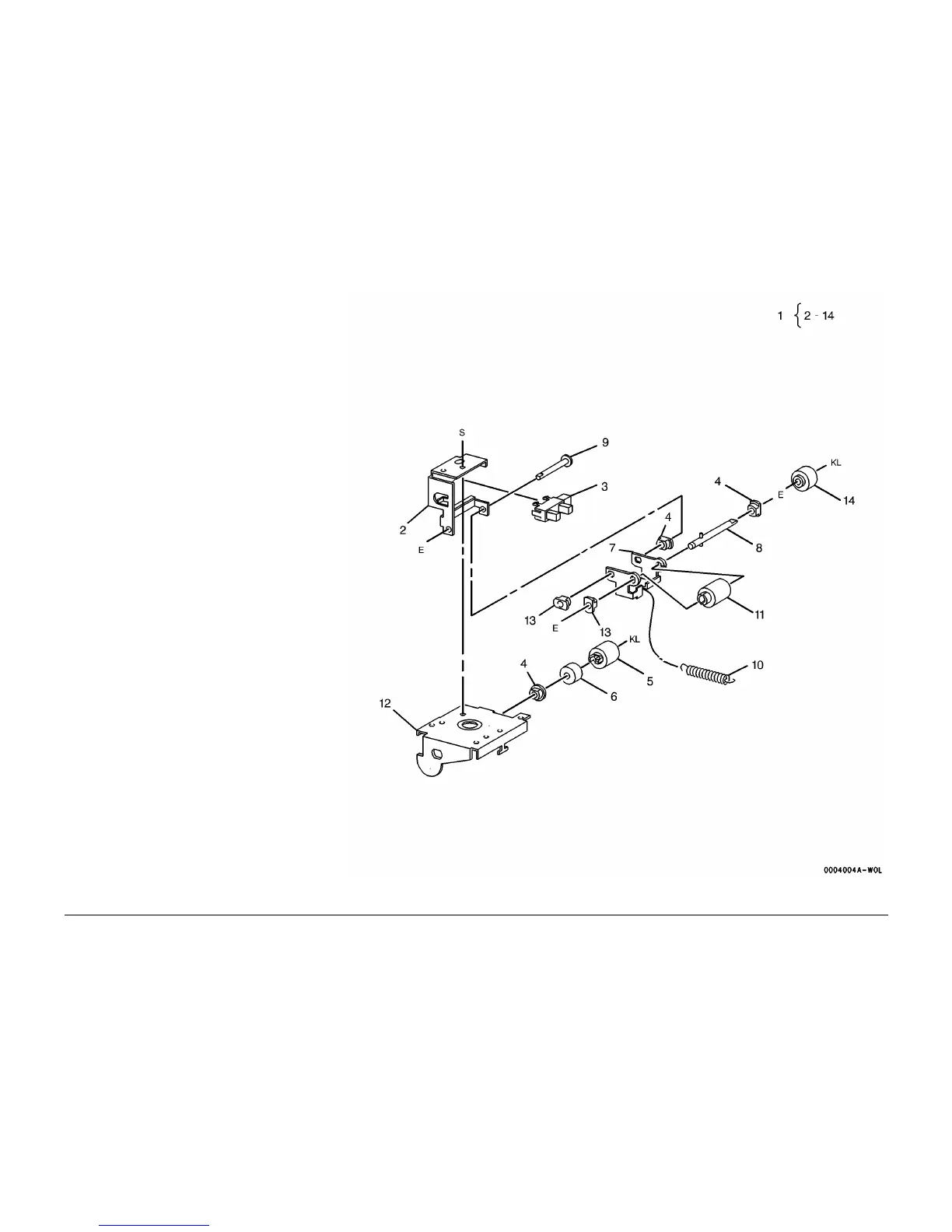

PL 4.4 Bypass Tray/ Paper Transport
(4 of 7)
Item Part Description
1 001K69743 Feed Frame Assembly
2 – Stack Height Sensor Bracket (P/O
PL 4.4 Item 1)
3 130E82190 Stack Height Sensor (REP 8.14)
4 – Bearing (P/O PL 4.4 Item 1)
5 – Friction Clutch (P/O PL 4.4 Item 1)
6 – Feed Roll (P/O PL 4.4 Item 1)
7 – Nudger Support (P/O PL 4.4 Item
1)
8 – Retard Shaft (P/O PL 4.4 Item 1)
9 – Support Shaft (P/O PL 4.4 Item 1)
10 – Retard Spring (P/O PL 4.4 Item 1)
11 – Friction Clutch (P/O PL 4.4 Item 1)
12 – Top Frame (P/O PL 4.4 Item 1)
13 – Bearing (P/O PL 4.4 Item 1)
14 – Retard Roll (P/O PL 4.4 Item 1)
