Xerox Phaser 790 User Manual

10/00
4-103
Phaser 790/DocuColor 2006
REP 9.14, REP 9.15
Repairs and Adjustments
Initial Issue
REP 9.14 Developer Tie Plate
Parts List on PL 1.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Top Cover Assembly (REP 14.4).
3. Remove the Rear Cover (REP 14.6).
4. Remove the Copy/Print Cartridge (REP 9.1).
5. Remove the Tension Lever (REP 9.15).
6. Remove the Left Inner Cover Assembly and IBT Inner Cover (REP 14.5).
7. Remove the Exit Transport Assembly (REP 8.40).
CAUTION
Be careful not to damage the connectors attached to the rear frame of the printer while remov-
ing the plate.
8. Remove the Developer Tie Plate (Figure 1).
Replacement
1. Reinstall the Developer Tie Plate in the reverse order of removal.

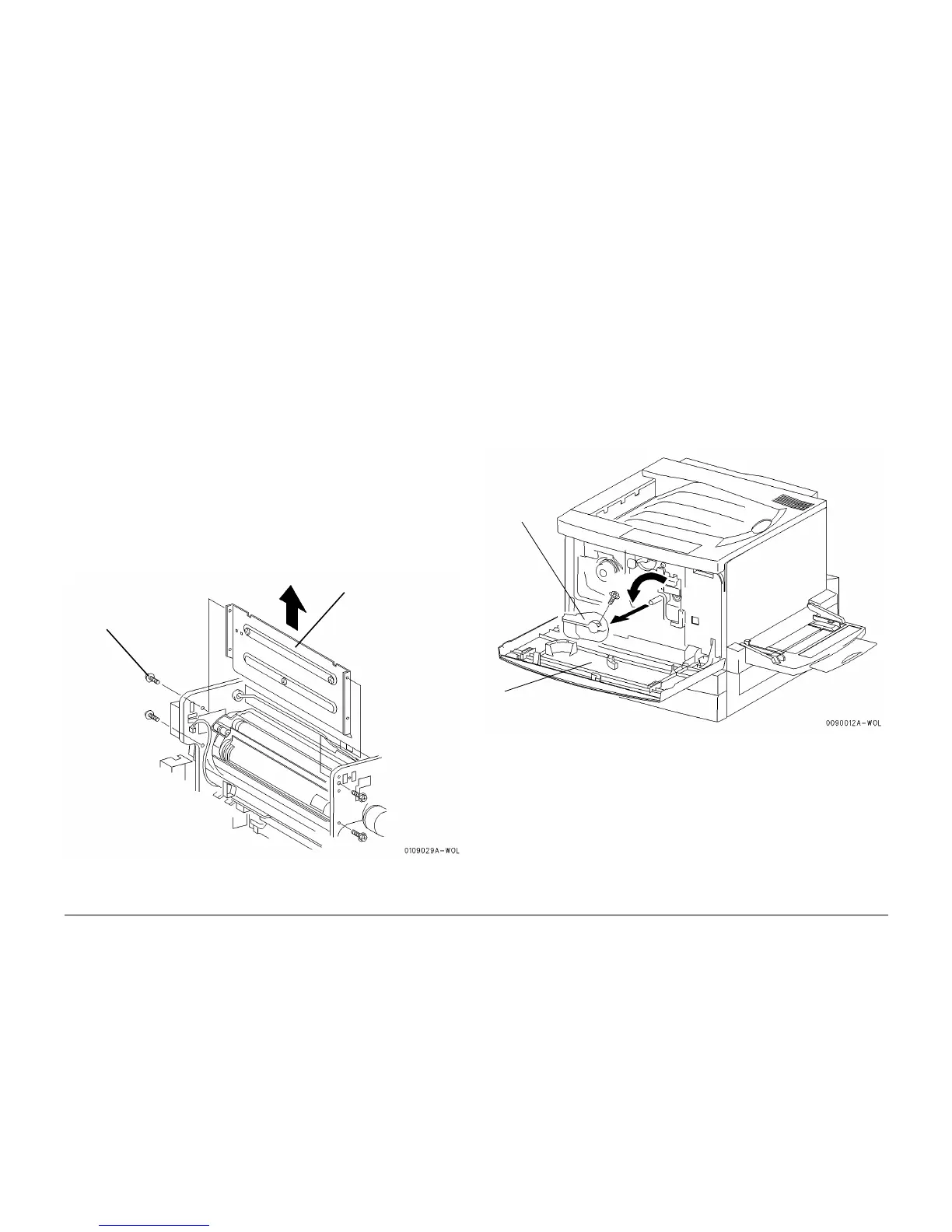

Figure 1 Removing the Developer Tie Plate
REP 9.15 Tension Lever
Parts List on PL 7.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Tension Lever (Figure 1).
Replacement
1. Reinstall the Tension Lever in the reverse order of removal.
Figure 1 Removing the Tension Lever
1
Remove the
screws at front
and rear
2
Remove the Developer
Tie Plate from the top of
the machine
1
Open the Front
Cover Assembly
2
Turn the lever,
remove the
screw, then
remove the
Tension Lever
