10/00
4-17
Phaser 790/DocuColor 2006
REP 4.3, REP 4.4
Repairs and Adjustments
Initial Issue
REP 4.3 Fuser Motor
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
3. Remove the Fuser Motor (Figure 1).
Replacement
1. Reinstall the Fuser Motor in the reverse order of removal.

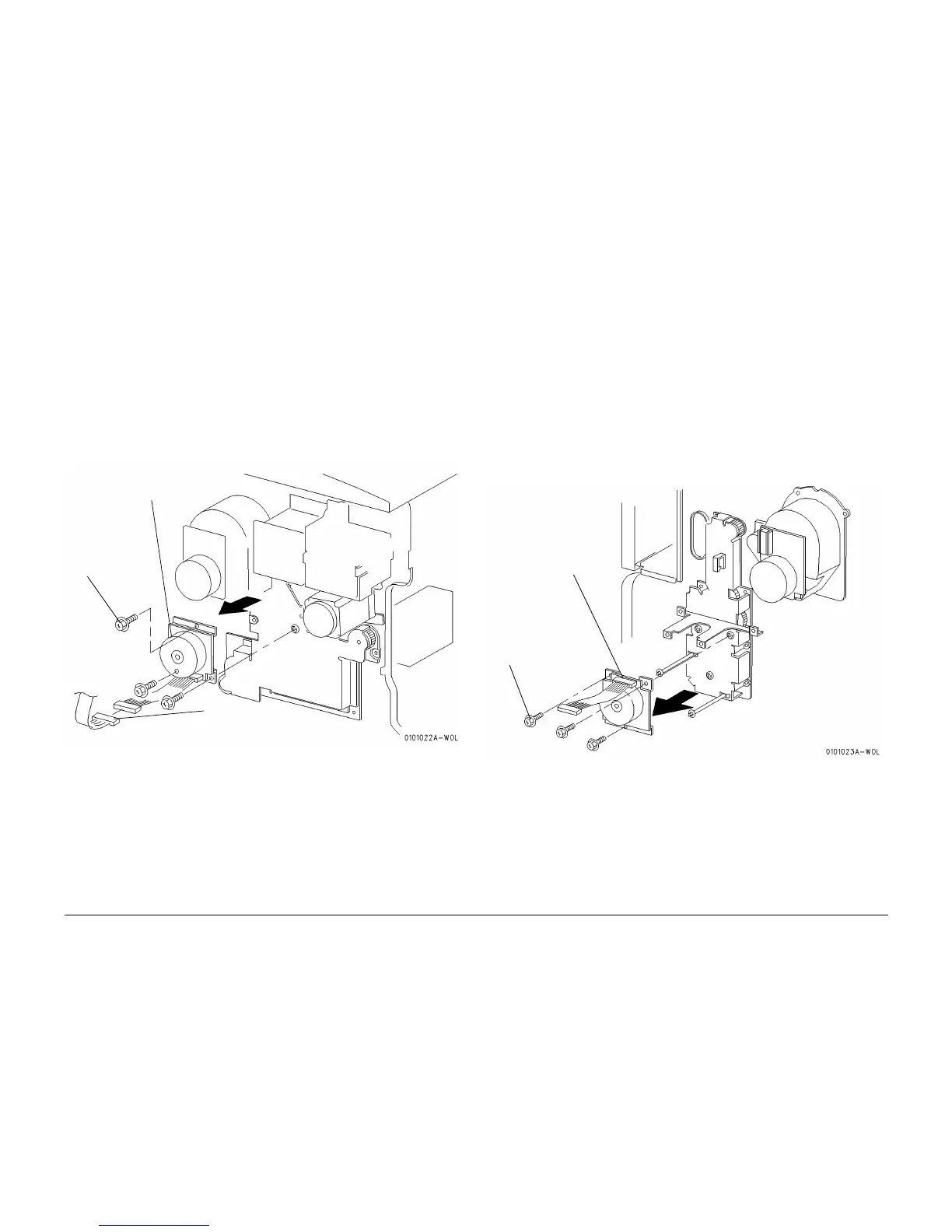

Figure 1 Removing the Fuser Motor
REP 4.4 Paper Handling Motor
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
3. Remove the Drive Motor PWB (REP 4.5).
4. Remove the Paper Handling Motor (Figure 1).
Replacement
1. Reinstall the Paper Handling Motor in the reverse order of removal.
Figure 1 Removing the Paper Handling Motor
1
Disconnect the con-
nector
2
Remove the
screws
3
Remove the
Fuser Motor
1
Remove the
screws
2
Remove the
Paper Handling
Motor
