Xerox Phaser 790 User Manual

10/00
5-40
Phaser 790/DocuColor 2006
PL 11.1
Initial Issue
Parts List

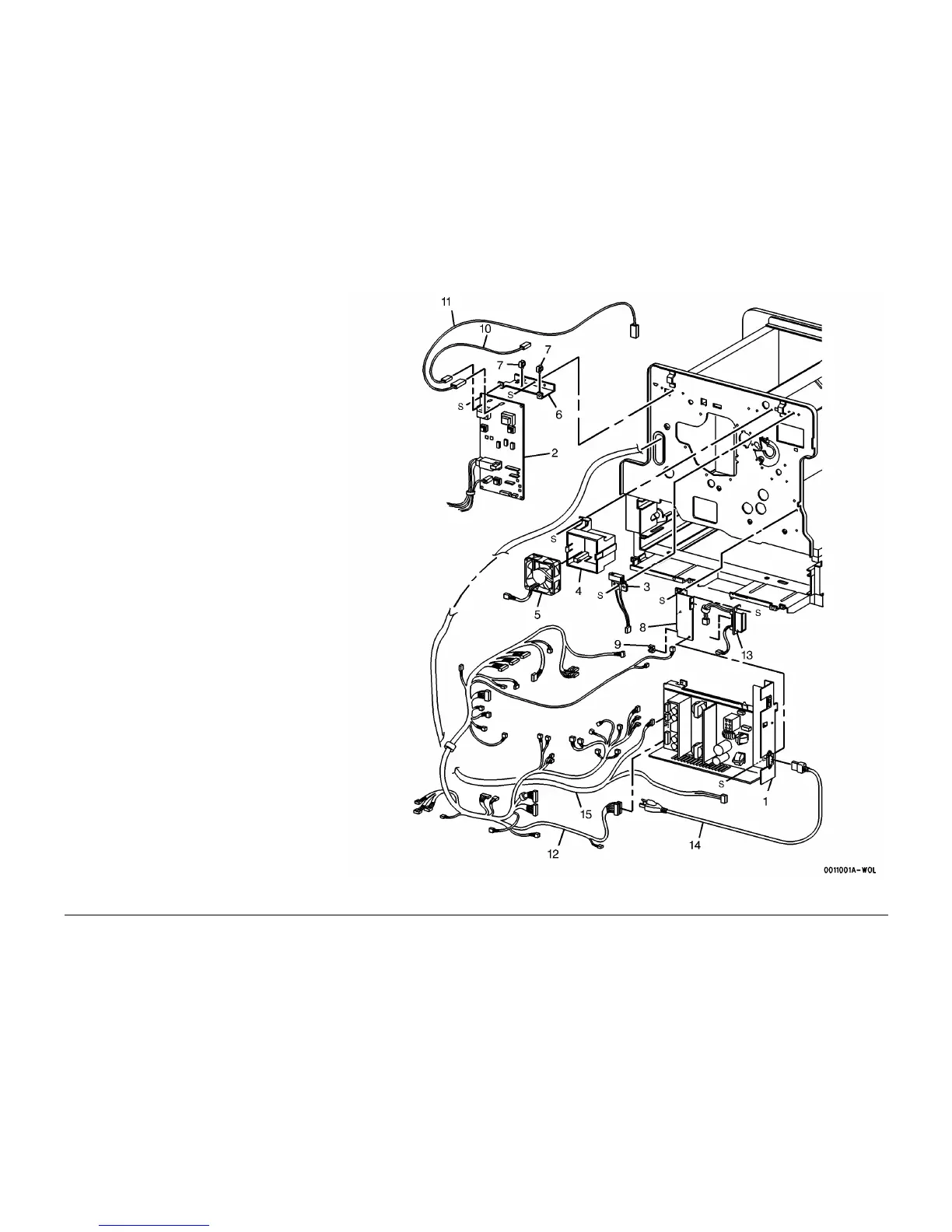

PL 11.1 Electrical (1 of 2)
Item Part Description
1 105K15680 Low Voltage Power Supply (LVPS)
110v (REP 1.1)
– 105K18600 Low Voltage Power Supply (LVPS)
220V (REP 1.1)
2 105K15690 High Voltage Power Supply (HVPS)
(REP 1.2)
3 110K07831 Top Cover Interlock (REP 1.3)
4 – Duct (Not Spared)
5 – Developer Fan (Not Spared) (REP
1.4)
6 – Bracket (Not Spared)
7 – Clamp (Not Spared)
8 – Bracket (Not Spared)
9 – Clamp (Not Spared)
10 – Bias Charge Roll (BCR) Wire (Not
Spared)
11 – Developer Wire (Not Spared)
12 162K53100 Main Harness
13 162K53130 Fuser Connector Harness
14 117K31400 Power Cord 110v
15 162K55490 Sorter Harness
