Xerox Phaser 790 User Manual

10/00
4-64
Phaser 790/DocuColor 2006
REP 8.6, REP 8.7
Initial Issue
Repairs and Adjustments
REP 8.6 Bypass Tray/Registration Assembly
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bypass Tray/Registration Assembly. (Figure 1)

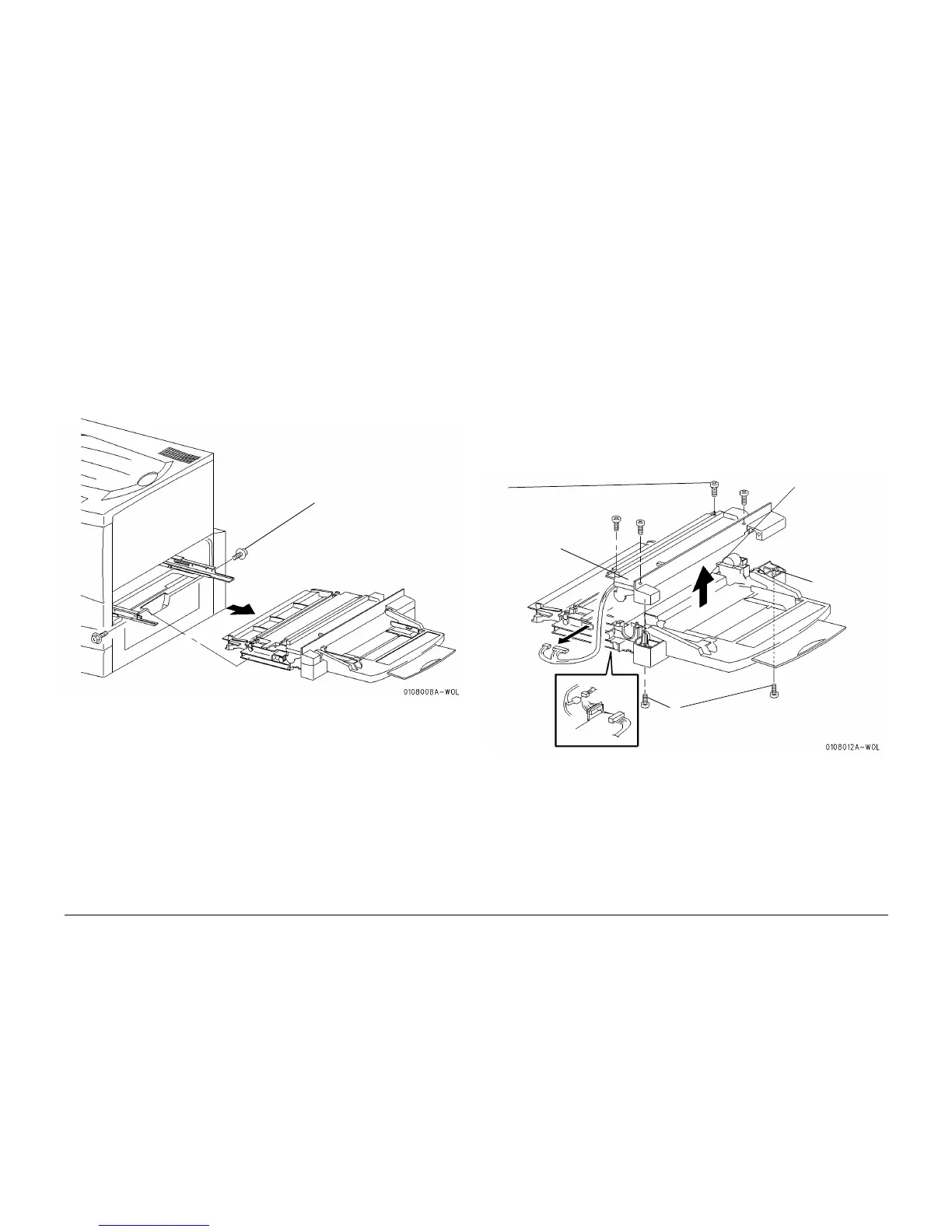

Figure 1 Removing the Bypass Tray/Registration Assembly
Replacement
1. Perform the procedure for removal in reverse.
REP 8.7 Bypass Tray Feed Assembly
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bypass Tray/Registration Assembly. (REP 8.6)
CAUTION
The Bypass Tray Feed Assembly and Base Assembly are connected by a harness. Be careful
not cause damage to the wires when performing the following.
3. Remove the Bypass Tray Feed Assembly. (Figure 1)
Figure 1 Accessing the Bypass Tray Feed Assembly
Replacement
1. Perform the procedure for removal in reverse.
1
Remove the two screws securing
the Bypass Tray/Registration
Assembly to the front and rear
rails and remove the assembly
by pulling it straight out
Bypass Tray
Feed Assembly
2
Remove the two screws securing
the Bypass Tray Feed Assembly
3
See Caution - Lift
the Feed Assem-
bly and turn it on its
harness, so it is
facing bottom-side-
up next to the Base
Assembly
Base Assembly
1
Remove four screws
