Xerox Phaser 790 User Manual

10/00
5-21
Phaser 790/DocuColor 2006
PL 4.7
Parts List
Initial Issue

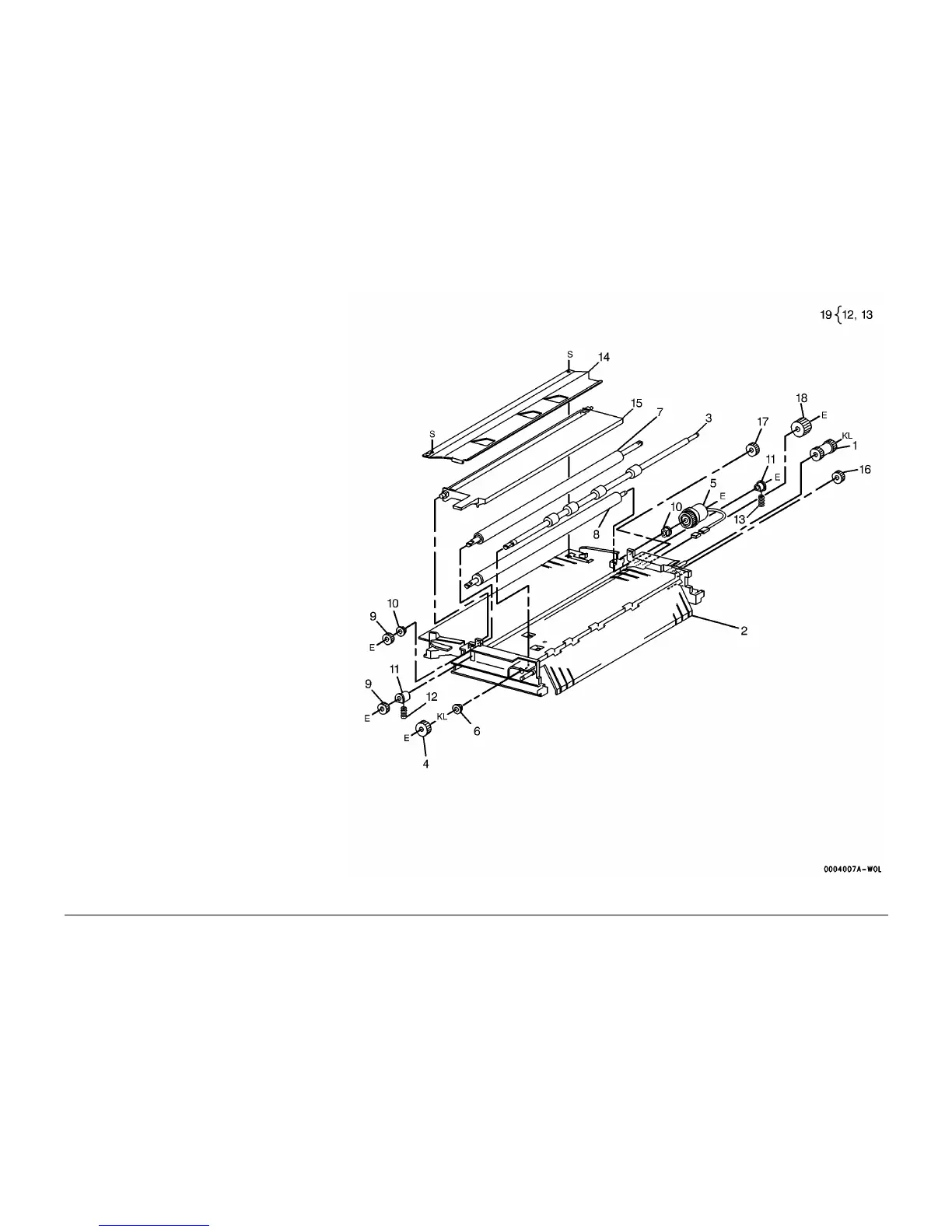

PL 4.7 Bypass Tray/ Paper Transport
(7 of 7)
Item Part Description
1 – Gear W-20 (P/O PL 4.6 Item 1)
2 – Registration Frame (P/O PL 4.6
Item 1)
3 059K14400 Preregistration Roll (REP 8.16)
4 – Gear (P/O PL 4.6 Item 1)
5 121K23430 Registration Clutch (REP 8.17)
6 – Bearing (P/O PL 4.6 Item 1)
7 059K14380 Registration Rubber Roll (REP
8.18)
8 – Registration Metal Roll
9 – Gear (P/O PL 4.6 Item 1)
10 – Bearing (P/O PL 4.6 Item 1)
11 – Bearing (P/O PL 4.6 Item 1)
12 – Front Spring (P/O PL 4.6 Item 1, PL
4.7 Item 19)
13 – Rear Spring (P/O PL 4.6 Item 1, PL
4.7 Item 19)
14 054E15200 Upper Registration Chute
15 054E15670 Lower Registration Chute
16 – Gear 16 (P/O PL 4.6 Item 1)
17 – Gear 24 (P/O PL 4.6 Item 1)
18 – Gear 26 (P/O PL 4.6 Item 1)
19 600K68610 Registration Spring Kit
