Xerox Phaser 790 User Manual

10/00
4-127
Phaser 790/DocuColor 2006
REP 10.19
Repairs and Adjustments
Initial Issue
REP 10.19 Fuser Chute Fan
Parts List on PL 8.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Fuser Assembly (REP 10.1).
3. Prepare to remove the Fuser Chute Fan (Figure 1).

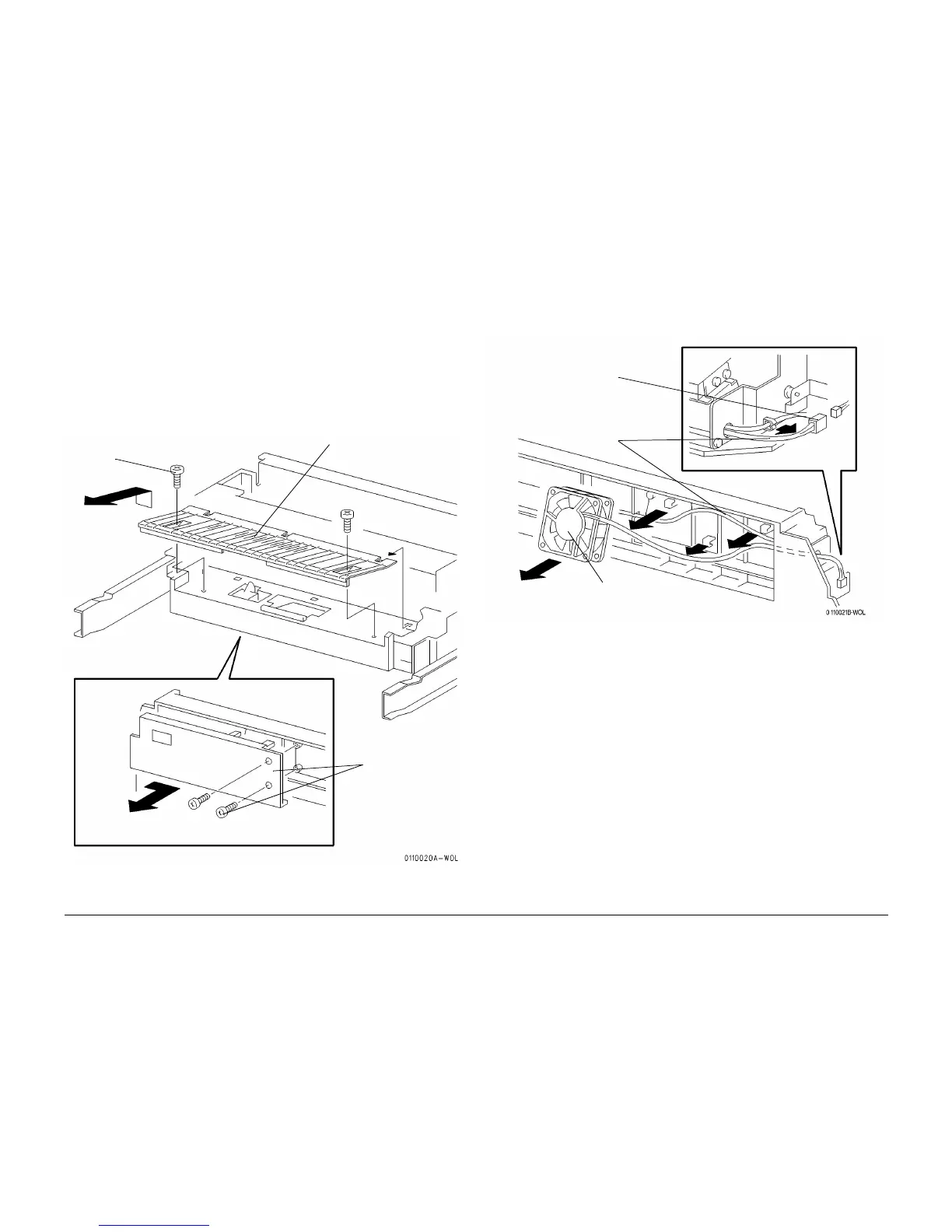

Figure 1 Preparing to Remove the Fuser Chute Fan
4. Remove the Fuser Chute Fan (Figure 2).
Replacement
1. Reinstall the Fuser Chute Fan in the reverse order of removal.
Figure 2 Removing the Fuser Chute Fan
2
Remove the Fuser Paper
Guide and Horizontal Chute
1
Remove the screws
3
Remove the screws,
and then remove
the Bottom Cover
1
Disconnect the
connector
2
Disengage the harness
from the clamps
3
Disengage and remove
the Fuser Chute Fan
