Xerox Phaser 790 User Manual

10/00
5-35
Phaser 790/DocuColor 2006
PL 8.6
Parts List
Initial Issue

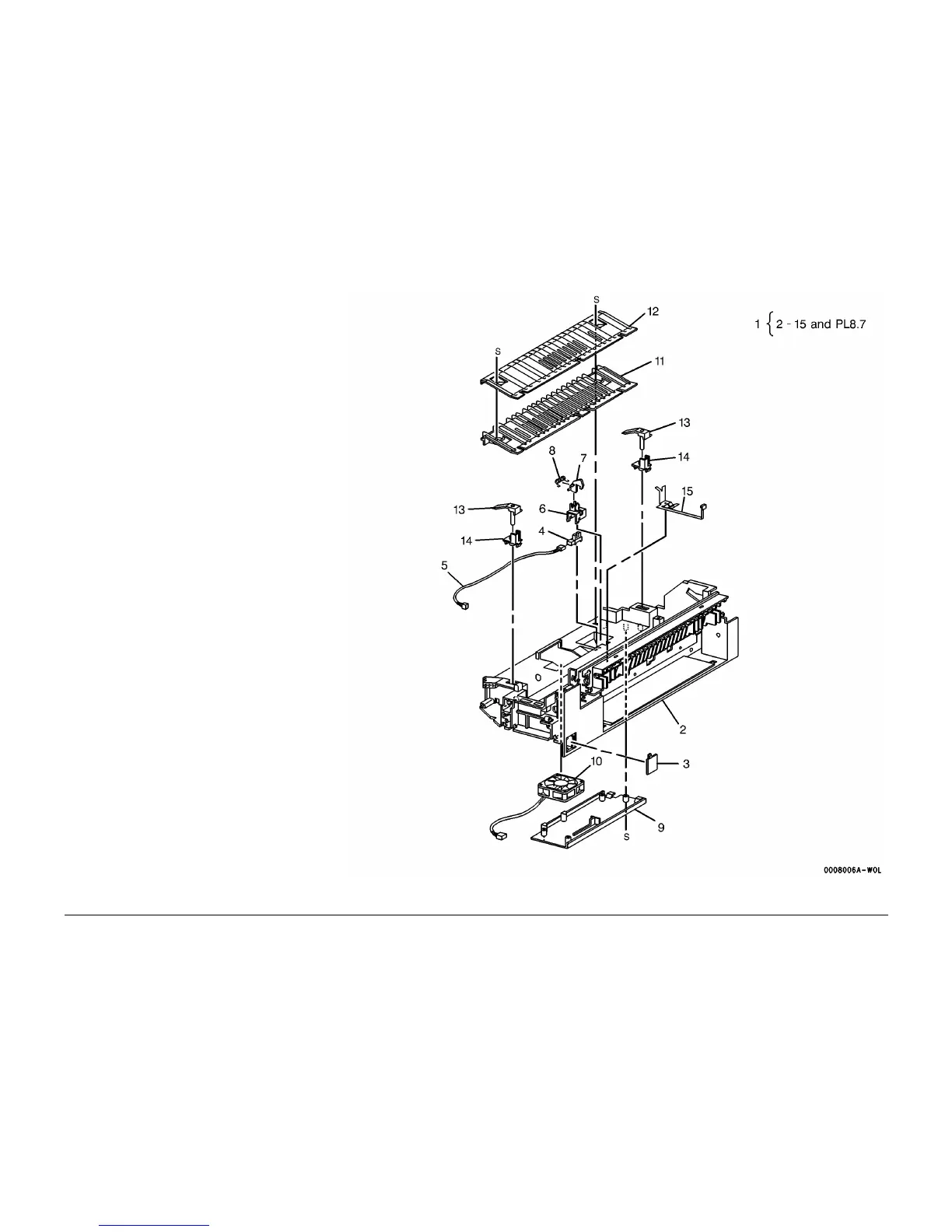

PL 8.6 Fusing (6 of 7)
Item Part Description
1 – Fuser Tray Subassembly (Not
Spared)
2 – Fuser Tray (Not Spared)
3 – Fuser Tray Cap (Not Spared)
4 130E81970 Fuser Entrance Sensor (REP
10.18)
5 – Harness (Not Spared)
6 – Sensor Bracket (Not Spared)
7 – Actuator (Not Spared)
8 – Spring (Not Spared)
9 – Bottom Cover (Not Spared)
10 127E81620 Fuser Chute Fan (REP 10.19)
11 – Fuser Paper Guide (Not Spared)
12 – Horizontal Chute (Not Spared)
13 029E30560 Cleaner Cam Follower
14 019E33881 Holder
15 – Ground Contact Spring (Not
Spared)
