Xerox Phaser 790 User Manual

10/00
5-74
Phaser 790/DocuColor 2006
PL 17.6
Initial Issue
Parts List

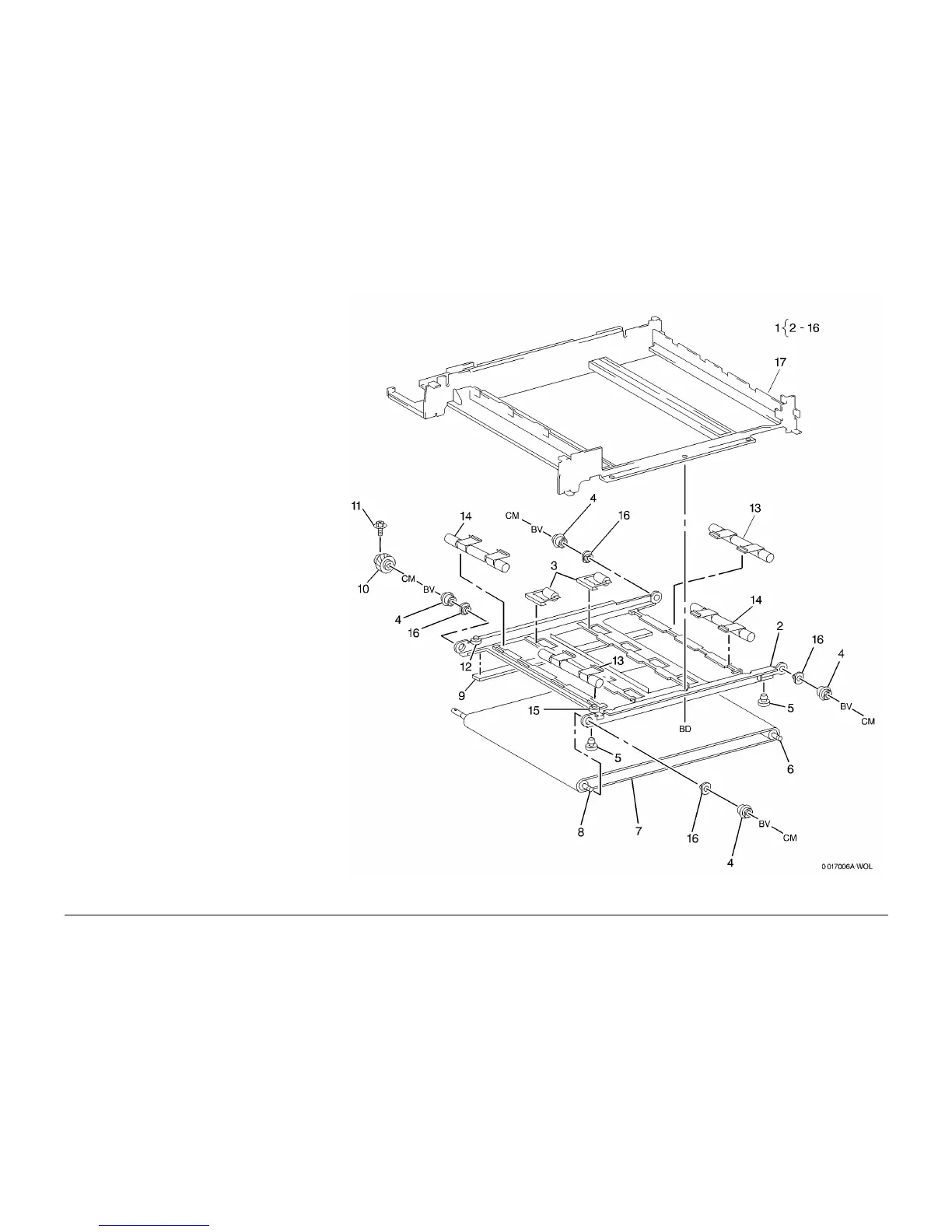

PL 17.6 Document Transport, Platen
Belt
Item Part Description
1 – Document Transport Assembly
(Not Spared) (REP 5.7 ADJ 5.4)
2 – Transport Frame (Not Spared)
3 059K13440 Pinch Roll
4 – Collar (Not Spared)
5 004E98270 Damper
6 022K39710 Idler Roll
7 023E15690 Platen Belt
8 022K39700 Drive Roll
9 – Deflector (Not Spared)
10 007E83141 Gear
11 – Screw (Not Spared)
12 – Rear Roll (Not Spared)
13 – Roll No 1 (Not Spared)
14 – Roll No 2 (Not Spared)
15 – Front Roll (Not Spared)
16 013E80970 Bearing
17 – ADF Main Framie (Not Spared)
