10/00
4-102
Phaser 790/DocuColor 2006
REP 9.13
Initial Issue
Repairs and Adjustments
REP 9.13 Cartridge Sensor
Parts List on PL 6.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Top Cover Assembly (REP 14.4).
3. Access the Cartridge Sensor (Figure 1).

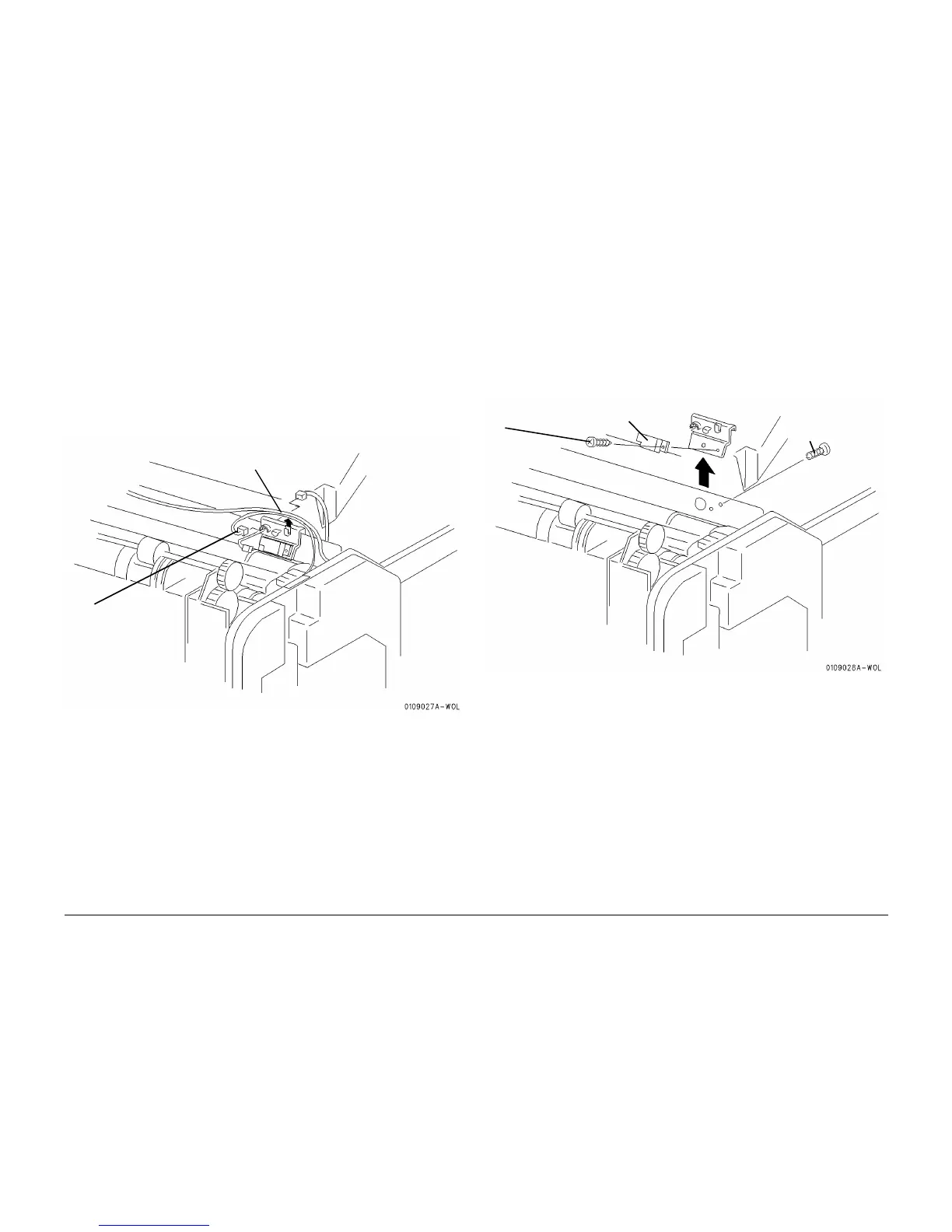

Figure 1 Accessing the Cartridge Sensor
4. Remove the Cartridge Sensor (Figure 2).
Replacement
CAUTION
Securely route the harness in the hooks of the Sensor Plate and Rotary Latch so there is no
slack in the harness.
1. Reinstall the Cartridge Sensor in the reverse order of removal.
Figure 2 Removing the Cartridge Sensor
1
Disconnect the con-
nector
2
Disengage the wires from the hook
on the Cartridge Sensor Plate
1
Remove the screw
securing the Car-
tridge Sensor Plate
2
Remove the
screw securing
the sensor
3
Remove the Cartridge
Sensor
