10/00
5-46
Phaser 790/DocuColor 2006
PL 13.4
Initial Issue
Parts List

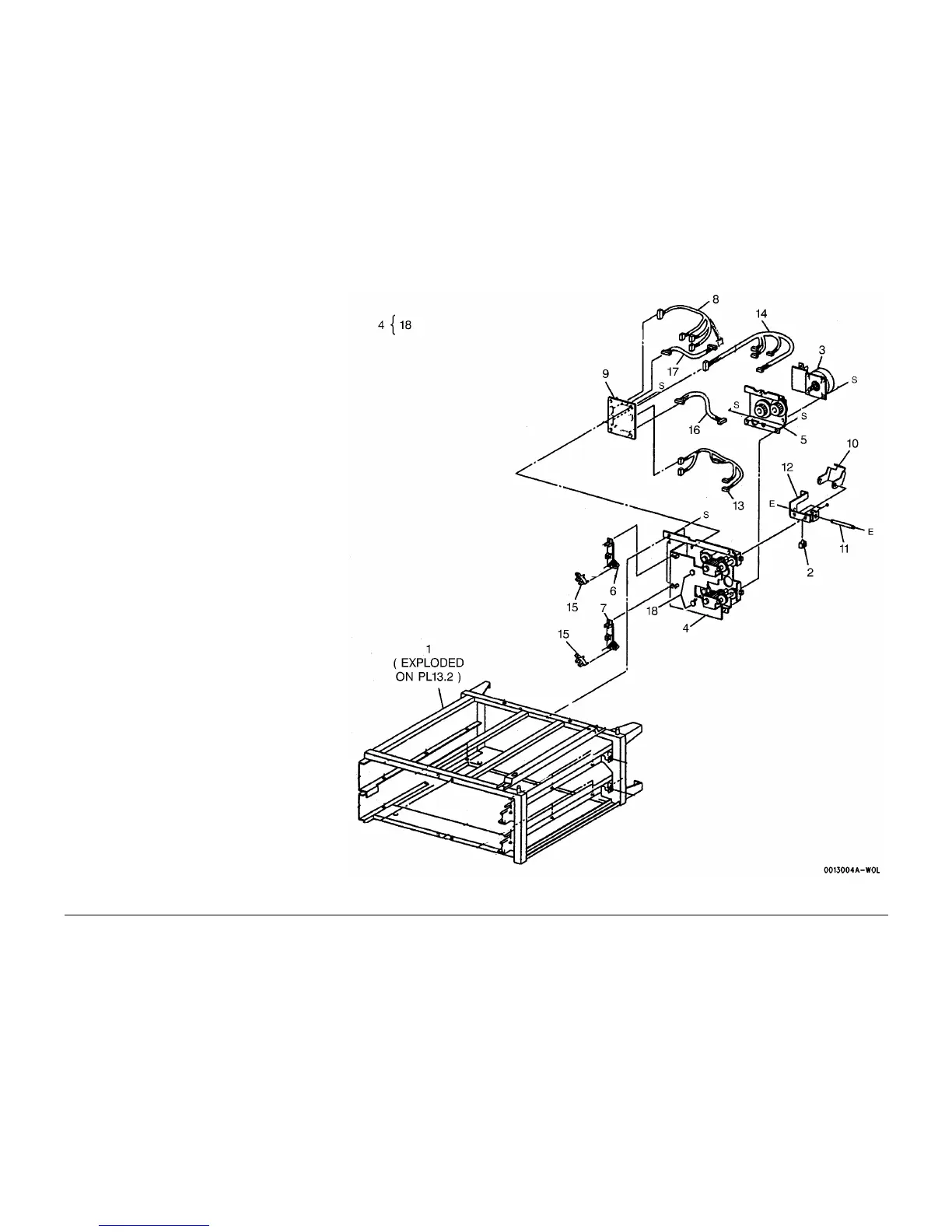

PL 13.4 Optional Feeder Assembly (4
of 9)
Item Part Description
1 – Feeder Frame (Not Spared)
2 – Clamp (Not Spared)
3 127K28260 Feeder Motor (REP 8.20)
4 007K85422 Feeder Drive Unit (REP 8.22)
5 – Bracket (Not Spared)
6 – Stopper (Not Spared)
7 – Stopper (Not Spared)
8 – Harness (Not Spared)
9 160K74520 Feeder PWB (REP 8.21)
10 – Bracket (Not Spared)
11 – Shaft (Not Spared)
12 – Bracket (Not Spared)
13 162K54090 Feeder Harness
14 162K54120 Size Harness
15 130E81970 Low Paper Sensor (REP 8.22)
16 162K54140 Upper Feeder Harness
17 162K54150 Lower Feeder Harness
18 – Lift Clutch (P/O PL 13.4)
To Next Page
