10/00
5-79
Phaser 790/DocuColor 2006
PL 19.2
Parts List
Initial Issue

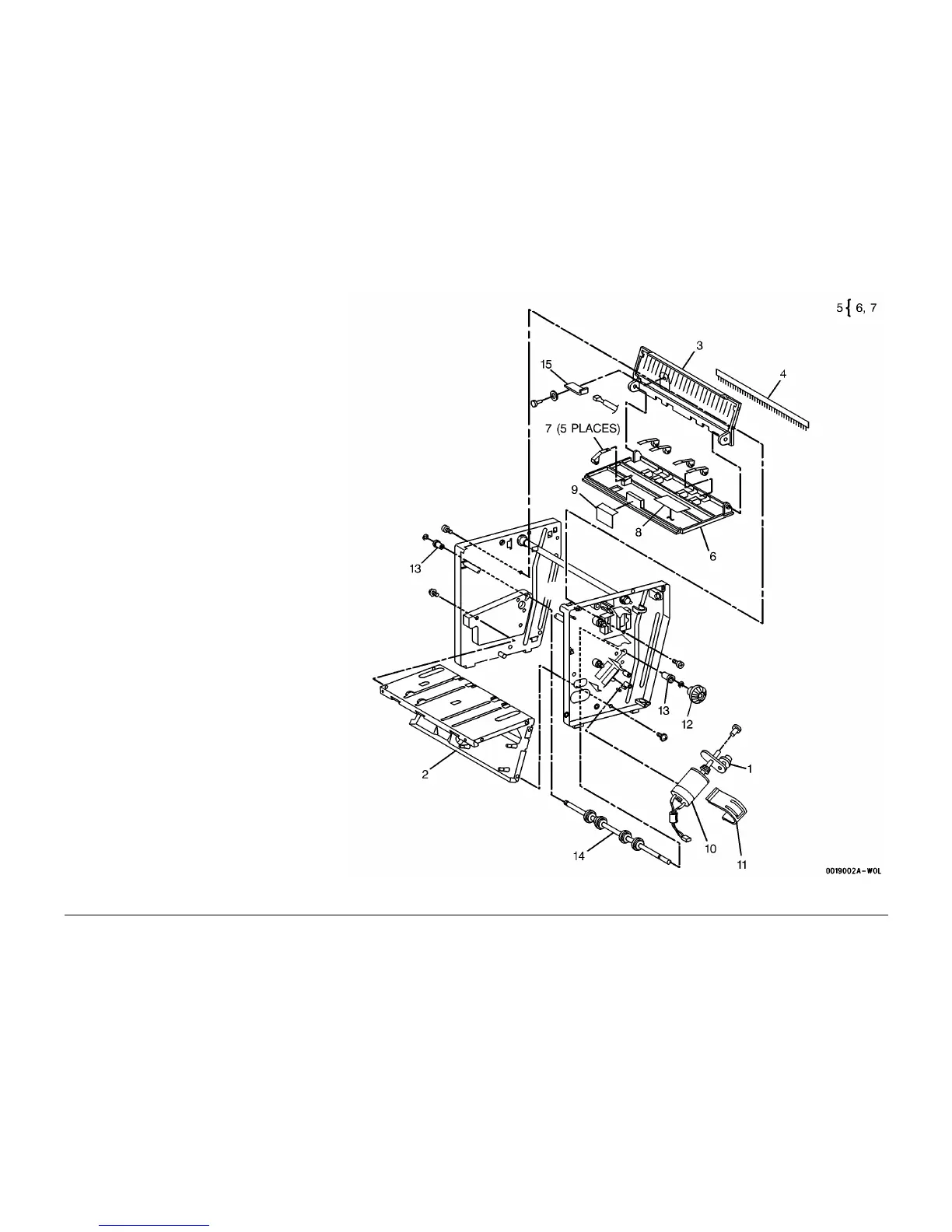

PL 19.2 Feed Motor, LVPS (1 of 2)
Item Part Description
1 007K86440 Gear
2 – Lower Guide (Not Spared)
3 – Upper Brace (Not Spared)
4 105E05930 Antistatic Brush
5 – Upper Chute Assembly (Not
Spared)
6 054K17830 Upper Chute
7 – Pinch Roll (Not Spared)
8 – Label (Not Spared)
9 – Label (Not Spared)
10 127E82330 Sorter Transport Motor (REP 11.4)
11 049E48940 Support
12 007E39240 Gear
13 013E85600 Bearing
14 022K61790 Exit Roll
15 130E84410 Sensor Receiver (REP 11.5)
To Next Page
