Xerox Phaser 790 User Manual

10/00
4-67
Phaser 790/DocuColor 2006
REP 8.12, REP 8.13
Repairs and Adjustments
Initial Issue
REP 8.12 Tray Empty Sensor
Parts List on PL 4.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bypass Tray/Registration Assembly. (REP 8.6)
3. Remove the Bypass Tray Feed Assembly. (REP 8.7)
4. Remove the Tray Empty Sensor. (Figure 1)

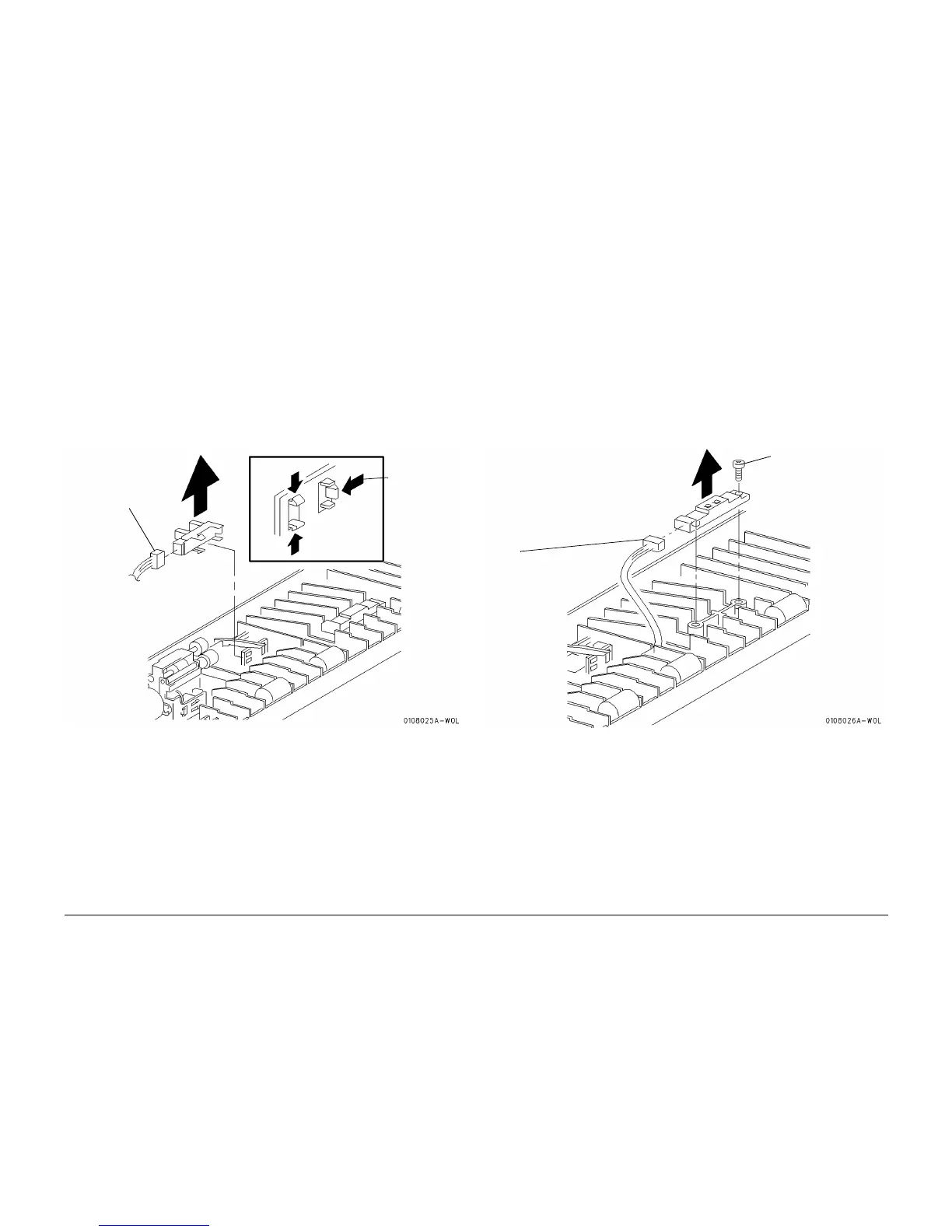

Figure 1 Removing the Tray Empty Sensor
Replacement
1. Perform the procedure for removal in reverse.
REP 8.13 Pitch Sensor
Parts List on PL 4.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bypass Tray/Registration Assembly. (REP 8.6)
3. Remove the Bypass Tray Feed Assembly. (REP 8.7)
4. Remove the Pitch Sensor (Figure 1)
Figure 1 Removing the Pitch Sensor
Replacement
1. Perform the procedure for removal in reverse.
1
Disconnect
the connector
2
Release the
locking tabs
and remove the
Tray Empty
Sensor
1
Disconnect the
connector
2
Remove the screw and
the Pitch Sensor
