Xerox Phaser 790 User Manual

10/00
4-129
Phaser 790/DocuColor 2006
REP 11.1, REP 11.2
Repairs and Adjustments
Initial Issue
REP 11.1 Sorter
Parts List on PL 19.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Sorter from the IOT (Figure 1).

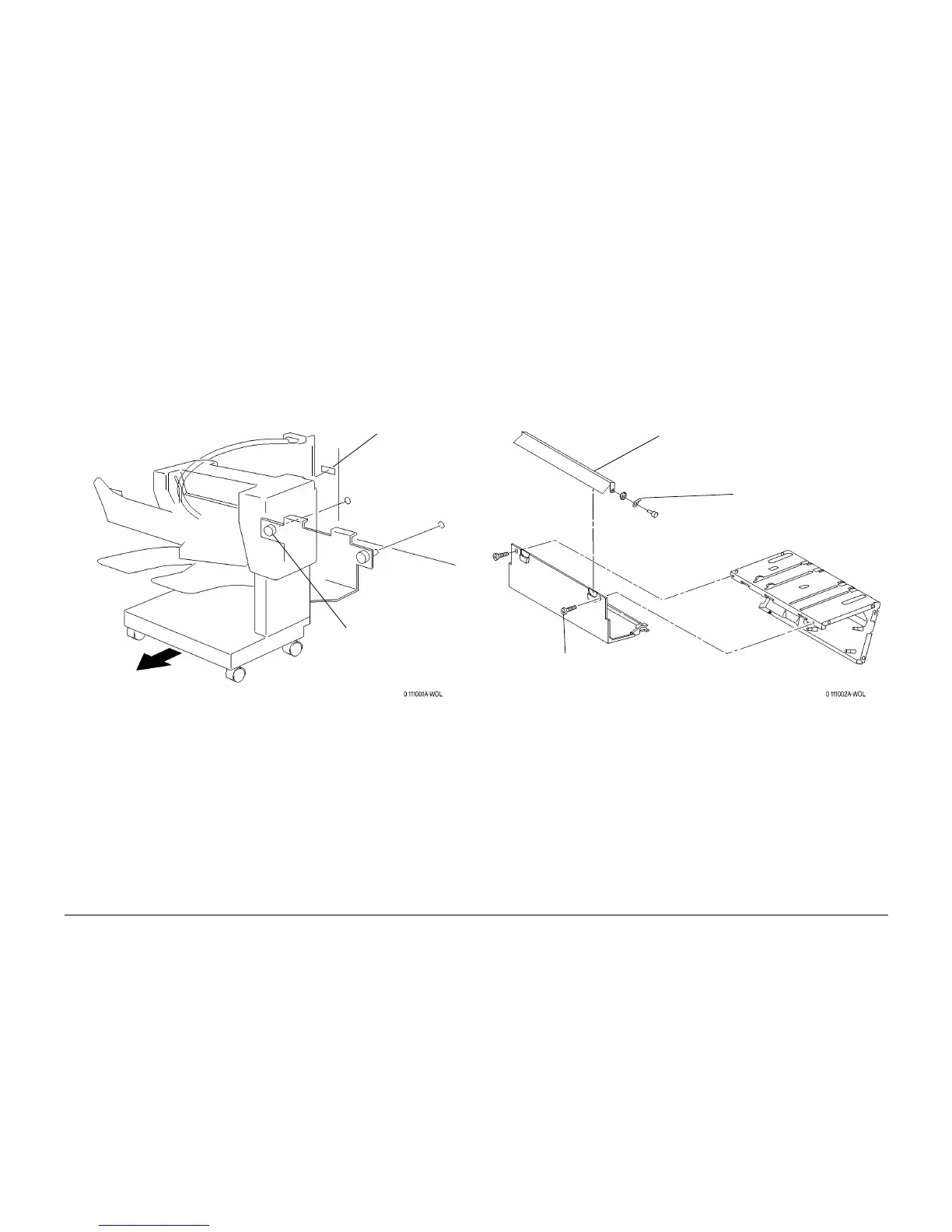

Figure 1 Removing the Sorter
Replacement
1. Perform the procedure for removal in reverse.
REP 11.2 Bottom Cover
Parts List on PL 19.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bottom Cover (Figure 1).
Figure 1 Removing the Bottom Cover
Replacement
1. Perform the procedure for removal in reverse.
1
Disconnect the
connector
2
Loosen the thumb-screws
(2) and separate the sorter
from the IOT
1
Disconnect the ground wire
from the Entrance Guide
2
Pull the Entrance guide slots from their
retainers in the Bottom Cover and remove
the Entrance Guide
3
Remove the screws (2) and the
Bottom Cover
