Xerox Phaser 790 User Manual

10/00
5-72
Phaser 790/DocuColor 2006
PL 17.4
Initial Issue
Parts List

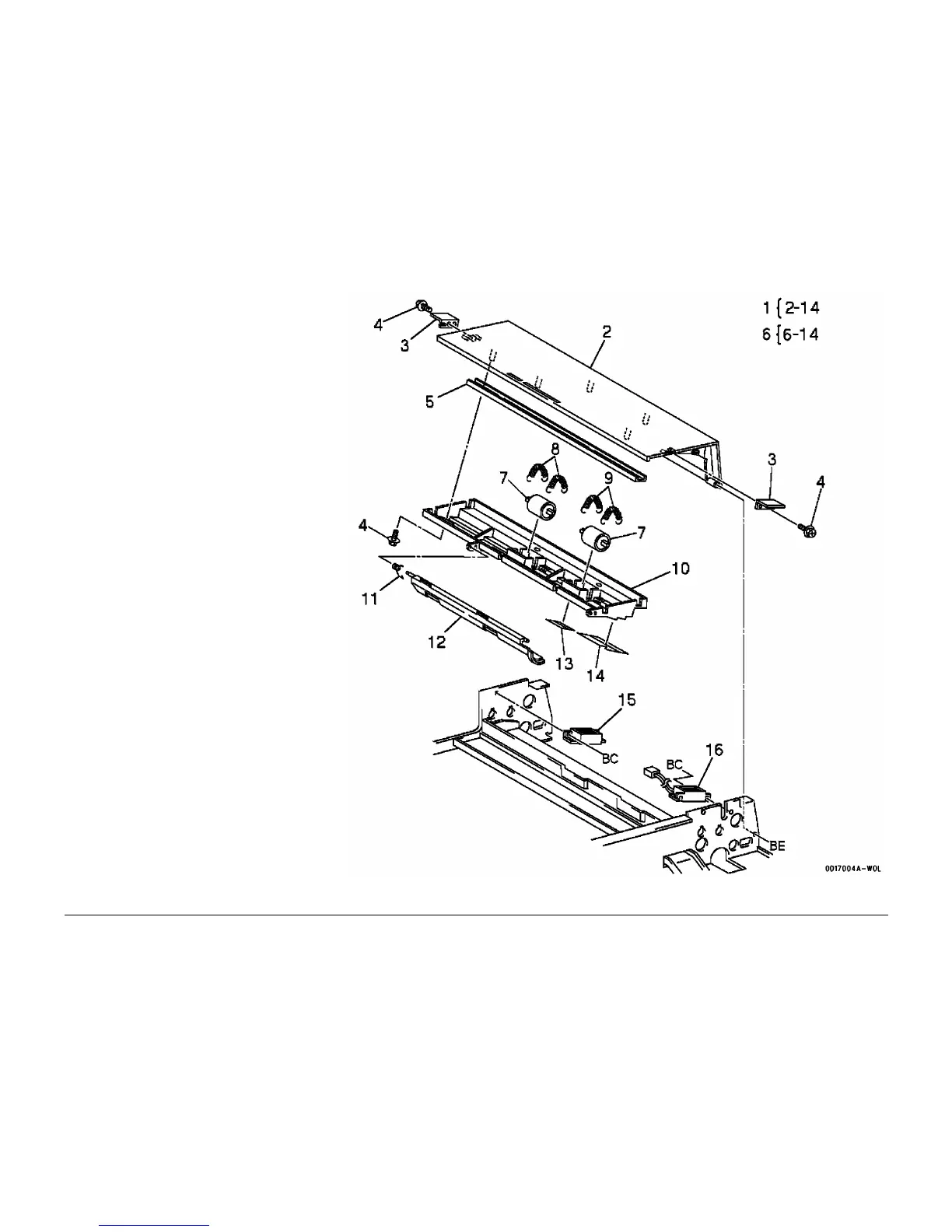

PL 17.4 Feeder Upper Chute
Assembly, Interlock Switch
Item Part Description
1 802K14680 ADF Upper Chute Cover Assembly
2 – Upper Cover (P/O PL 17.4 Item 1)
3 – Plate (P/O PL 17.4 Item 1)
4 026E82620 Screw
5 – Plate (P/O PL 17.4 Item 1)
6 – Upper Chute Assembly (P/O PL
17.4 Item 1)
7 600K84250 Retard Roll Kit (2/Kit)
8 009E26941 Spring
9 009E31711 Spring
10 054E84730 Upper Chute
11 009E64490 Spring
12 – Nudger Chute (P/O PL 17.4 Item 1)
13 – Guard (P/O PL 17.4 Item 1)
14 – Guard (P/O PL 17.4 Item 1)
15 121E90450 Magnet
16 110K94790 Feeder Cover Interlock
