REP 11.4 Sorter Transport Motor
Parts List on PL 19.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover.
3. Remove the Front Cover.
4. Disconnect the motor connector from the PWB and release the wires (Figure 1)

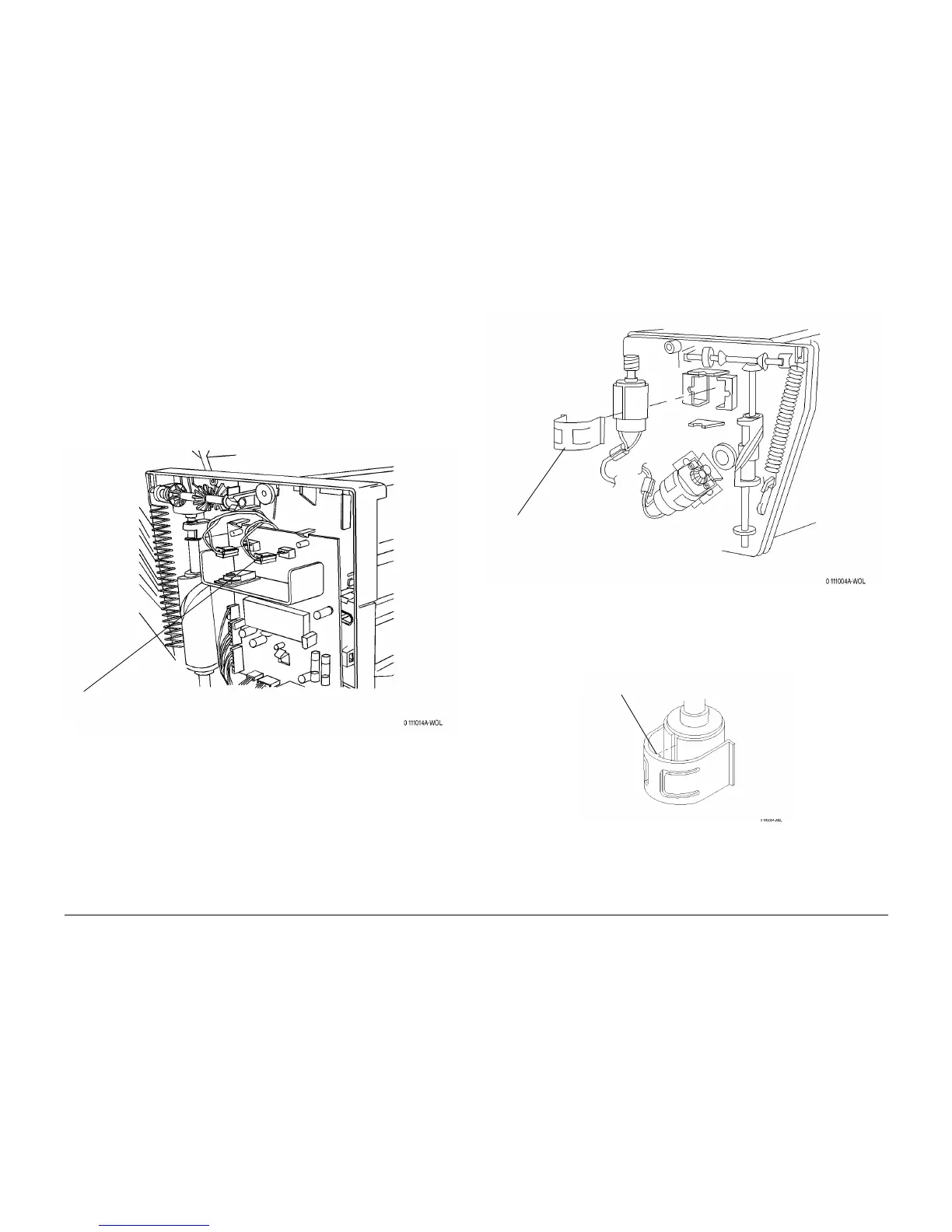

Figure 1 Disconnecting the Motor
5. Remove the Sorter Transport Motor (Figure 2).
Figure 2 Removing the Sorter Transport Motor
Replacement
1. Perform the procedure for removal in reverse.
2. Make sure the Support is properly positioned to the Motor (Figure 3).
Figure 3 Motor Support Positioning
1
Disconnect the Sorter Transport Motor connector, release the wires from
the harness and feed the wires back through the Sorter to the motor
1
Pinch the Motor Support
to release it from the
Sorter and remove the
support and motor
Tab positioned
to notch
