Xerox Phaser 790 User Manual

10/00
4-60
Phaser 790/DocuColor 2006
REP 8.1, REP 8.2
Initial Issue
Repairs and Adjustments
6. Remove the Turn Roll. (Figure 3)

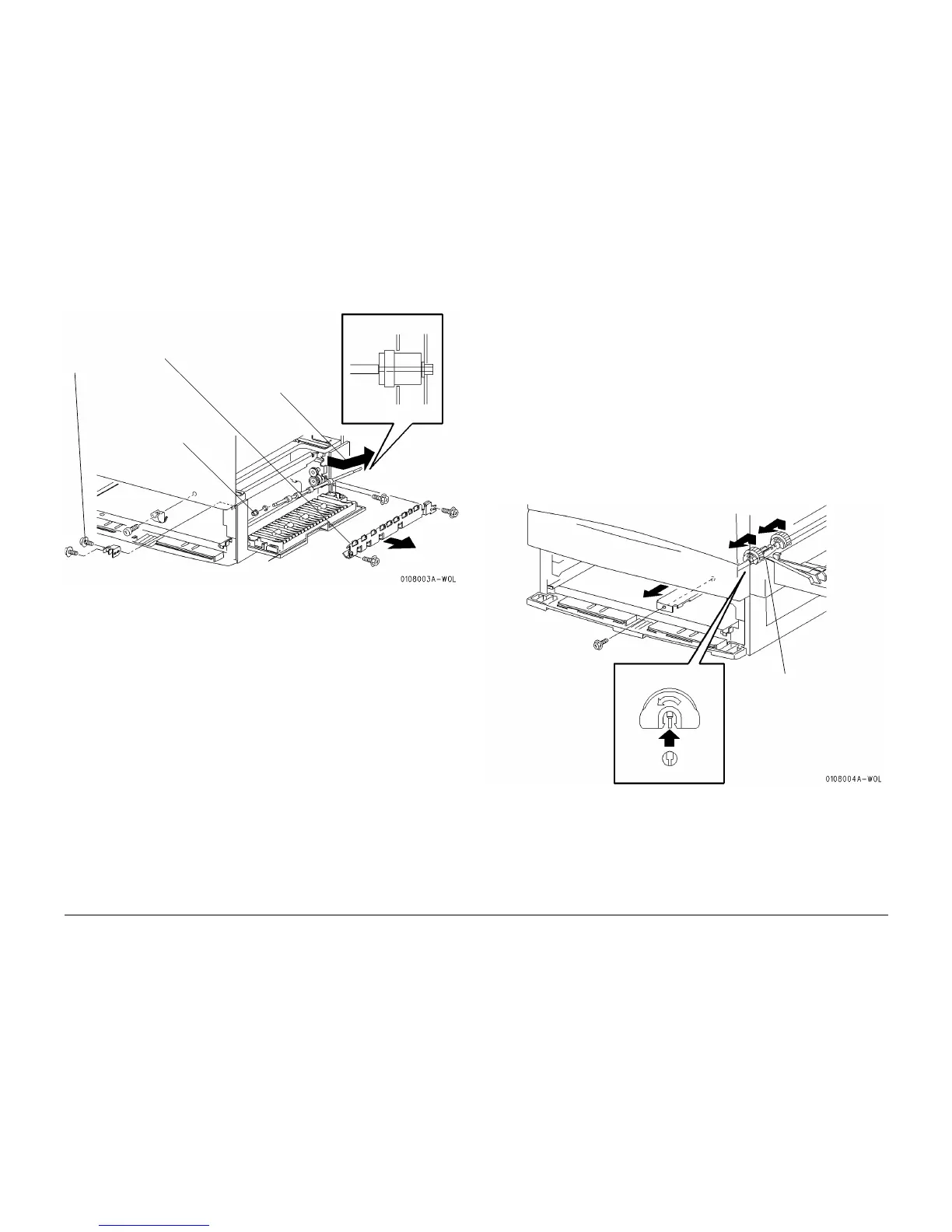

Figure 3 Removing the Turn Roll
Replacement
1. Perform the procedure for removal in reverse.
NOTE: When installing the Stopper for the paper tray, position the paper tray and secure
the Stopper to the position where it securely holds the paper tray in place.
REP 8.2 Feed Roll
Parts List on PL 3.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Tray 1 Assembly. (REP 7.6)
3. Remove the Front Mid Cover (REP 14.2), or the Duplex Tray Assembly. (REP 8.26)
4. Remove the Sensor Bracket. (REP 7.2).
WARNING
Use extreme care when working in the vicinity of the exposed metal frame parts. The
edges of the parts may be very sharp and could cause serious injury.
5. Remove the Feed Roll. (Figure 1).
Figure 1 Removing the Feed Roll
Replacement
1. Perform the procedure for removal in reverse.
NOTE: Install the Feed Roll in accordance with the rotation direction indicated by the
arrow on the side of the Feed Roll.
1
Remove two
screws and the
paper tray Stopper
(PL 3.1)
3
Remove the E-ring
securing the Turn Roll.
Slide the Turn Front
Bearing towards the
rear of the machine
4
Slide the Turn Roll
forward and remove
it from the Turn
Clutch. Pivot the
rear outward and
remove the Turn
Roll
2
Remove two
screws and the
Outer Turn Chute
1
See WARNING -
Insert your hand in the
opening provided for
the Tray 1 Assembly
and unhook and
remove the Feed Roll
