Phaser 790/DocuColor 2006
PL 17.5
Parts List
Initial Issue

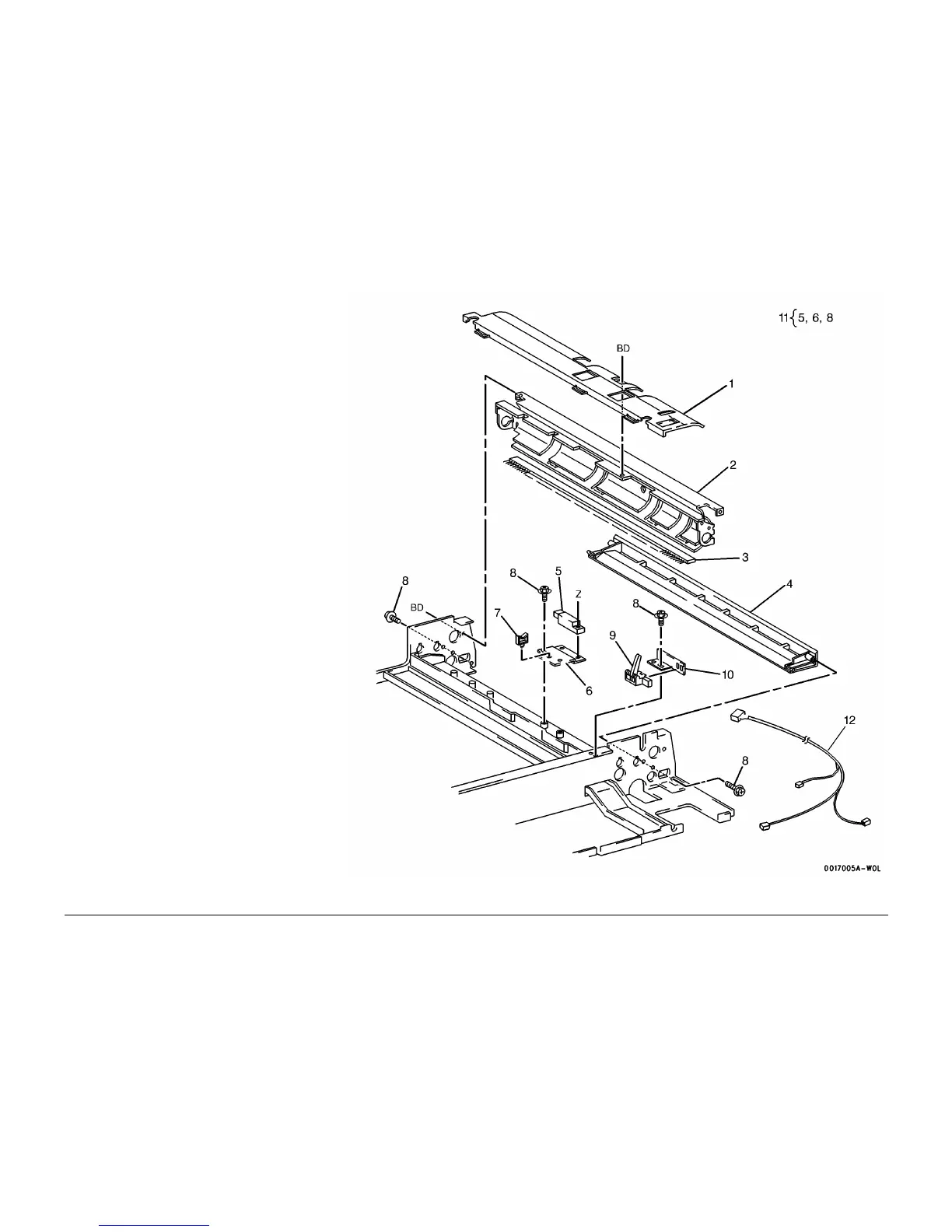

PL 17.5 Feeder Lower Chute,
Registration Sensor
Item Part Description
1 – Lower Chute (Not Spared)
2 – Registration Chute (Not Spared)
3 105E92310 Antistatic Brush
4 002E61020 Lower Cover
5 130E81150 ADF Registration Sensor (ADJ 5.4)
6 – Bracket (P/O PL 17.5 Item 11)
7 – Clamp (Not Spared)
8 026E82620 Screw
9 130K82780 Document Set Sensor (ADJ 5.4)
10 – Bracket (Not Spared)
11 130K61380 Registration Sensor Assembly
(ADJ 5.4)
12 – Harness (Not Spared)
