Xerox Phaser 790 User Manual

10/00
5-51
Phaser 790/DocuColor 2006
PL 13.9
Parts List
Initial Issue

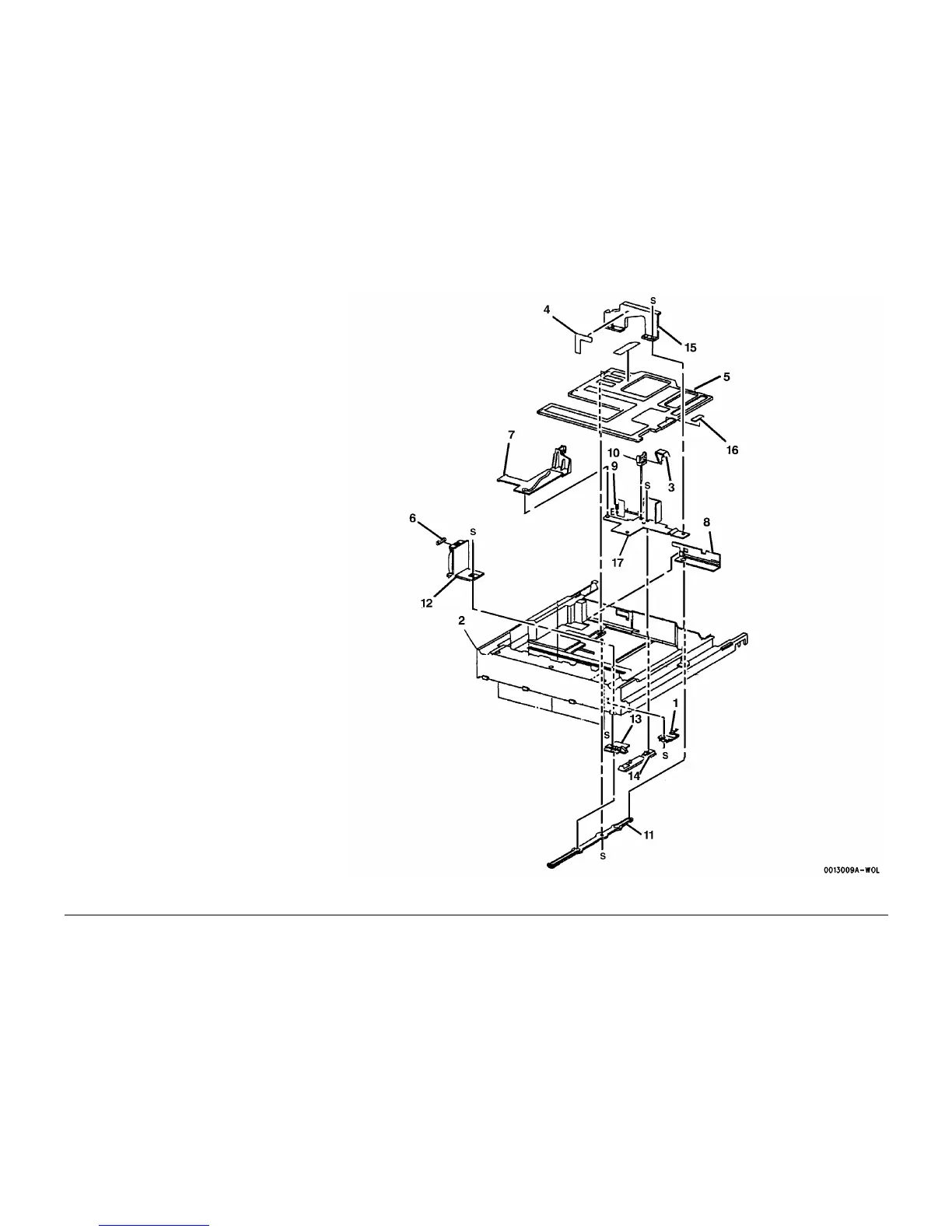

PL 13.9 Optional Feeder Assembly (9
of 9)
Item Part Description
1 – Paper Guide (P/O PL 13.8 Item 1)
2 – Tray Housing (P/O PL 13.8 Item 1)
3 – Side Guide Lock Knob (P/O PL
13.8 Item 1)
4 – Max Label (P/O PL 13.8 Item 1)
5 – Lift Plate (P/O PL 13.8 Item 1)
6 – Guide Spring (P/O PL 13.8 Item 1)
7 – End Guide Actuator (P/O PL 13.8
Item 1)
8 – Side Guide Actuator (P/O PL 13.8
Item 1)
9 – Spring (P/O PL 13.8 Item 1)
10 – Level (P/O PL 13.8 Item 1)
11 – End Guide Link (P/O PL 13.8 Item
1)
12 – End Guide (P/O PL 13.8 Item 1)
13 – End Guide Plate (P/O PL 13.8 Item
1)
14 – Side Guide Plate (P/O PL 13.8 Item
1)
15 – Side Guide (P/O PL 13.8 Item 1)
16 – Bottom Pad (P/O PL 13.8 Item 1)
17 – Guide Plate (P/O PL 13.8 Item 1)
