Phaser 790/DocuColor 2006
PL 15.1
Parts List
Initial Issue

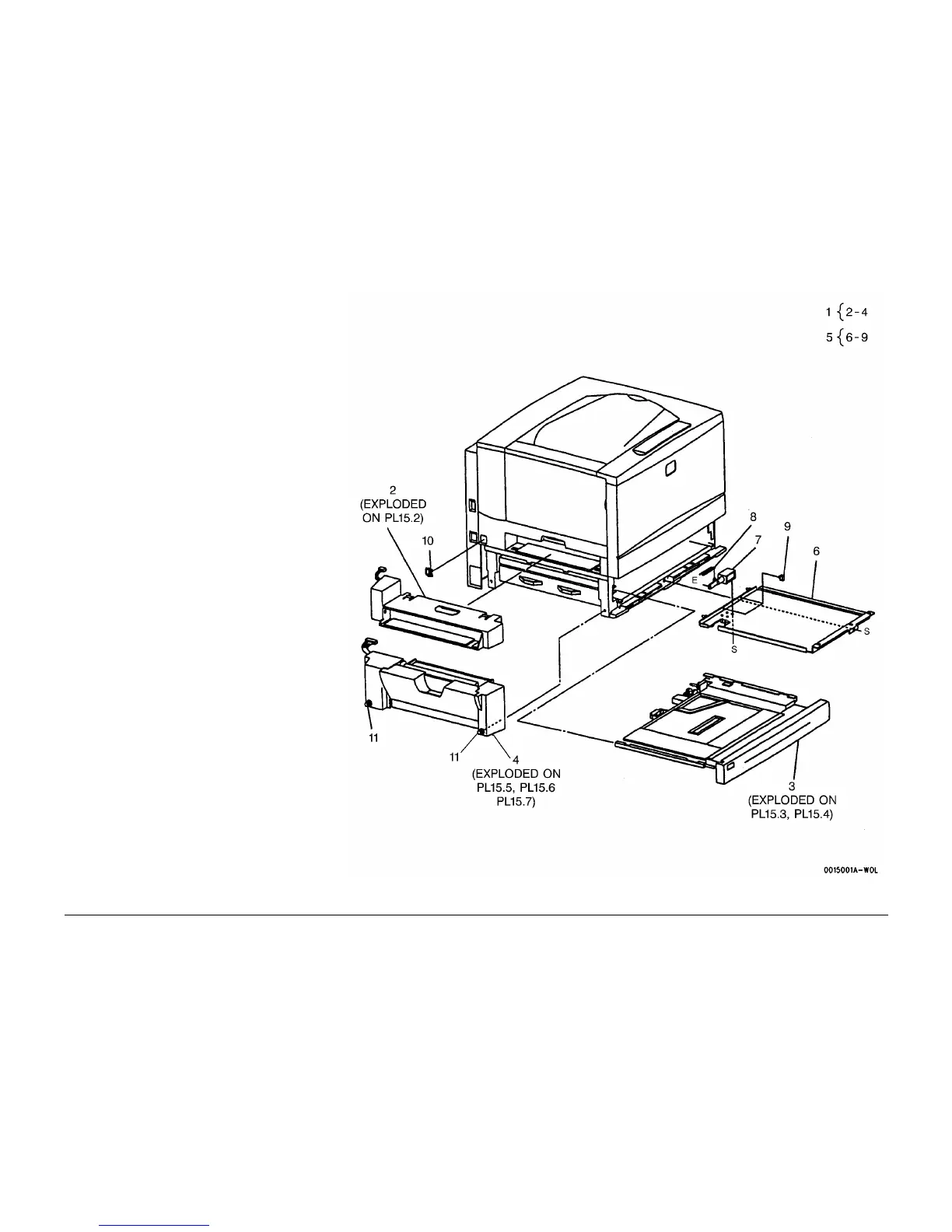

PL 15.1 Duplex Assembly (1 of 7)
Item Part Description
1 – Duplex Final Assembly (Not
Spared)
2 059K18960 Inverter Upper Assembly
3 059K19050 Duplex Tray Assembly
4 059K19120 Inverter Lower Assembly
5 – Lower Chute Assembly (Not
Spared)
6 – Lower Chute (Not Spared)
7 121K21570 Duplex Nip Solenoid (REP 8.39)
8 – Spring (Not Spared)
9 – Clamp (Not Spared)
10 021E97232 Cover
11 026E74100 Mounting Screws
