Xerox Phaser 790 User Manual

10/00
4-78
Phaser 790/DocuColor 2006
REP 8.29
Initial Issue
Repairs and Adjustments
REP 8.29 Duplex Exit Sensor
Parts List on PL 15.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Duplex Tray Assembly. (REP 8.27)
3. Remove the Front Cover of the Duplex Tray Assembly.
4. Remove the Duplex Registration Chute. (Figure 1)

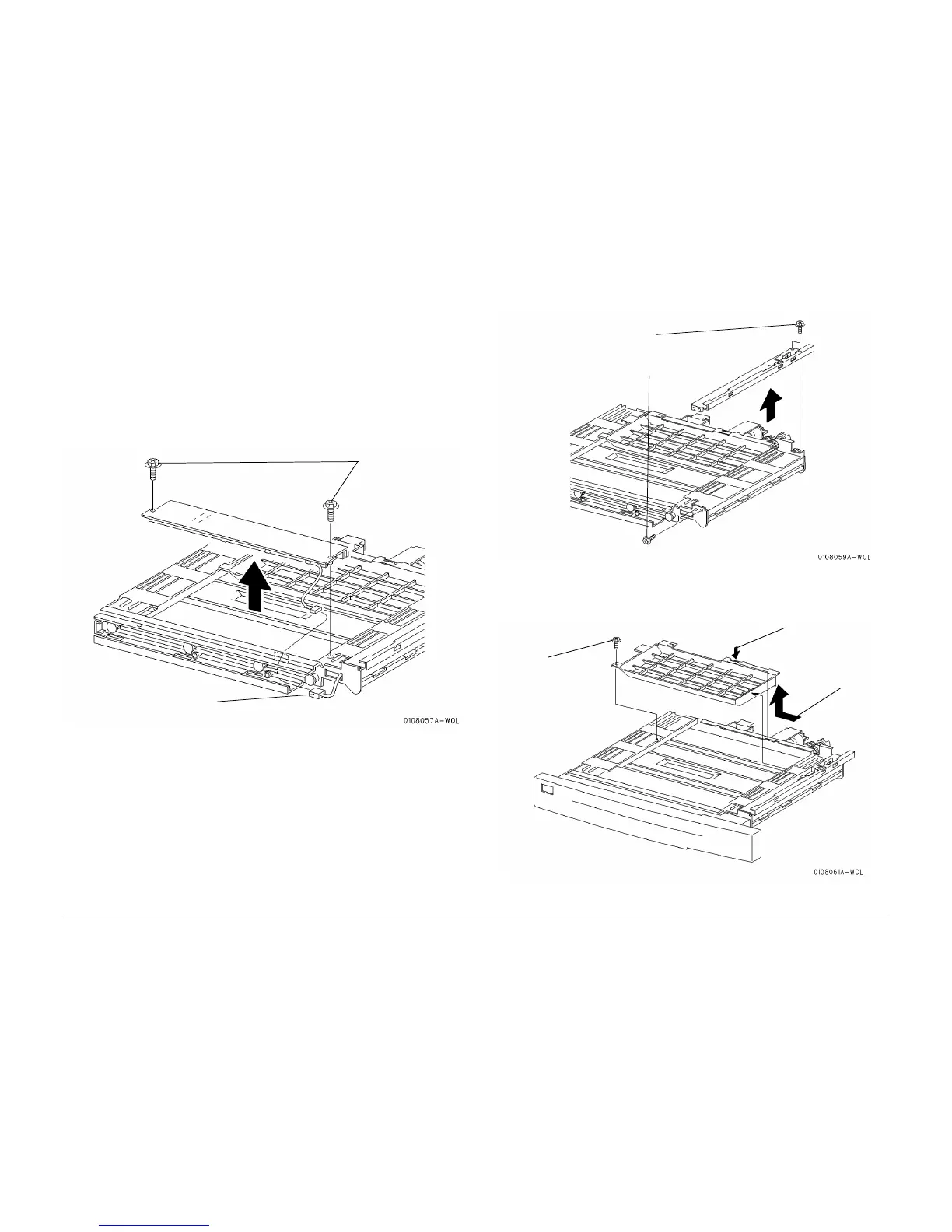

Figure 1 Removing the Duplex Registration Chute
5. Remove the Rail Assembly. (Figure 2)
Figure 2 Removing the Rail Assembly
6. Remove the Chute Support. (Figure 3)
Figure 3 Removing the Chute Support
1
Disconnect the connector
2
Remove the two
screws and the
Duplex Registration
Chute
1
Remove the screws
and remove the Rail
Assembly
1
Remove the
screw
2
Press and hold the
release tab, while
moving the Chute
Support in the
direction indicated
