10/00
5-44
Phaser 790/DocuColor 2006
PL 13.2
Initial Issue
Parts List

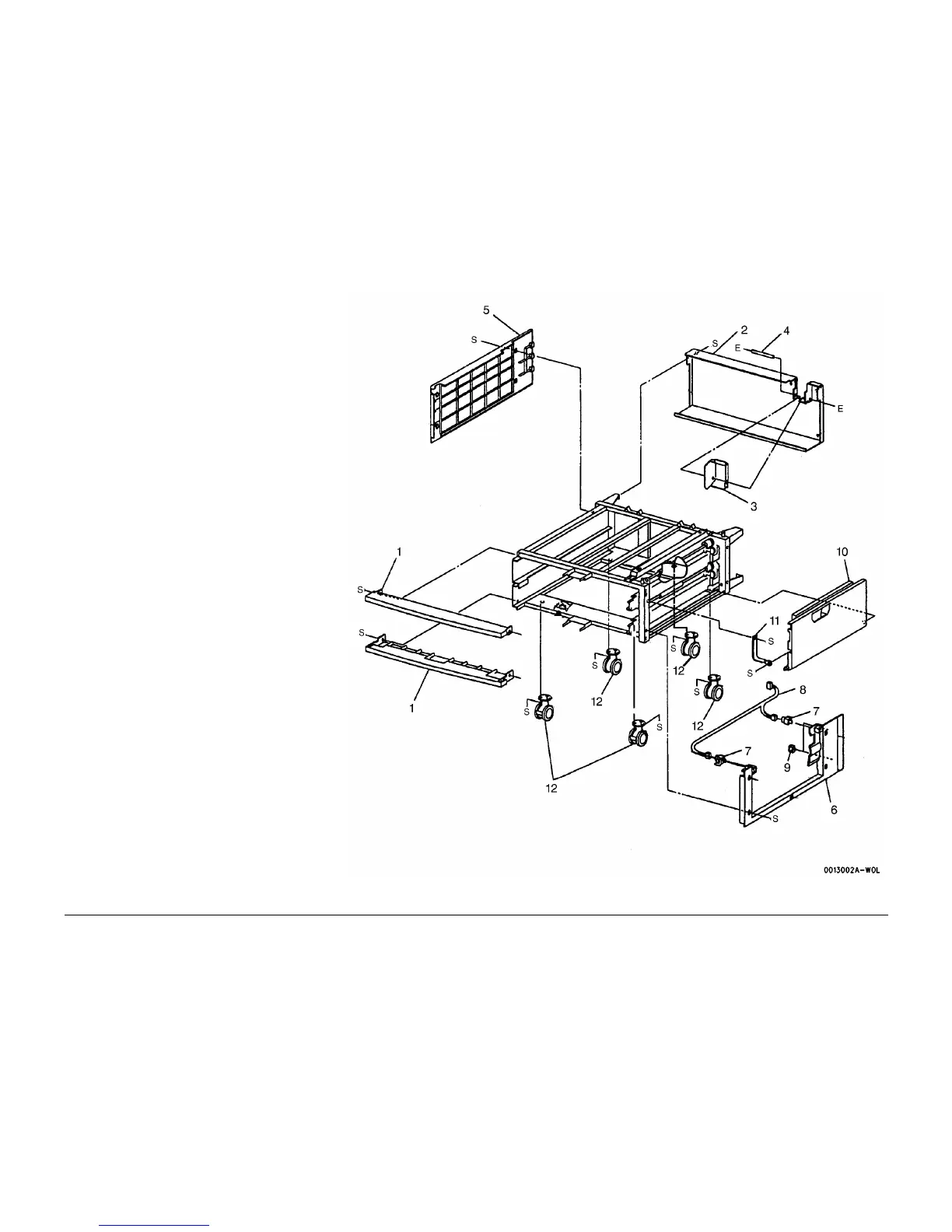

PL 13.2 Optional Feeder Assembly (2
of 9)
Item Part Description
1 802E05130 Feeder Front Cover
2 802E15720 Feeder Rear Cover
3 – Feeder Rear Harness Cover (Not
Spared)
4 – Shaft (Not Spared)
5 802E05191 Feeder Left Cover
6 802E15530 Feeder Right Cover
7 110E93440 Feeder Right Cover Interlock 1,
Feeder Right Cover Interlock 2
8 162K54131 Cover Interlock Harness
9 – Clamp (Not Spared)
10 – Feeder Chute (Not Spared)
11 830E19490 Feeder Chute Support
12 017K92350 Caster
