Phaser 790/DocuColor 2006
REP 8.22
Repairs and Adjustments
Initial Issue
REP 8.22 Feeder Drive Unit/Low Paper Sensor
Parts List on PL 13.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Feeder Rear Cover.

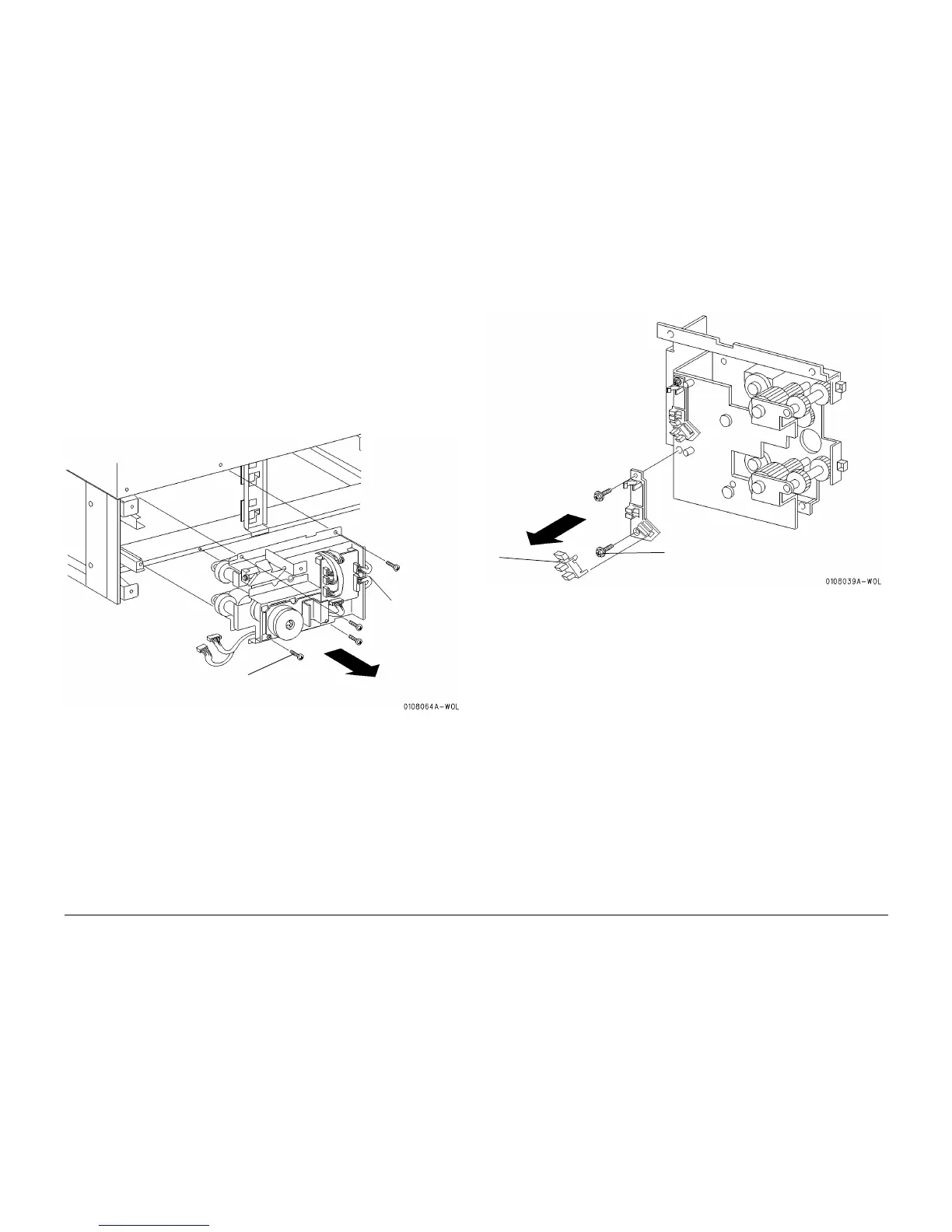

3. Remove the Feeder Drive Unit. (Figure 1)
Figure 1 Removing the Feeder Drive Unit
4. Remove the Low Paper Sensor. (Figure 2)
Figure 2 Removing the Low Paper Sensor
Replacement
1. Perform the removal procedure in reverse.
1
Take note of
their locations,
and disconnect
all connectors.
Release the
wires from the
clips
2
Remove the four screws and
remove the Feeder Drive Unit
1
Disconnect
the connector
2
Remove the two screws
and the Low Paper Sensor
To Next Page
